[10 inch/QLED] ATOTO S8 Pro S8G2104PR-A Double-DIN Andriod Car Stereo, Wireless CarPlay & Android Auto, Dual BT w/aptX HD, Split Screen Display, USB Tethering, VSV&LRV, Built-in 4G Cellular Modem

ATOTO S8 Pro Android Car Stereo System - Your Ultimate Driving Companion

Product Information

Note: DriveChat is continuously being developed, with updates released periodically.To get the latest DriveChat, please upgrade the app or system.

*The instructions in the package haven't yet updated the information of Wireless Android Auto but the head unit you get already supports this function

• Product Model: S8 Pro (Gen 2): Model No.: S8G2104PR-A (3GB+32GB), Mounting style: DAH10D (Double-DIN Adaptive Head-unit of 10.1-inch Display); The letter A in the model name means its 4G Cellular Modem supports main frequency bands of the major operators in from European & Asian & Oceania areas, so it may be incompatible with some other operators from North America areas; If you need another version (S8G2104PR-N) that works with operators from North America (USA/Canada/Mexico), check for alternative listings/ASIN;
• System Information: SoC Chip: UNISOC 7862 ARM Cortex Octa-Core (up to 1.8GHz) CPU with ARM Mali-G52 MP2 GPU, advanced 12nm manufacturing process. System Version: ATOTO AICE UI 11.0, which is developed & customized based on Android Q(10.0); System Language: English, German, French, Italian, Spanish, Portuguese, Japanese, Russian, Arabic, and other 12 languages.
• DSP / Pre-Amplifier: Built-in Digital Signal Processor allows you to set precise equalization, signal delay, bass boost, and bass filter. Preset 9 EQ Modes, and 32 adjustable frequency bands (16 bands for front and 16 for rear). Built-in Max 4*49W BTL Amplifier with RMS 4*29W (Vcc=14.4v, THD=10%);
• Bluetooth & Radio Tuner: Dual Bluetooth (BT1 5.0 & BT2 4.1). Bluetooth1 is Qualcomm Bluetooth 5.0 with aptX & aptX HD codec (SBC & AAC are also supported), and it supports HFP/HSP/A2DP/AVRCP/PBAP protocols; Radio tuner: Built-in high sensitivity FM/AM radio tuner with RDS/RBDS feature (and the radio station name will be displayed if available);

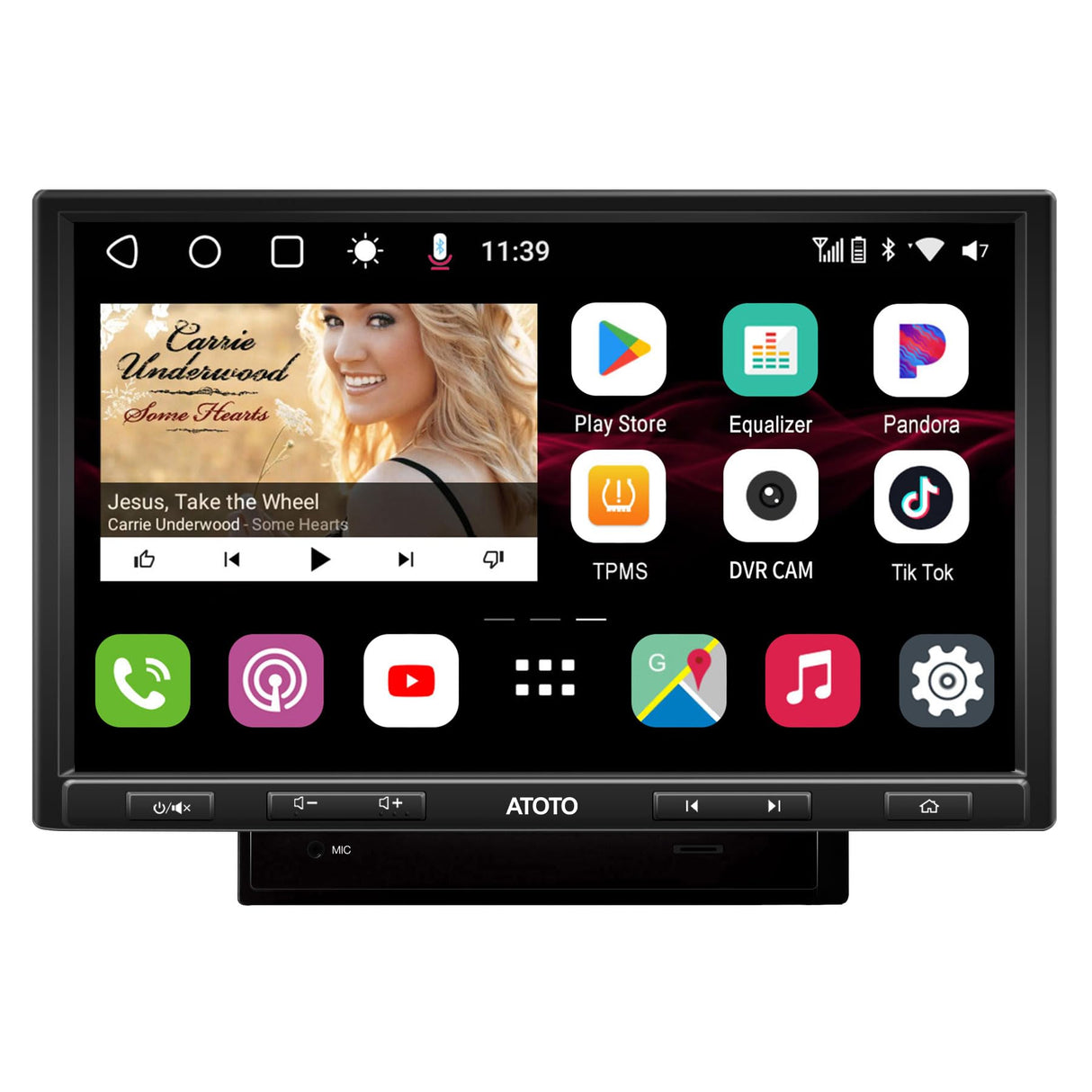

• Display: Full HD 10.1-inch 1280x720 5-Touch Capacitive Touchscreen with 600cd/m2 latest QLED screen (a type of quantum film LED-backlit LCD technology which can greatly improve the color effect, and can provide very clear and vivid picture quality. It also inherits the advantages of 178° full-viewing angle and high contrast of the IPS LCD);
• GPS/Navigation: Built-in GPS Receiver module with an external GPS antenna and Google Maps app is installed as the default GPS map.Users may need to download offline map data of a specific area for offline navigation if preferred. Other maps/navigation apps from Google Play Store can also be installed;
• Note: A few apps are not compatible with S8（Gen2）, eg. Netflix.
• Phone Mirroring & Phone Integration Link:Phone Mirroring - EasyConnect app pre-installed, it supports working with the latest iOS & Android devices (the system firmware update may be required). Two options (USB /WiFi) are all available for connecting to Android smartphones and iOS; Phone Integration Link (wired / wireless CarPlay；wired / wireless Android Auto) with the S8's built-in display and allows you to make phone calls, access your music, send and receive messages, get directions (Note: for the wired CarPlay and Android Auto Connection on ATOTO S8 series head-units, please use the factory/original USB cable that comes with the phone).
• Some Other features: Fast System Boot - Start the car & access system within 2 seconds; Split Screen Display - Run a navigation map and another apps (such as Youtube) on the screen simultaneously; Digital Photo Frame option - Users can put memorable photos in the specified Gallery Folder and let them play automatically on S8's HD big screen with only a tap; Speed Compensated Volume Control (SCVC)- When you increased in speed the headunit volume increased a certain percentage and when you slowed down, the volume dropped. This is to compensate for road noise; USB network tethering - sharing your phone data with S8 headunit via the USB connection (EasyConnect app); Live Rear View (LRV) - Now you can access rearview even if your vehicle in moving ahead. This could remove obstructions caused by passengers, headrests and the vehicle’s roof and rear pillars, increasing the field of view and allowing the driver an unimpeded view of the lanes behind and traditional blind-spots.

More than a car stereo - Install Android Apps, play music online, run online map & get real-time traffic, connect various external devices

S8 Pro provides 4 Methods for Internet Access-Wi-Fi/BT/USB Tethering & built-in 4G Cellular Modem:

1). Phone's cellular data

• S8 allows users to connect to the phone's hotspot via 2.4Ghz&5Ghz WiFi or Bluetooth tethering for internet access.
• Running online maps or streaming music online on Android car stereo do not need high bandwidth(less than 200kb/s), Bluetooth tethering connection is capable of dealing with such demands, with the advantage of less power consumption;
• USB network tethering is a newly introduced option by ATOTO, it allows users to share phone data with S8 via the USB connection. This could help save the phone battery, or even increase your phone battery level slightly; You only need to run the specific EasyConnect application in the background;

2). Built-in 4G Cellular Modem

• There is a SIM card slot with the unit, and it only takes Nano size. SIM with Data Plan is not included in the product package. Make sure S8 supports the frequency band you use.

Bluetooth chips inside, connect to more Bluetooth-based devices, customized Qualcomm Bluetooth with aptX HD audio codec and voice assistant interface

• Bluetooth 1 works as Bluetooth hands-free (call/answer) with A2DP streaming audio feature.
• Built-in Noise Cancellation Technology to help suppress background noise and echo feedback in a hands-free call. No more yelling!
• ATOTO S8 (Gen 2) Pro applies Qualcomm aptX HD codec, which was designed to answer the growing demand for high-resolution audio. This enhanced codec supports 24-bit music quality over Bluetooth. Listeners can hear even the smallest details in their music. Now, enjoy wireless HD audio easily with S8;
• The aptX HD feature requires the phone side also to support Bluetooth aptX HD to perform correctly; Users can check this on Qual-comm aptX HD at ATOTO: aptx.com/products/atoto-in-car-entertainment-system
• Bluetooth 2 not only works as Bluetooth tethering internet but also allows to connect to Bluetooth gamepad(for kids in rear seats), Bluetooth OBD2, Bluetooth TPMS, etc.;
