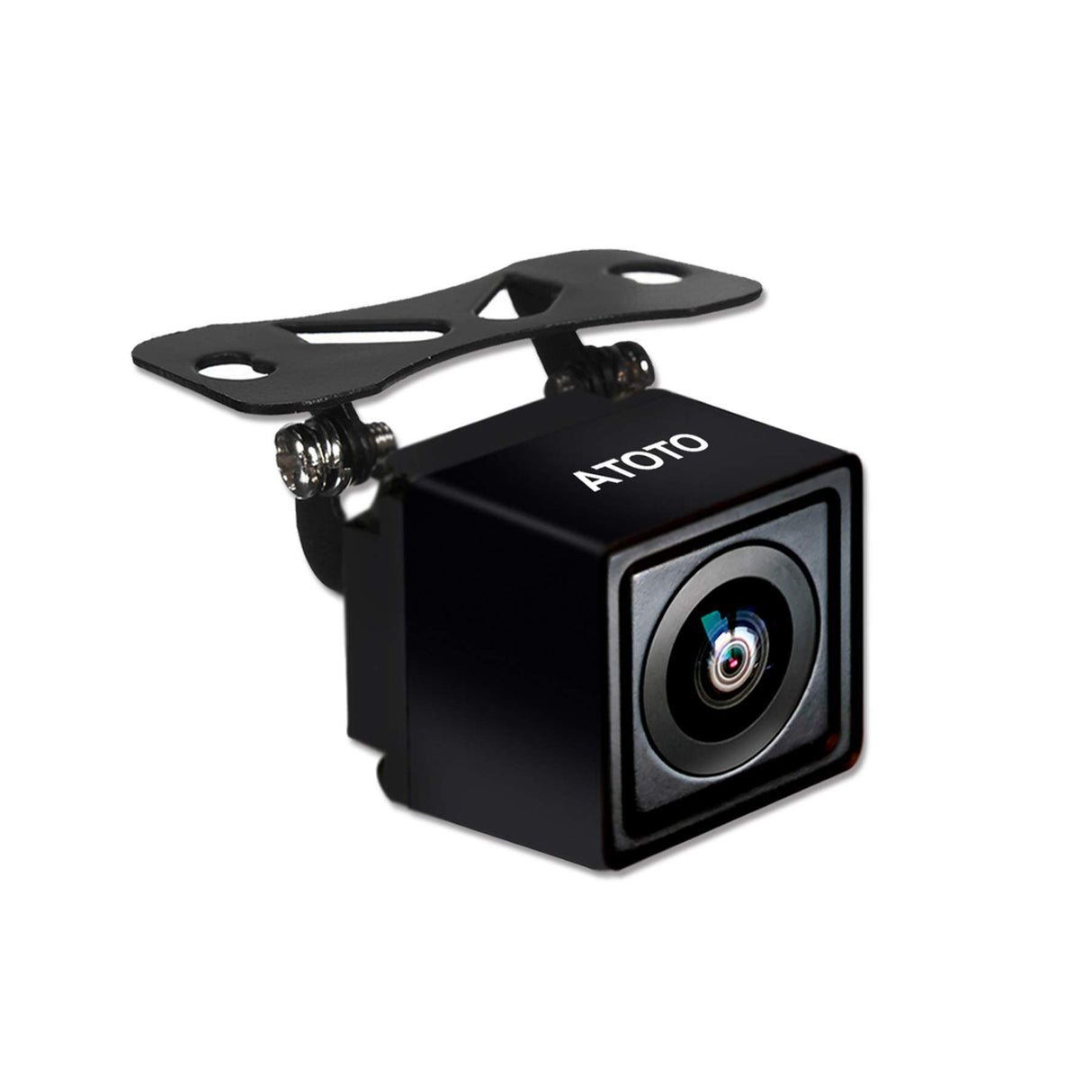

ATOTO AC-HD02LR 720P Rearview Camera with Live Rearview, HD Picture Quality, Night Vision/Waterproof, Compatible with ATOTO S8 /F7 /A6 /A5 /X10 Series. Not Compatible with P5/P8/P9

Name: ATOTO AC-HD02LR 720P Rearview Camera with Live Rearview, HD Picture Quality, Night Vision/Waterproof, Compatible with ATOTO S8 /F7 /A6 /A5 /X10 Series. Not Compatible with P5/P8/P9
Brand: Atoto
SKU: SHOP_GB:AC-HD02LR-EU06:AMZEU06:UK
Price: 34.9 GBP
Availability: InStock

£34.90 GBP ~~£43.90~~

Coupon

👈Extra 15% OFF（Accessories not available) 🔖 Code: ATOBFCM

30 Day Price Guarantee

30 Days Hassle-Free Returns
Shipping from UK Warehouse (3-7 Days Delivery)
Found a lower price? Contact us, and we’ll match it!

1 Year + 180 Days Warranty

We offer a comprehensive warranty on all of our products to give you peace of mind during use.

Warranty Period: This product comes with a 12-month standard warranty.
Extended Warranty: Purchasing on our official website allows you to register directly for an extended warranty, adding an extra 180 days of coverage.

For more details, please visit our [Warranty Policy].

After purchasing, please make sure to [register your product] to activate your warranty coverage.

Free Shipping

We offer free shipping on all orders, with delivery typically within 7 days.

Free Shipping: All orders are shipped free of charge and will arrive within 7 days.
Return Policy: If you're not completely satisfied with your purchase, you have 30 days to return or exchange the product.

For full details, please visit our [Shipping Policy] and [Return Policy].

Features

ATOTO AC-HD02LR 720P Rearview Camera with Live Rearview, HD Picture Quality, Night Vision/Waterproof, Compatible with ATOTO S8 /F7 /A6 /A5 /X10 Series. Not Compatible with P5/P8/P9

HD 720P Rear-view Backup Parking Assist Camera, which can output 720P HD video signal. Special wiring design plus system firmware support allows user to have a live rearview when vehicle is moving ahead

It only works on selected ATOTO car stereos (S8 /F7 /A6 /A5 /X10 Series) and the video image quality is much better than traditional cameras that output CVBS signal type. It is not compatible with other car stereo brands!

If you own ATOTO S8 (Gen2), and it comes with virtual surround view feature, we highly recommend ATOTO AC-HD03LR camera instead.

It does not work on the ATOTO P5, P8, P9 series. Besides, S8 models manufactured before Jan. 2021 (also known as S8 Gen 1) can support AC-HD02LR, but the system firmware update is required before the LRV feature can work properly.

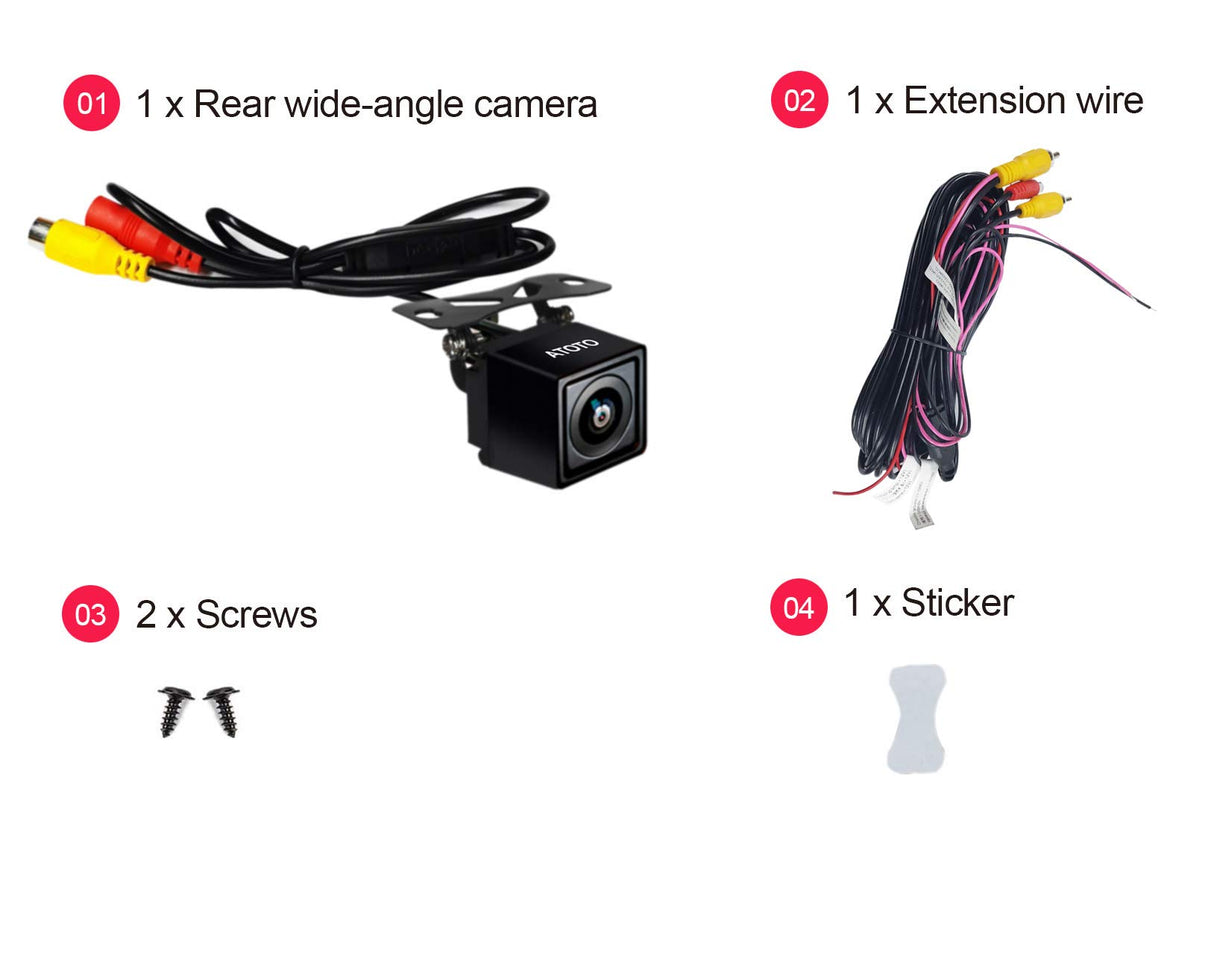

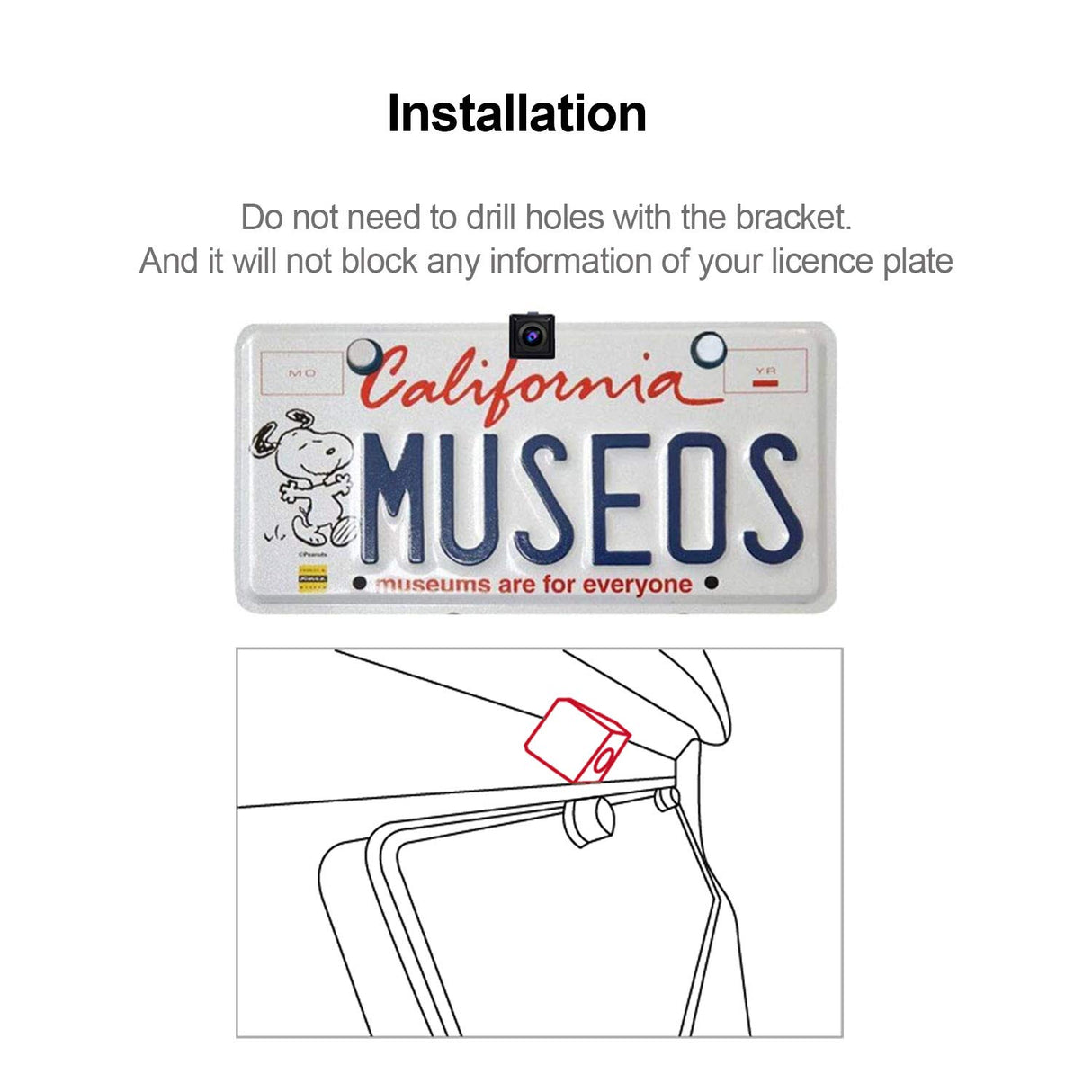

HD Rear View Backup Parking Assist Camera with Installation Cables. Easy to install: 2 Installation options, you could choose bracket mounting or flush mounting as per your case.

Specifications

Specification	Value
Host Technology Platform Name	F7-Pro
Host Technology Platform Code	F7
Version Configuration in English	Pro
Operating System Type	Linux
Operating system version	4.9
External SD storage support	Max 512GB
External USB storage support	Max 2TB
Main control chip model	LY8368
Installation Size Classification	Double-Din
Storage	NO
Memory	NO
Built-in communication module	NO
WIFI hotspot connection	NO
Screen material	IPS LCD
Default Bluetooth	BT 4.2, supports HFP,HSP,A2DP,AVRCP,PBAP; SBC Codec
Secondary Bluetooth	NO
Screen Size	7.0
Wired CarPlay	YES
Wireless CarPlay	NO
Wired Android Auto	YES
Wireless Android Auto	NO

Reviews (30)

Simple, Small and works.

I purchased ATOTO Reversing camera and ATOTO Head unit together. Instructions were good, all leads for my installation to standard ISO harness were in the box with alternatives for reversed ignition power and permanent feeds -and also those who are happy modifying Their cars wiring harness, (the bare wire brigade!)Had problem with a lead for camera, tech support quickly (a matter of hours!!) established purchase and problem and promised replacement. -Thanks Satori

Great addition to Ducato motorhome for safety

I loved how tiny the camera was and how much cable came with it. I used up almost all the 8m of cable on my 7m Ducato motorhome. I used the enclosed sticky pad to mount it just above the registration plate, then screwed it in with the screws provided. So it's there, solid as a rock, when I'm reversing or when I want to check who's behind me at any time, using the live rear view function. Great addition to my van.

Rear camera

Wired up today,good clear images worth the money

Amazing image clarity in low light and nighttime

This little camera is well worth the money and the image attached was taken in the evening. The quality and resolution in low light and nighttime is way ahead of other cameras I have used. Money well spent IMHO.

Night vision

The camera is good quality.It’s meant to have night vision.Day time the picture is good quality night vision rubbish.

1 2 3

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Applicable Headunit models:

AC-HD02LR: This AC-HD02LR works with A6 KarLink, A6 Performance, the F7 Series, S8Series and the X10 Series car stereos. It is NOT compatible with A6 Y, SA102, P5, P8, P8AI, P9 or any other car stereos. Besides, S8 models manufactured before Jan. 2021 (also known as S8 Gen 1) can support AC-HD02LR, but the system firmware update is required before the LRV feature can work properly. See the rearview camera comparison table below for more details.

Specifications：

·Product Model: AC-HD02LR ·Image sensor format: 1/2.9” CMOS · Pixels：1280(H)x720(V) · White balance: automatic · Backlight compensation: Yes · Noise reduction: 3D DNR · Video Frame rate: 720P@30FPS · Video Signal Out：Analogue HD signal, 1.0 Vp-p / 75Ω · Working Voltage: DC 12V · Working Current: 130mA～150mA · Working Temperature：-30℃～+80℃ (-22°F ～ 176°F) · Rear-view guideline: Not built-in, provided by Car stereo system · Waterproof Rate: IP67 · Night-vision: YES ·Lens Viewing Angle: 150 Degrees

· Powering method: powered by ATOTO Headunit or vehicle's Accessory (ACC).

· Rearview Image Access: (1).When vehicle is in reverse gear, the rearview will display on the headunit display; (2). Manually run Rearview app when vehicle is moving ahead, or use steering wheel keys (if applicable). For selected S8 (Gen2) modes that come with Hand Gesture operation, gesture control is available;

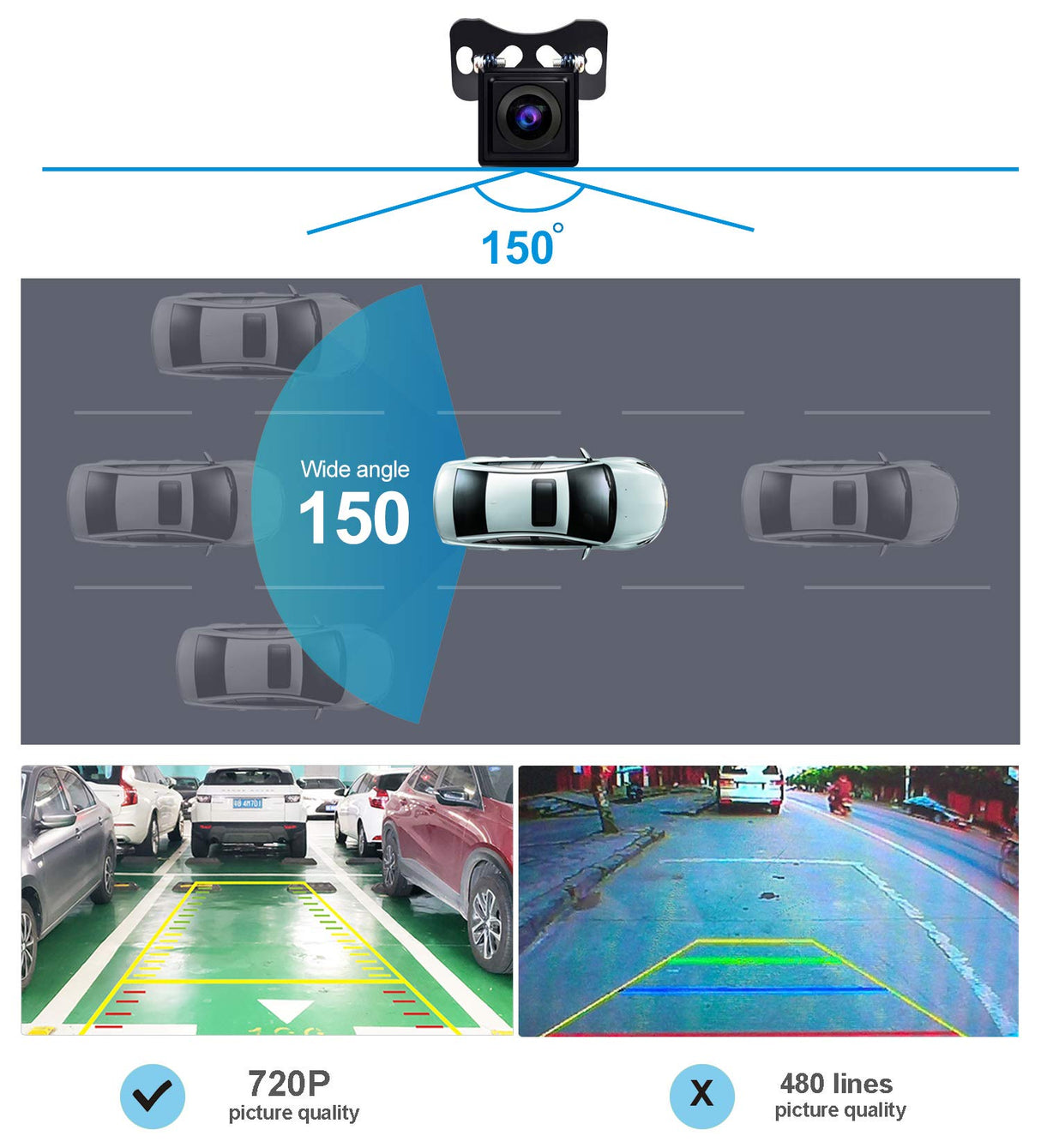

HD 720P Rear-View Video Signal Output

Traditional car stereos can only take and display 400-600 lines CVBS rearview video signal. Working with specific ATOTO head-unit models, The AC-HD02LR can output an HD 720P rearview video signal, and you can have an HD color display on the ATOTO headunit. Say goodbye to the snowy static picture screen when reversing a vehicle.

How does the LRV feature Work?

ATOTO LRV (Live Rear-View) technology

Live RearView (LRV) Feature - Access Rearview even if the vehicle is moving ahead. This could remove obstructions of passengers, headrests, and the vehicle’s roof and rear pillars, increasing field of view and allowing the driver an unimpeded view of the lanes behind and traditional blind-spots. To use this feature, special wiring is required, see below for reference.

Easy Installation, compatible with selected ATOTO S8 (Gen2) models

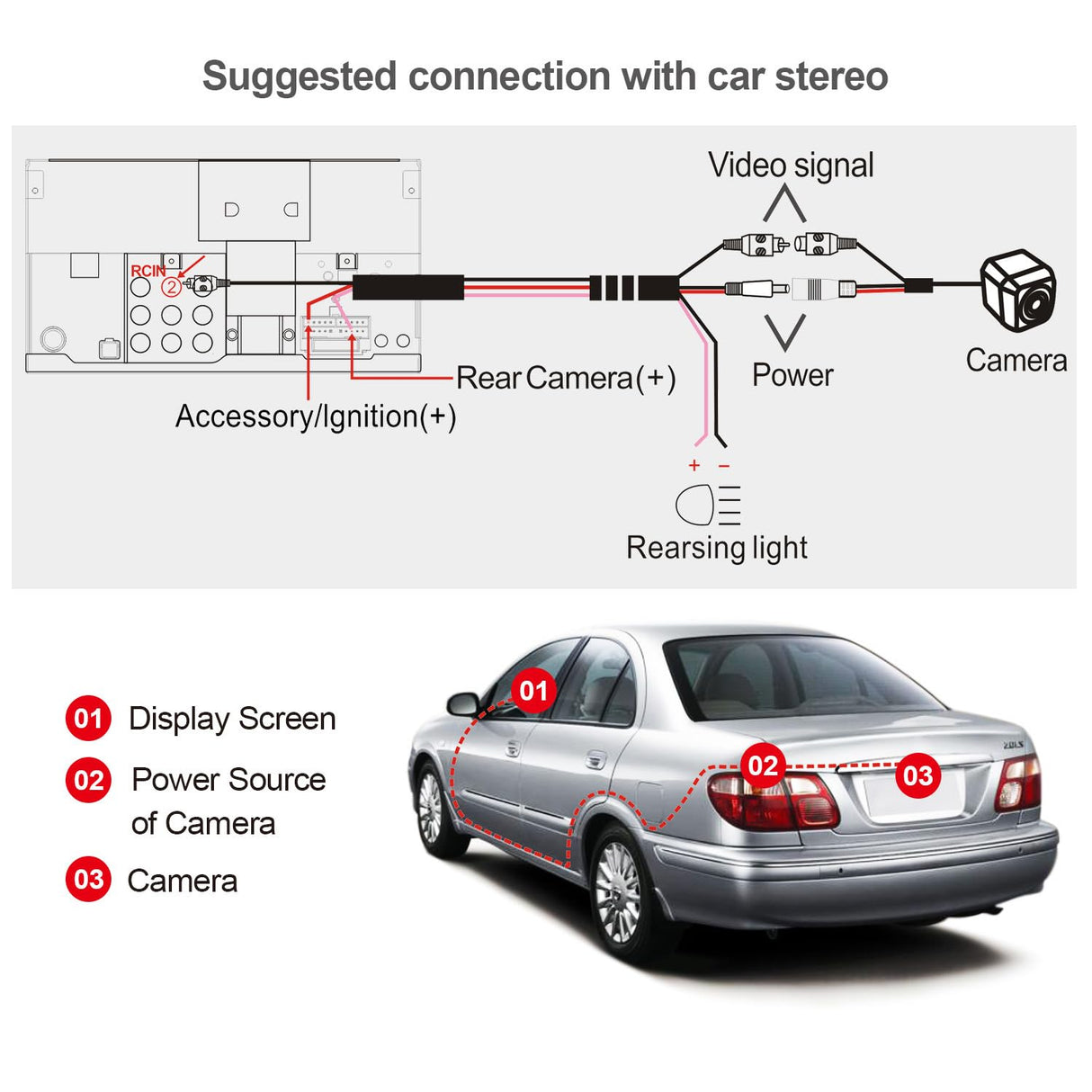

Unlike traditional backup cameras that are powered up by reversing lamp of the vehicle, AC-HD02LR is rewired to be powered by a head-unit or vehicle's ACC power (Accessory) wire. And built-in hardware in selected ATOTO head-unit is required to make sure camera's video signal can be read and displayed without putting your vehicle into reverse gear.

	AC-HD02LR Rearview Camera	AC-HD03LR Rearview Camera
Product Model	AC-HD02LR	AC-HD03LR
Lens Viewing Angle	150 Degrees	180 Degrees, supporting VSV
Pixels	1280(H)x720(V) (HD 720P)	1280(H)x720(V) (HD 720P)
Live Rearview (LRV) Wiring Support	YES	YES
Compatibility with A6 PF	YES	NO
Compatibility with A102/YS102SL	NO	NO
Compatibility with F7	YES	NO
Compatibility with S8	YES	YES
Waterproof	YES	YES
Night-vision	YES	YES
