ATOTO S8 Premium Double-DIN Android Car Stereo, Wireless CarPlay & Android Auto, Dual Bluetooth w/aptX HD, 7inch QLED Display,Split Screen, HD Rearview with LRV, USB tethering,SCVC and More, S8G2B74PM

ATOTO S8 Premium Android Car Stereo system - Your Versatile Driving Companion

Product Information

Note: DriveChat is continuously being developed, with updates released periodically.To get the latest DriveChat, please upgrade the app or system.

*The instructions in the package haven't yet updated the information of Wireless Android Auto but the head unit you get already supports this function

• Product Version: S8 Premium; Model No: S8G2B74PM (3GB/32GB); Mounting style: UDH07D(Double-DIN Adaptive Head-unit of 7-inch Display); This model adopts the touch key.
• System Information. SoC Chip: UNISOC 7862 ARM Cortex Octa-Core (up to 1.8GHz) CPU with ARM Mali-G52 MP2 GPU, advanced 12nm manufacturing process. System Version: ATOTO AICE UI 11.0, which is developed & customized based on Android Q(10.0); System Language: English, German, French, Italian, Spanish, Portuguese, Japanese, Russian, Arabic, Polish, Korean, Dutch, Thai, Turkish, Ukrainian, Hebrew, Greek, Hungarian, Indonesian, Vietnamese and Chinese.
• DSP / Pre-Amplifier: Built-in Digital Signal Processor allows you to set precise equalization, signal delay, bass boost, bass filter. Preset 9 EQ Modes, and 32 adjustable frequency bands (16 bands for front and 16 for rear). Built-in Max 4*49W BTL Amplifier with RMS 4*29W (Vcc=14.4v, THD=10%);
• Bluetooth & Radio Tuner: Dual Bluetooth. Bluetooth 1 is Qualcomm Bluetooth with aptX & aptX HD codec (SBC & AAC are also supported), and it supports HFP/HSP/A2DP/AVRCP/PBAP protocols; Radio tuner: Built-in high sensitivity FM/AM radio tuner with RDS feature (and the radio station name will be displayed if available);
• Display: Full HD 7-inch 1024*600 5-Touch Capacitive Touchscreen with 600cd/m2 latest QLED screen;
• GPS/Navigation: Built-in GPS Receiver module with an external GPS antenna and Google Maps app is installed as the default GPS map.Users may need to download offline map data for a specific area for offline navigation if preferred. Other maps/navigation apps (Waze, HereWeGo) from Google Play Store can also be installed;
• Phone Mirroring & Phone Integration Link:Phone Mirroring - EasyConnect app pre-installed, and it supports working with the latest iOS & Android devices (system firmware update may be required). Two options (USB /WiFi) are all available for connecting to Android smartphone and iOS phone;Phone Integration Link (wired / wireless CarPlay；wired / wireless Android Auto ) - It seamlessly integrates your smartphone (iOS & Android) with the S8's built-in display, allowing you to make phone calls, access your music, send and receive messages, get directions (Note: for the wired CarPlay and Android Auto Connection on ATOTO S8 series head-units, please use the factory/original USB cable that comes with the phone).
• Some Other features: Fast System Boot - Start the car & access system within 2 seconds; Split Screen Display - Run a navigation map and another app (such as Youtube) on the same screen simultaneously; Digital Photo Frame option - Users can put memorable photos in the specified Gallery Folder and let them autoplay on S8's HD big screen with only a tap (or a hand gesture); Speed Compensated Volume Control (SCVC)- When you increased in speed the headunit volume increased a certain percentage and when you slowed down, the volume dropped. This is to compensate for road noise; USB network tethering - sharing your phone data with S8 headunit via USB connection (EasyConnect app); Live RearView (LRV) - Now you can access rearview even if your vehicle in moving ahead. This could remove obstructions caused by passengers, headrests and the vehicle’s roof and rear pillars, thus increasing the field of view and allowing the driver an unimpeded view of the lanes behind and traditional blind-spots

Inputs,Outputs & Slots

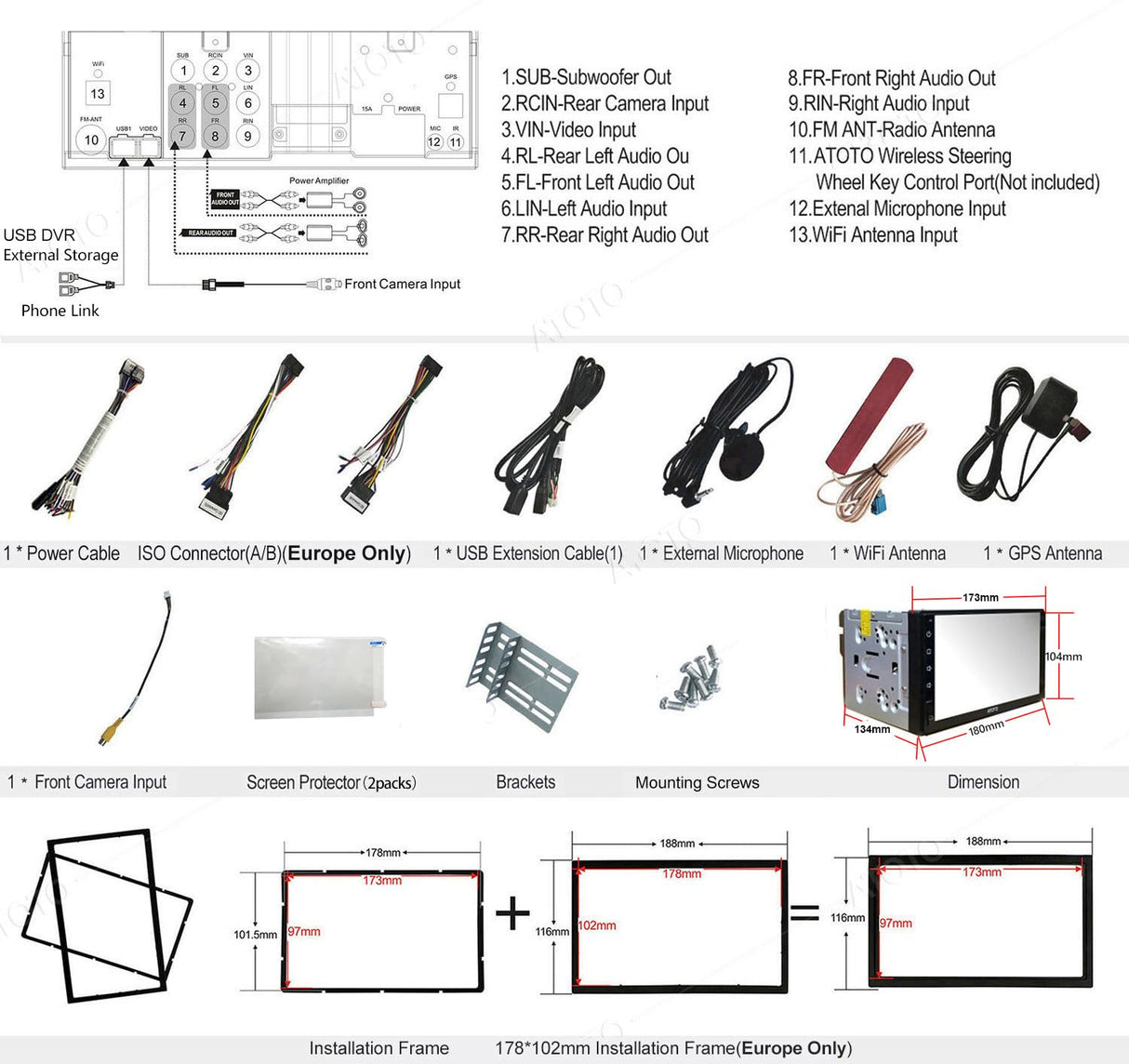

• AUX Audio(L/R) /Video input; FCAM front camera video input; Rearview camera input (S8 can process 720P HD video signal. So you can connect a specific HD rearview camera to S8 for 720P video display); 4-CH RCA Audio Out (2v) for connecting to factory/aftermarket amplifier; Separate Sub-woof Out (0.8v); For S8 Premium, there is no Optical SPDIF Out, or Quick Charge interface; To connect to a headrest monitor, you need to get an extra ATOTO USB-to-HDMI or USB-to-RCA video output adaptor(not included)
• One Micro SD slot - to store media files, and can read up to 512GB storage card; (2 USB) interfaces for data communication, including reading USB Drive (read unlimited external storage devices, including portable SSD) & optional USB devices, and connecting phone for Mirror casting/EasyConnect or Phone Integration Link;

Vehicle Fit:Most dashboard mounting frame suppliers may provide a double-DIN mounting frame with 174 mm * 98 mm opening. ATOTO is the first one to bring an Android 7-inch car stereo with a minimum 173 mm * 97 mm front panel dimension. An extra frame adapter is also included in the package to extend its size to 178 mm * 101.5 mm;.

Notice: Optional parts for working with ATOTO S8 Premium (sold separately): 1. ATOTO AC-44P2 1080P On-dash DVR Camera; 2. ATOTO AC-44F5 Steering wheel IR Remote; 3.ATOTO AC-4450 Bluetooth OBD II scanner /Code Reader; 4. ATOTO AC-HD02LR HD Live Rear-view Camera or AC-HD03LR Wide-angle HD rearview camera (for Virtual Surround View); 5. ATOTO AC-UTP1 USB TPMS (Tire Pressure Monitoring Sensor); 6. ATOTO Video Output Adaptor (AC-AHV68: USB to HDMI adaptor; AC-AHV48: USB To RCA adaptor). Some of them must be connected before installation; All optional accessories can be found here:amazon. com/atoto;

More than a car stereo - Install Android Apps, play music online, run online map & get real-time traffic, connect external devices to expand functions

Access to the internet and install Android apps from Google Play Store

• S8G2B74PM provides 3 options for internet access.(1). Connect to the phone's hotspot via 2.4Ghz & 5Ghz WiFi; (2). Connect to Phone Bluetooth and enable Bluetooth tethering option, (3). Use Phone data via USB network tethering feature (an exclusive feature from ATOTO. EasyConnect app is required );
• Running online maps or streaming music online on Android car stereo do not need high bandwidth(less than200kb/s), Bluetooth tethering connection is capable of dealing with such demand.
• Compared with WiFi connection, Bluetooth tethering has lower power consumption, so phone battery will last much longer while Bluetooth tethering is enabled;
• WiFi connection is easier as it requires only one step - enable your phone's WLAN hotspot; Bluetooth connection requires 2-3 steps;
• USB network tethering is a newly introduced option by ATOTO, and it allows users to share phone data with S8 via USB connection. This could help save phone battery, or even increase slightly; You only need to run the specific EasyConnect application in the background;
• More than 1000 apps from Google Play Store have been tested installable on ATOTO S8 Series, especially media/entertainment apps and navigation apps in the category of "Auto & Vehicles". Very few app developers may specify devices/system environments that are allowed to install or run their apps, which results in the inability to install or run on an Android car stereo.
• Note: A few apps are not compatible with S8（Gen2）, eg. Netflix.

Dual Bluetooth chips inside, connectable to more Bluetooth-based devices, customized Bluetooth w/ aptX HD audio codec and voice assistant interface

• Bluetooth 1 works as Bluetooth hands-free (call/answer) with A2DP streaming audio feature. Contacts/recent records will be synchronized once the smartphone is connected. Supports "Quick Search" and "Add to Favorites" for quick dialing!
• Built-in Noise Cancellation Technology helps suppress background noise and echo feedback in a hands-free call. You don't have to yell at the car stereo to talk with the other one.
• ATOTO S8 Premium applies Qual-comm aptX HD codec, which was designed to answer the growing demand for high-resolution audio. This enhanced codec supports 24-bit music quality over Bluetooth. This means listeners can hear even the smallest details in their music. Even though the average Bluetooth streaming solution is enough for the majority. For these hypercritical people (who are more obsessed with HD audio quality), there is still regret. Now, enjoy wireless HD audio easily with S8;
• aptX Low Latency audio delivers sound in sync with what’s on-screen, reduces delay, and improves end-to-end speed of the audio transmission (reduce the delay from 120ms to a minimum of 40ms!), resulting in high quality, synchronized sound, so you never miss a beat.
• The aptX HD feature requires the phone side also to support Bluetooth aptX HD to perform correctly; Users can check this on Qual-comm aptX HD at ATOTO: aptx.com/products/atoto-in-car-entertainment-system
• The Bluetooth 2 not only works as Bluetooth tethering internet but also allows to connect to Bluetooth gamepad(for kids in rear seats), Bluetooth OBD2, Bluetooth TPMS, etc.;
• Because of dual Bluetooth inside, the system allows user to connect up to 3 devices simultaneously(one for audio, two for data communication).
• The customized Bluetooth in S8 allows to wake up the phone's voice assistant (Siri, Google Assistant) via Bluetooth connection. So users can use a specific button on the screen, steering wheel or ATOTO AC-44F5 wireless remote to send messages, make calls, and control music with your voice. Much safer, much convenient;
