ATOTO S8 Pro Android Car Stereo System: Your Ultimate Driving Companion

Product Information

Note: DriveChat is under continuous development, with updates released periodically. To get the latest version of DriveChat, update the app or the system.

*The instructions in the package have not yet updated the information about Wireless Android Auto, but the head unit you receive already supports this feature.

• Product Model:S8 Pro (Gen 2); Model: S8G2104PR-A (3GB +32GB), Mounting Style: DAH10D (10.1-inch display double-DIN adaptive head unit); The letter A in the model name means its 4G cellular modem supports the main frequency bands of major operators in European and Asian areas, thus it may be incompatible with other operators in North American areas; If you need another version (S8G2104PR-N) that works with operators in North America, check alternative listings/ASIN;
• System Information:SoC Chip: UNISOC 7862 ARM Cortex Octa-Core CPU (up to 1.8 GHz) with ARM Mali-G52 MP2 GPU, advanced 12nm manufacturing process. System Version: ATOTO AICE UI 11.0, developed and customized based on Android Q(10.0); System Language: Italian, English, German, 18 other languages.
• DSP / Preamp:the built-in digital signal processor allows setting precise equalization, signal delay, bass enhancement, bass filter. Preselect 9 EQ modes and 32 adjustable frequency bands (16 bands for the front and 16 for the rear). Built-in maximum BTL amplifier 4 * 49 W with RMS 4 * 29 W (Vcc = 14.4 V, THD = 10%);
• Bluetooth and Radio Tuner:dual Bluetooth (BT1 5.0 and BT2 4.1). Bluetooth1 is Qualcomm Bluetooth 5.0 with aptX and aptX HD codecs (SBC and AAC are also supported) and supports HFP/HSP/A2DP/AVRCP/PBAP protocols; Radio tuner: built-in high sensitivity FM/AM radio tuner with RDS/RBDS function;
• Display:10.1-inch 5-touch capacitive touchscreen 1280x720 Full HD with the latest 600 cd/m2 QLED screen (a type of quantum dot film LED-backlit LCD technology that can significantly improve color effect and provide very clear and vivid picture quality. It inherits the advantages of the full 178° viewing angle and high contrast of IPS LCD);
• GPS / Navigation: the integrated GPS receiver module with an external GPS antenna and the Google Maps app is installed as the default GPS map. Users may need to download offline map data of a specific area for offline navigation, if they prefer.
• Phone mirroring and integration link: Phone mirroring - EasyConnect app pre-installed and supports operation with the latest iOS and Android devices (system firmware update may be required). Two options are available (USB / Wi-Fi) for connecting to Android smartphones and iPhone; Phone Integration Link (Wired/wireless CarPlay; Wired/wireless Android Auto integrates your smartphone (iPhone and Android) seamlessly with the S8's display and controls via USB, allowing you to make phone calls, access your music, send and receive messages, and receive directions. Wireless CarPlay is available on S8 Pro, Ultra, and Ultra Plus;
• Some other features:system quick start; Split screen; Digital Photo Frame option: users can insert memorable photos into the specified Gallery folder and automatically play them on the S8's large HD screen with a single touch; Speed Compensated Volume Control (SCVC)- As speed increases, the volume of the head unit increases by a certain percentage. This is to compensate for road noise; USB network tethering: sharing phone data with the S8 head unit via USB connection; Live Rear-View (LRV) - Now you can access the rear view even if your vehicle is moving forward. This may remove obstacles caused by passengers, headrests, the roof, and the vehicle's rear pillars, expanding the field of view.

Inputs, outputs, and slots

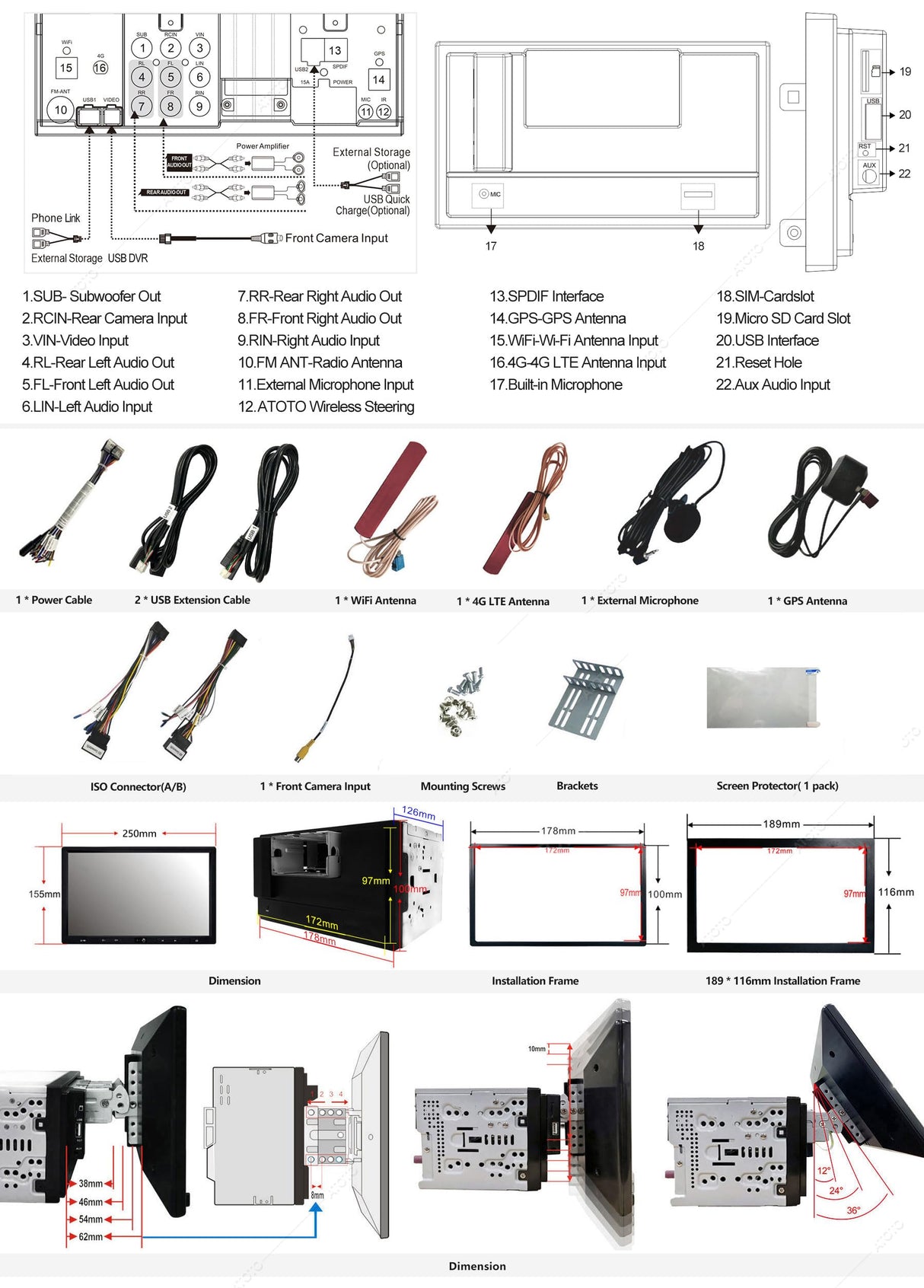

• AUX audio input (L/R)/video; Front camera video input FCAM; Reverse camera input; 4-channel RCA audio output (2v) for connection to factory/aftermarket amplifier; Separate sub-woof output (0.8V); For S8 Pro, Optical SPDIF Out and Quick Charge interfaces are available; To connect to a headrest monitor, an additional ATOTO video output adapter from USB to HDMI or USB to RCA (not included) is required;
• One Micro SD slot - for storing media files and can read up to 512 GB memory card; 5 USB interfaces: 4 for data communication, including reading USB drives (reading unlimited external storage devices, including portable SSD) and optional USB devices and phone link for Mirror casting / EasyConnect or Phone Integration Link; 1 USB for quick phone charging.

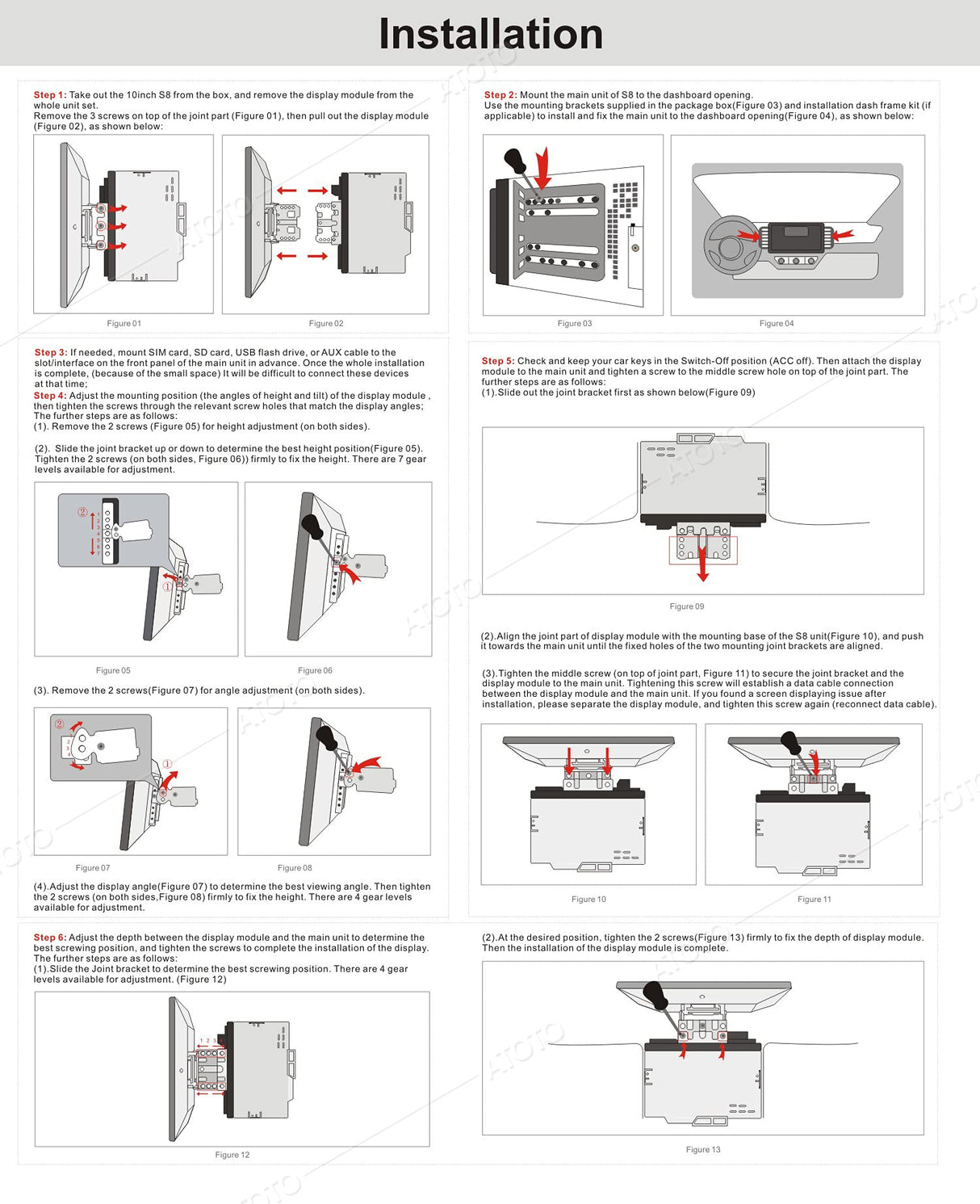

Important: during the installation of the screen module, ensure no screw holes are left open and tighten the screws, otherwise there might be problems with the screen module (stripes, screen freezing, blurred screens, etc..).

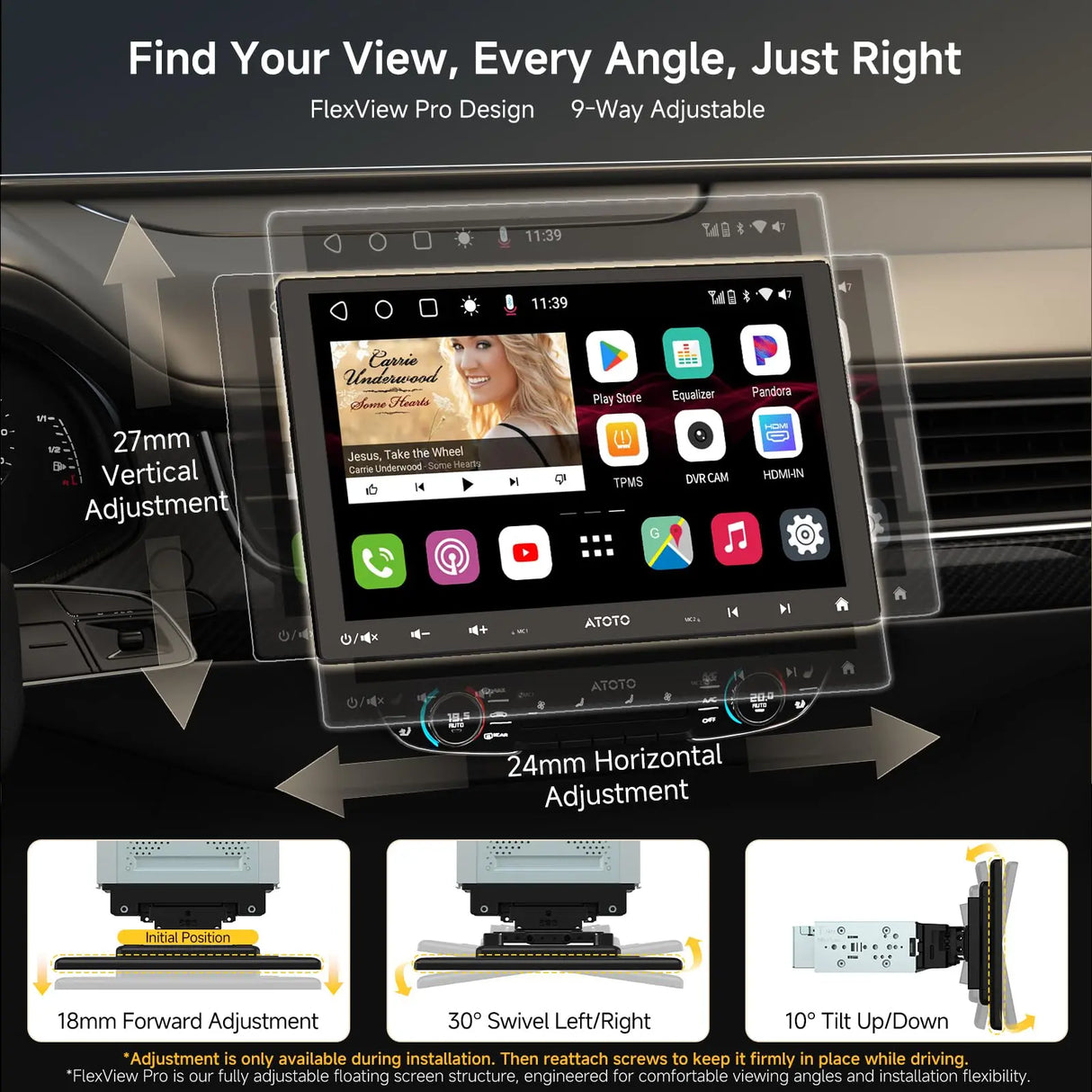

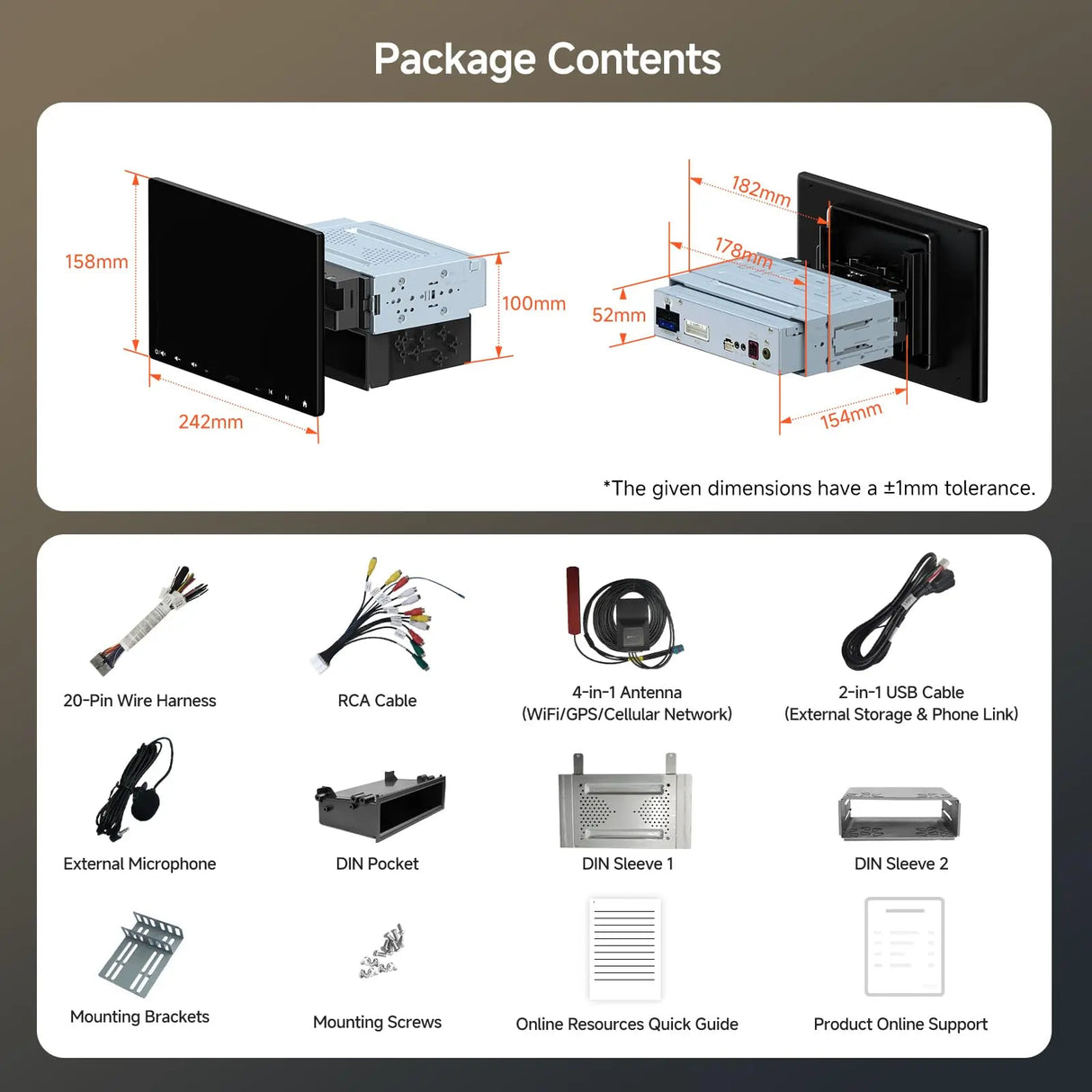

Vehicle Fitment:For ATOTO S8 with 10-inch floating display (DAH10D), the front panel of its double DIN base measures 178x100 (mm) and the 10.1-inch screen size is 252x155 (mm). The 10.1-inch floating display stands out from its double DIN base and allows users to adjust the height and viewing angle (up or down). Although, for some vehicles, the edge of the large screen may block the air vent, emergency switch button, or other buttons, causing inconvenience.

More than a car radio: install Android apps and connect to various external devices to expand functions

S8 Pro provides 4 methods for Internet access: Wi-Fi / BT / USB Tethering and built-in 4G cellular modem:

1). Phone cellular data

• S8 allows users to connect to the phone's hotspot via 2.4Ghz and 5Ghz WiFi or Bluetooth tethering for Internet access.
• Running online maps or streaming online music on the Android car stereo does not require high bandwidth (less than 200kb/s), and the Bluetooth tethering connection can handle such demand.
• Compared to WiFi connection, Bluetooth tethering has lower power consumption, so the phone's battery will last much longer while Bluetooth tethering is enabled;
• The WiFi connection is simpler as it requires only one step: enable your phone's WLAN hotspot and the WiFi connection is completed within 2-4 seconds; Bluetooth connection requires 2-3 steps;
• USB network tethering is a newly introduced option by ATOTO that allows users to share phone data with S8 via USB connection. This could help save the phone's battery or even slightly increase it; Simply run the specific EasyConnect application in the background;

2). Built-in 4G cellular modem

• There is a SIM card slot with the unit and it only requires Nano size. The SIM with Data Plan is not included in the product package
• The built-in 4G LTE modem module works with the frequency bands supported by most carriers. The supported frequency bands are: 2G: GSM 850, GSM900, GSM1800, GSM1900; 3G WCDMA: B1, B2, B5, B8; 4G: B1, B2, B3, B5, B7, B8, B19, B20, B25, B26, B28A, B28, B34, B38, B39, B40, B41;
• Only carriers that support the above-listed bands can allow S8 to access the network. Even if the frequency bands in the above list are supported, if the carrier's communication base station does not cover the places where your vehicle is located, S8 will not be able to access it.
• You can visit Wikipedia to learn more about the LTE bands supported by local carriersInternational buyers must check the compatibility of frequency bands with local carriers/operators before placing the order.

Install countless Android apps from Google Play Store

• More than 1000 installable Google Play Store apps have been tested on the ATOTO S8 series, particularly multimedia/entertainment and navigation apps in the "Auto & Vehicles" category. Very few app developers can specify devices/system environments for which installation or execution of their apps is allowed, resulting in the inability to install or run on any Android car stereo.

Note: Some apps are not compatible with S8 (Gen2), for example, Netflix.

Versatile connectivity - ATOTO S8 Pro has many custom inputs and outputs to work better in a vehicle.

• Connect to a specific 1080P USB DVR camera on the dashboard for video preview and playback;
• Connect to a specific ATOTO USB TPMS tire pressure monitoring system. When one or more tires are deflated, an alert will appear on the S8 screen and even emit a beep as a reminder;
• Connect to a reverse camera with CVBS and HD video signal output for safe parking;
• Connect to your Android/iOS smartphone via USB/WiFi and use EasyConnection to cast what's displayed on your phone to the S8 screen;
• Connect to your Android/iOS smartphone via USB to perform the iPhone CarPlay/Android Auto function, which perfectly integrates your smartphone (iPhone and Android) with the built-in S8 display and allows you to make phone calls, access your music, send and receive messages, get directions; Wireless CarPlay connection is available in S8 Pro, Ultra, and Ultra Plus versions.
• Connect to an OBD II diagnostic scanner/engine code reader via Bluetooth; Compared to single Bluetooth, dual Bluetooth makes communication tasks between multiple Bluetooth connections more balanced and stable.
• Connect the phone to the dedicated Fast Charging interface, S8 will quickly charge the phone's battery.
• Connect to headrest monitors using the ATOTO USB video output adapter (AC-AHV68: USB to HDMI adapter; AC-AHV48: USB to RCA adapter; both sold separately) and what is displayed on the S8 can be synchronized with the headrest monitors.

Warning:

• Optional parts for working with ATOTO S8 Pro (sold separately): 1. ATOTO AC-44P2 1080P dashboard DVR camera; 2. ATOTO AC-44F5 steering wheel IR remote control; 3. ATOTO AC-4450 Bluetooth OBD II scanner/code reader; 4. ATOTO AC-HD02LR HD Live Rearview Camera or AC-HD03LR HD Wide-angle Rearview Camera (for Virtual Surround-View and live rearview); 5. ATOTO AC-UTP1 USB TPMS (tire pressure monitoring sensor); 6. ATOTO video output adapter (AC-AHV68: USB to HDMI adapter; AC-AHV48: USB to RCA adapter). 7. ATOTO AC-HAV50 HDMI to AHD video converter, HDMI 1.4 supported. Compatible with Play Station game consoles, TV Box, and other devices with HDMI output. 8. ATOTO CS-101SW 10" Slim Amplified Subwoofer, 400 Watt peak maximum power, 150 Watt RMS maximum power, with low and high-level inputs and remote bass control, compatible with most vehicle models.
• Some of them need to be connected before installing the S8; All optional ATOTO accessories can be found here: amazon.it/atoto;

Dual Bluetooth chip inside, connectable to multiple Bluetooth-based devices

• Bluetooth 1 works as hands-free Bluetooth (call/answer) with A2DP audio streaming function. Contacts/recent records will be synced once the smartphone is connected. Supports "Quick Search" and "Add to Favorites" for quick dialing!
• Built-in noise cancellation technology to help suppress background noise and echo feedback in a hands-free call. You don't have to shout at the car radio to speak with the other party.
• ATOTO S8 (Gen 2) Pro applies Qualcomm aptX HD codec, designed to meet the growing demand for high-resolution audio. This advanced codec supports 24-bit music quality via Bluetooth. This means listeners can hear even the finest details in their music. While the average Bluetooth streaming solution suffices for most, for those hyper-critical individuals (who are more obsessed with HD audio quality), there was regret. Now, easily enjoy wireless HD Audio with S8;
• Low latency aptX audio offers sound synchronized with what's on screen, reduces delay and improves end-to-end transmission speed (from 120ms to 40ms!), resulting in high-quality synchronized sound, so you never miss a beat.
• The aptX HD function requires that the phone also supports Bluetooth aptX HD to work correctly; Users can check it on the Qualcomm aptX HD ATOTO website: aptx[d0t]com/products/atoto-in-car-entertainment-system.
• Bluetooth 2 not only functions as Bluetooth Internet tethering but also allows connection to a Bluetooth gamepad (for kids in the back seats), Bluetooth OBD2, Bluetooth TPMS, etc.;
• Thanks to the dual Bluetooth inside, the system allows the user to connect up to 3 devices simultaneously (one for audio, two for data communication).
• The customized Bluetooth in S8 allows reactivation of the phone's voice assistant (Siri, Google Assistant) via Bluetooth connection. So users can use a specific button on the screen, the steering wheel, or the ATOTO AC-44F5 wireless remote to send messages, make calls, and control music with your voice. Much safer, very convenient;
