ATOTO S8 Pro Android Car Radio System - Your Ultimate Driving Companion

Product Information

*Note: DriveChat is continuously being developed with regular updates. To get the latest version of DriveChat, please update the app or the system.

*The instructions in the package have not yet updated the information about wireless Android Auto, but the car radio you receive already supports this feature.

• Product Model:S8 Pro (Gen 2): Model No.: S8G2104PR-A (3GB+32GB), Mounting style: DAH10D (Double-DIN Adaptive Head-Unit with 10.1-inch display); The letter A in the model name means that its 4G cellular modem supports the main frequency bands of major operators in European and Asian areas, so it may not be compatible with some other operators from North American areas. If you need a different version (S8G2104PR-N) that works with North American carriers, search for alternative listings/ASIN.
• System Information:SoC Chip: UNISOC 7862 ARM Cortex Octa-Core (up to 1.8 GHz) CPU with ARM Mali-G52 MP2 GPU, advanced 12nm manufacturing process. System Version: ATOTO AICE UI 11.0, which was developed and customized based on Android Q(10.0); System language: Italian, English, German, plus 18 more languages.
• DSP / Pre-Amplifier:With the built-in digital signal processor, you can precisely adjust equalization, signal delay, bass boost, and bass filter. Preset 9 EQ modes and 32 adjustable frequency bands (16 bands for front and 16 for rear). Built-in Max 4*49W BTL amplifier with RMS 4*29W (Vcc = 14.4V, THD = 10%);
• Bluetooth & Radio Tuner:Dual Bluetooth (BT1 5.0 & BT2 4.1). Bluetooth1 is QCM Bluetooth 5.0 with aptX and aptX-HD codec (SBC and AAC are also supported) and supports the HFP/HSP/A2DP/AVRCP/PBAP protocols; Radio Tuner: Built-in highly sensitive FM/AM radio tuner with RDS/RBDS function;
• Display: Full HD 10.1-inch 1280x720 capacitive 5-touch touchscreen with 600cd/m2 latest QLED screen (a type of quantum film LCD technology with LED backlighting that can significantly enhance color effects and provide very clear and vivid image quality; it also inherits the benefits of a full 178° viewing angle and the high contrast of IPS LCD);
• GPS/Navigation: The built-in GPS receiver module with an external GPS antenna and the Google Maps app is installed as a standard GPS map. Users may need to download offline map data for a specific area for offline navigation if preferred;
• Link to phone mirroring and phone integration: Phone mirroring - The EasyConnect app is pre-installed and supports working with the latest iOS and Android devices (a system firmware update may be required). Two options are available for connecting with Android smartphones and iPh0ne (USB/WiFi); Phone integration link (wired/wireless CarPlay; wired/wireless Android Auto) - It seamlessly integrates your smartphone (iPh0ne & Android) into the S8's built-in display, enabling you to make calls, access your music, send and receive messages, get directions (Note: For the wired CarPlay and Android Auto connection, please use the factory/original USB cable that comes with the phone for ATOTO S8 head-units).
• Some other features: Fast system startup; Split-screen display; "Digital picture frame" option – Users can place memorable photos in the specified gallery folder and have them automatically play on the S8's large HD screen with just one touch. Speed Compensated Volume Control (SCVC) – As you increase your speed, the volume of the main unit increases by a certain percentage. This is to compensate for road noise; USB network tethering– Share your phone's data via the USB connection with the S8 head unit;Live Rear-View (LRV)– You can now access the rear view even when your vehicle is moving forward. This can eliminate obstacles caused by passengers, headrests, roof, and rear pillars of the vehicle and expand the field of view.

Inputs, outputs, and slots

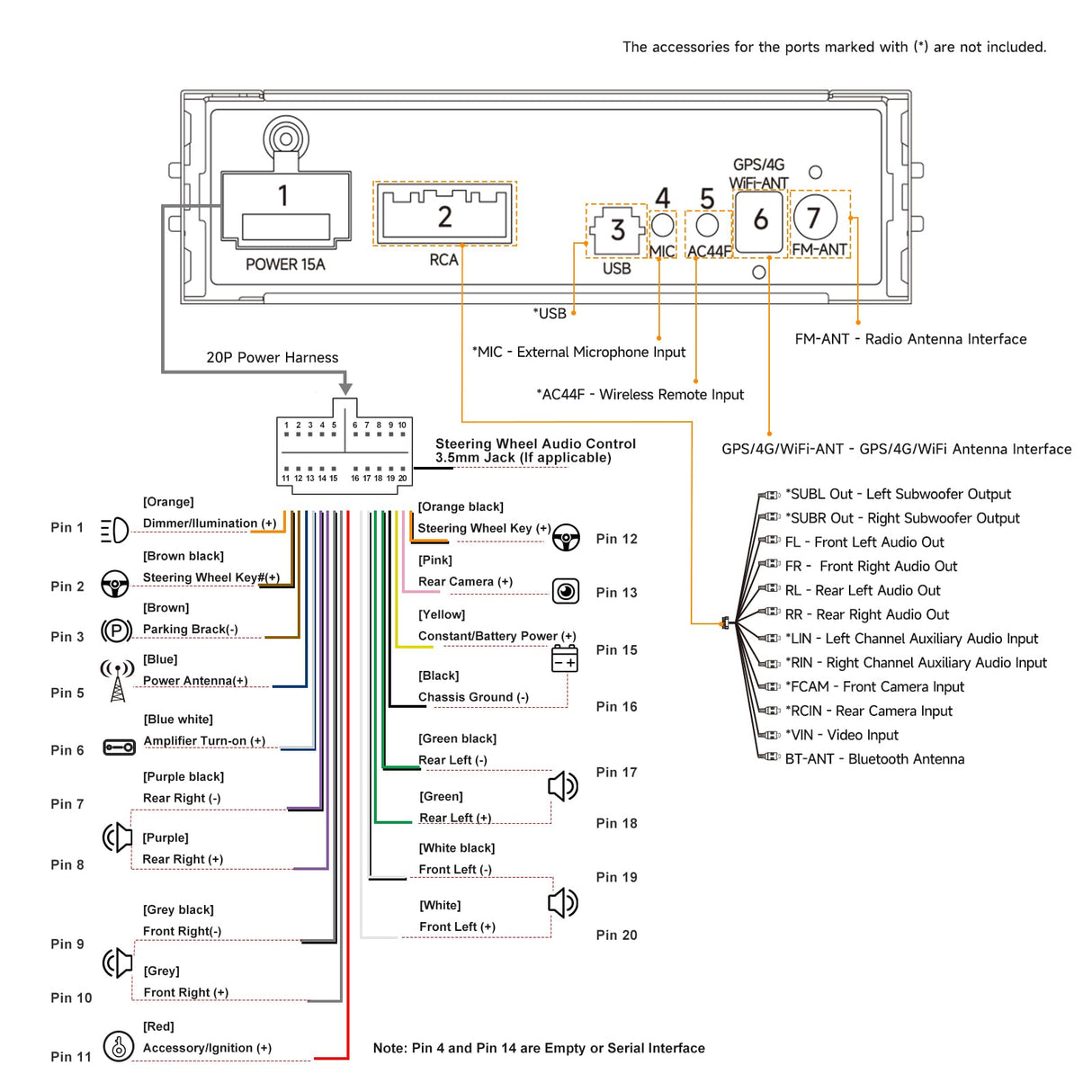

• AUX audio (L/R)/video input; FCAM front camera video input; rear camera input; 4-channel RCA audio output (2V) to connect to factory/aftermarket amplifiers; separate subwoofer output (0.8 V); For S8 Pro, optical SPDIF output and fast charging interfaces are available; To connect a headrest monitor, you need an additional ATOTO USB-to-HDMI or USB-to-RCA video output adapter (not included);
• One micro-SD slot - for storing media files (up to 512 GB SD card); 5 USB interfaces – 4 for data communication, including reading USB drives (unlimited reading of external storage devices, including portable SSDs) and optional USB devices and connecting phones for CP/AA/EasyConnect; 1 USB for fast phone charging.

Important: During installation of the display module, ensure not to leave any screw holes open and tighten the screws firmly, as otherwise, it could lead to issues with the display module (stripes, screen freezing, blurry screen, etc..

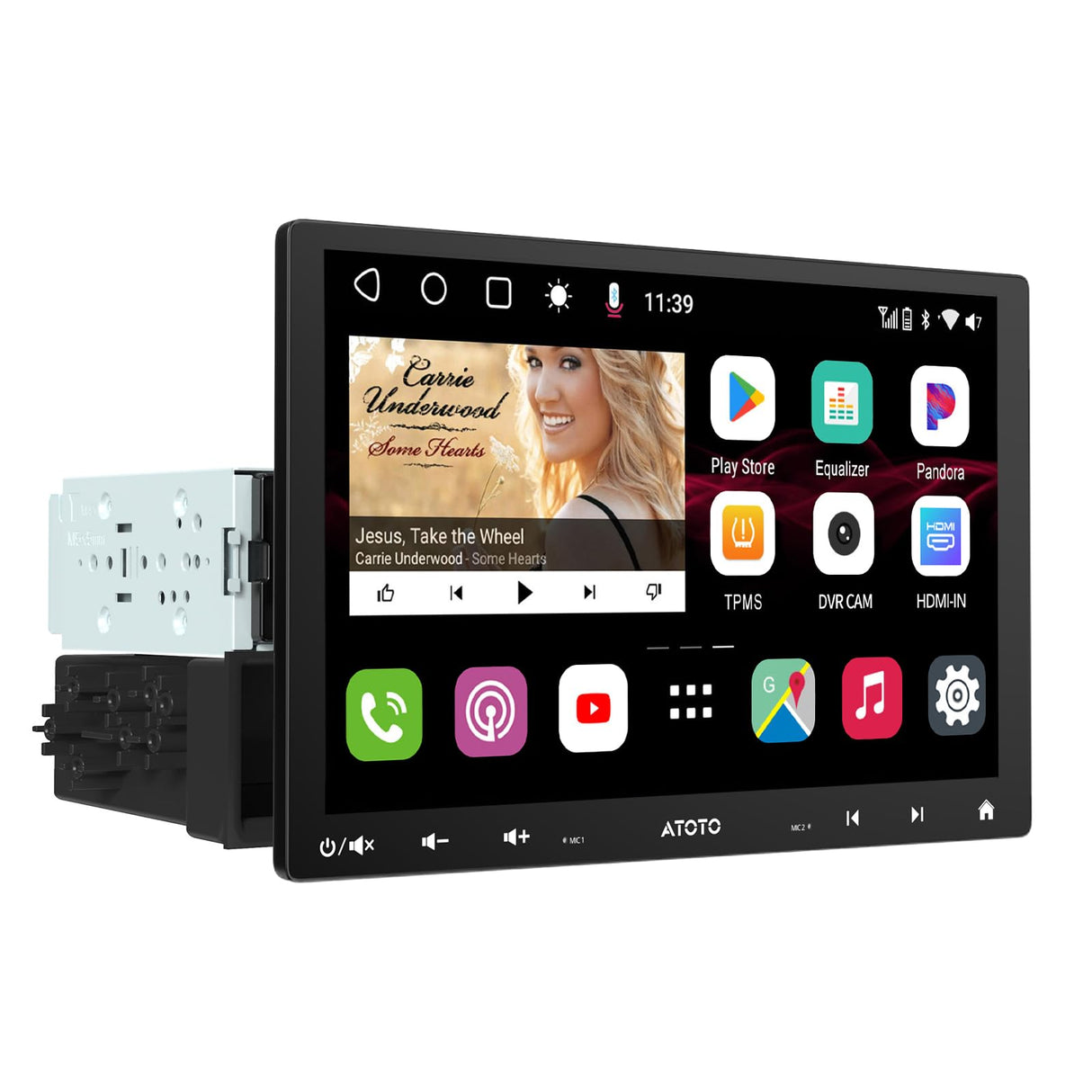

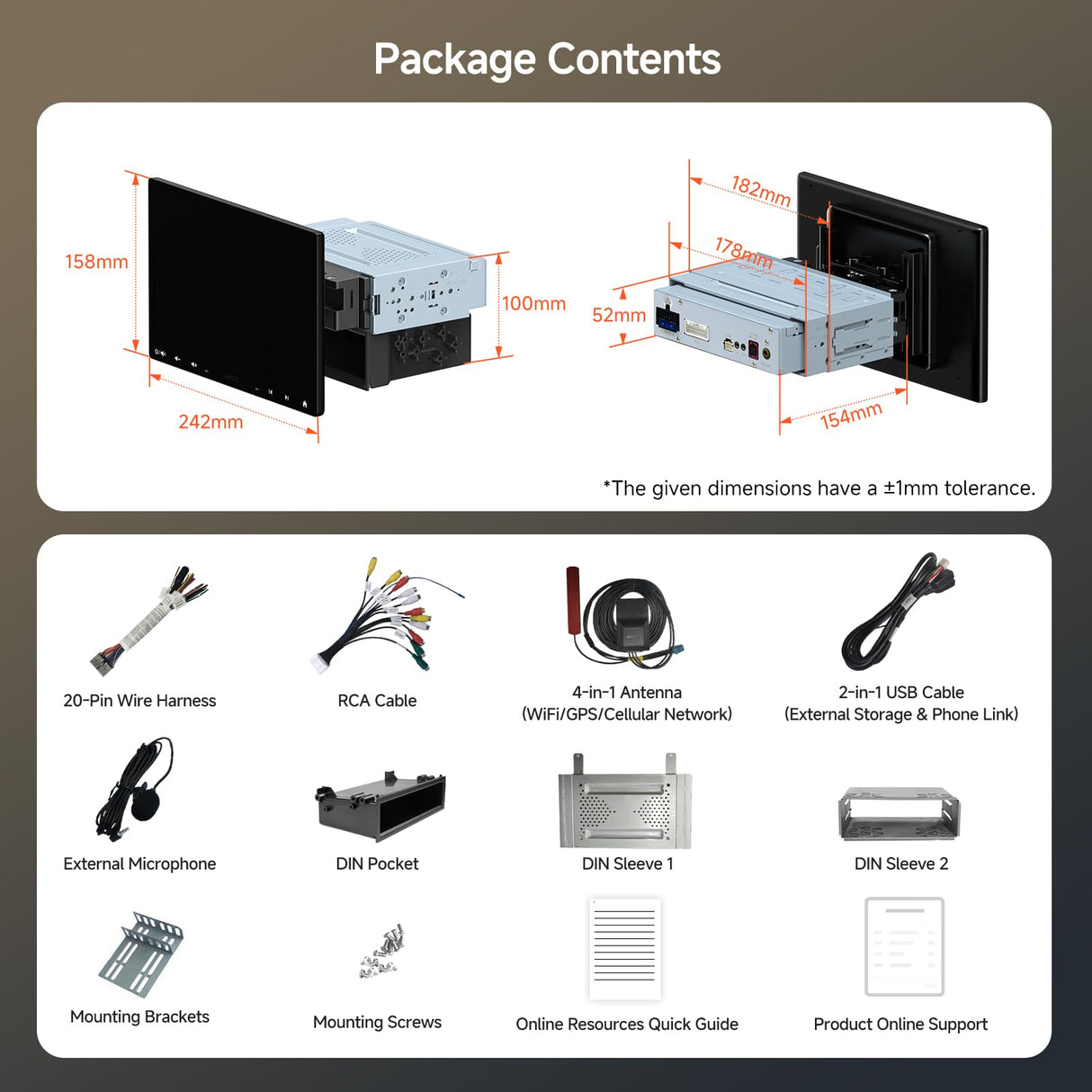

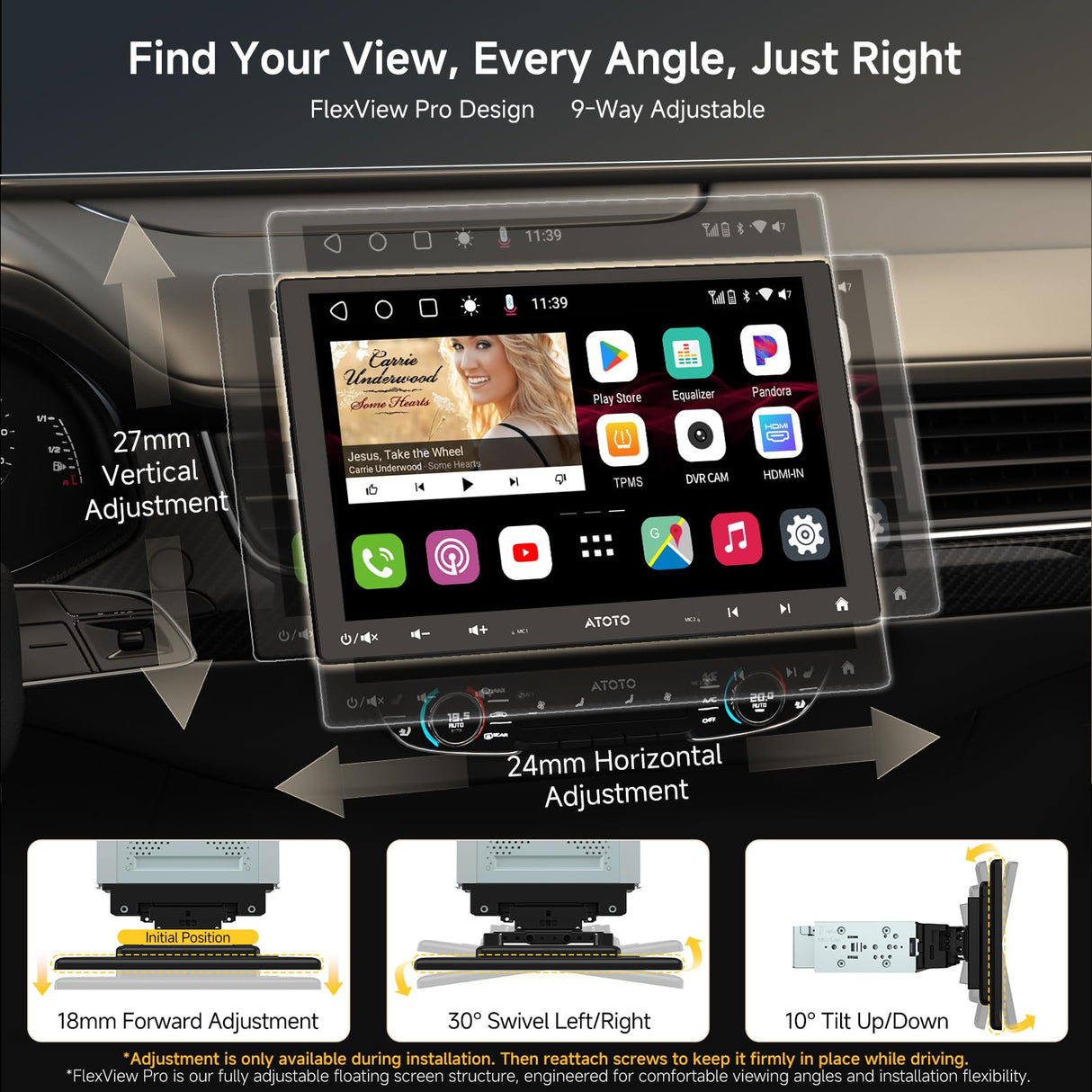

Vehicle compatibility:For the ATOTO S8 with a 10.1-inch floating display (DAH10D), the front panel of the 2-DIN base measures 178 x 100 (mm) and its 10.1-inch screen size is 252 x 155 (mm). The floating 10.1-inch display stands out from its 2-DIN base, allowing users to adjust height and viewing angle (up or down). However, in certain vehicles, the edge of the large screen might block the air vent, emergency button, or other buttons, causing inconvenience.

Not just a car radio: Use Android apps, stream music, navigate with live traffic, and expand with external devices.

S8 Pro offers 4 methods for internet access - Wi-Fi / BT / USB tethering and built-in 4G cellular modem:

1). Phone Internet Access

• S8 establishes an internet connection via 2.4GHz/5GHz Wi-Fi or Bluetooth tethering to the phone hotspot.
• Online maps and music streaming require <200 Kbit/s, which Bluetooth tethering covers, saving power in the process.
• USB tethering with S8 efficiently shares phone data and conserves battery. EasyConnect app runs in the background for this purpose.
• Wi-Fi connection is established in one step, Bluetooth requires more steps.

2). Integrated 4G Modem

The S8 features a nano-SIM card slot, though a data SIM is not included. It supports a wide range of carrier frequencies for 2G, 3G, and 4G, given the network coverage is available. Before purchase, you should check the compatibility of frequency bands with local providers. More than 1000 apps from the Google Play Store were successfully tested, although some compatibility restrictions may occur.

Note:Some apps are not compatible with S8 (Gen2), e.g., Netflix.

Important: Some video streaming services (Netflix, Amazon Prime, Disney+ etc.)

Versatile Connectivity - The ATOTO S8 Pro features multiple inputs and outputs, tailored for better operation in a vehicle.

• Connect the USB dash camera and ATOTO USB TPMS to the S8 for video recording and tire pressure warnings.
• Reverse camera connection for easier parking. (Connection of headrest monitors via ATOTO USB video output adapter.)
• Smartphone mirroring via EasyConnection and use of CarPlay (wireless/wired) as well as Android Auto (wired) for vehicle integration.
• Bluetooth connection to OBD II for diagnostics and fast charging of the phone via a dedicated interface.

Dual Bluetooth chips, compatible with many devices, QCM Bluetooth 5.0, aptX HD, voice assistant.

• The Bluetooth 1 functions as a Bluetooth hands-free device (call/answer) with A2DP streaming audio feature. Contacts/recent records are synchronized as soon as the smartphone is connected. Supports "Quick Search" and "Add to Favorites" for quick dialing!
• Integrated noise cancellation technology to suppress background noise and echo feedback during a hands-free call. You don't have to shout at the car stereo to talk to the other person.
• ATOTO S8 (Gen 2) Pro uses the QCM aptX HD codec, developed to meet the growing demand for high-resolution audio. This advanced codec supports 24-bit music quality over Bluetooth. This means listeners can hear even the smallest details in their music. Although the average Bluetooth streaming solution is sufficient for the majority, there is still regret for these over-critical individuals (who are more obsessed with HD audio quality). Now enjoy wireless HD audio easily with S8.
• aptX Low Latency audio delivers sound in sync with the screen, reduces delay, and enhances the end-to-end speed of audio transmission (from 120 ms to 40 ms!), resulting in high-quality, synchronized sound that you never miss a beat.
• For the aptX HD function, the phone side must also support Bluetooth aptX HD for proper performance. Users can verify this on the ATOTO by QCM aptX HD: aptx.com/products/atoto-in-car-entertainment-system
• Bluetooth 2 not only functions as Bluetooth tethering Internet but also allows connection with the Bluetooth gamepad (for kids in the back seat), Bluetooth OBD2, Bluetooth TPMS, etc.;
• Due to the dual Bluetooth inside, the user can connect up to 3 devices simultaneously (one for audio, two for data communication).
• The customized Bluetooth in S8 allows the phone's voice assistant (Siri, Google Assistant) to be awakened via a Bluetooth connection. This way, users can use a specific button on the screen, the steering wheel, or the ATOTO AC-44F5 wireless remote control to send messages, make calls, and control music with your voice. Much safer, much more convenient;
