ATOTO S8 AN Android Car Radio – Elevate your driving with ATOTO DriveChat

Note: DriveChat is continuously developing, with updates released periodically. To obtain the latest version of DriveChat, please update the app or the system.

Product Version: S8 Ultra New (Gen2); Model: S8G2099UN; Mounting Style: IAH09D (Integrated and adaptive head unit with 9-inch display). An update from the S8 UL, with Android 6G+128G, 4 Internet access options (4G LTE, Wi-Fi hotspot, Bluetooth, and USB tethering). QLED 1280*720 screen with a 178° viewing angle. System Information: SoC Chip: UIS 7862 ARM Cortex Octa-Core (up to 1.8GHz) CPU with ARM Mali-G52 MP2 GPU, advanced 12nm manufacturing process. System version: ATOTO AICE UI 11.0, developed and customized based on Android;

DSP / Pre-Amplifier:The integrated digital signal processor allows for precise equalization settings, signal delay, bass boost, and bass filter. 9 preset EQ modes and 32 adjustable frequency bands (16 for the front and 16 for the rear). Built-in peak amplifier 4*49W BTL with RMS 4*29W (Vcc=14.4V, THD=10%).

Bluetooth & Radio Tuner: Dual Bluetooth (Bluetooth 1 (BT1) supports SBC and AAC codecs and HFP/HSP/A2DP/AVRCP/PBAP protocols); Radio Tuner: built-in high sensitivity FM/AM tuner with RDS/RBDS function (the radio station name will be displayed if available).

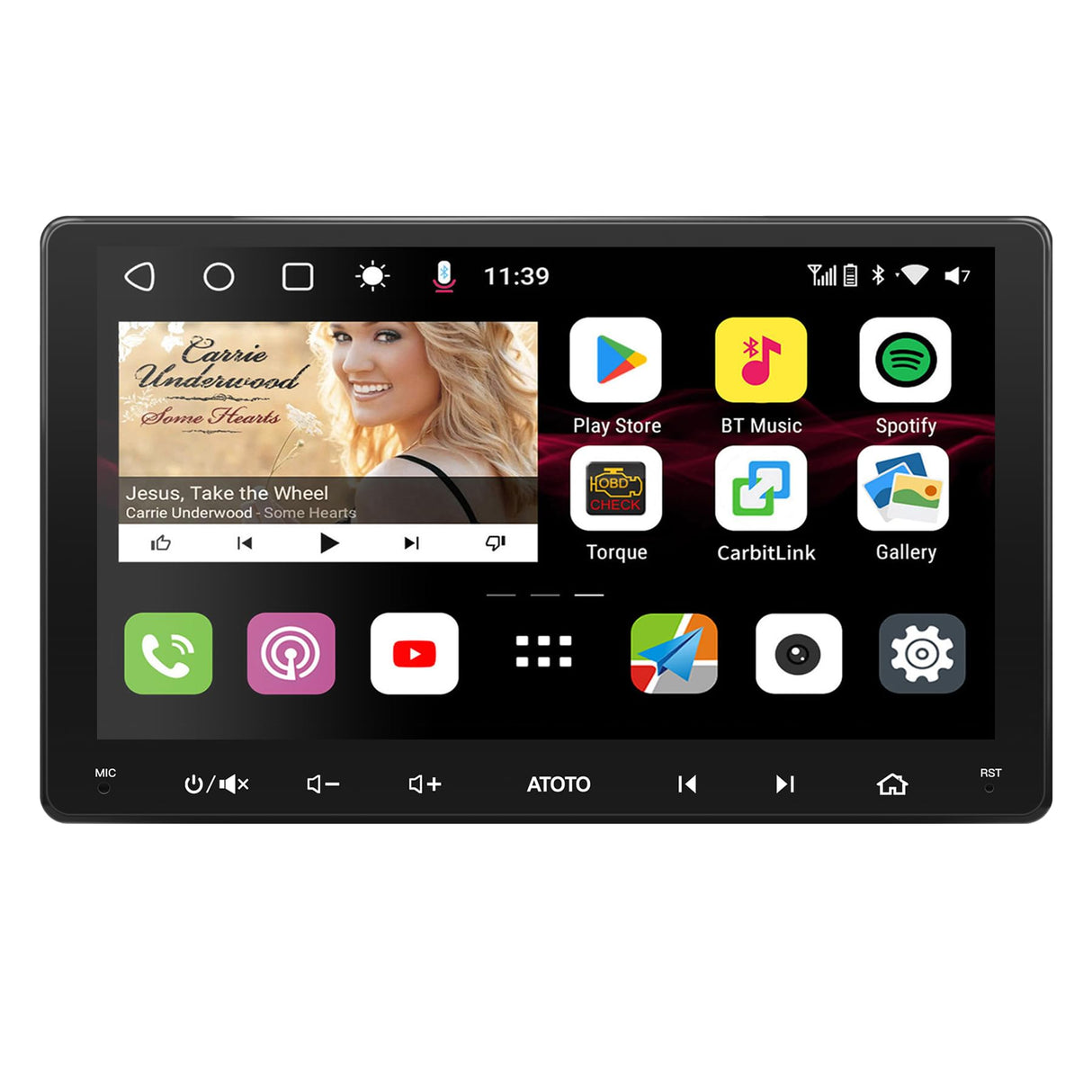

Display: 9-inch Full HD QLED Screen 1280*720 5-touch capacitive with 600cd/m². The completely flat touch panel allows for easy touches even on the edges, with a sleek and highly responsive design. The 5-touch capacitive screen enables smooth controls like pinch-to-zoom, scrolling, and swiping with high precision and no lag.

GPS/Navigation/GPS Tracking: Built-in GPS receiver module with external GPS antenna and GGLE Maps app installed as the default GPS map. Users might need to download offline map data for specific offline navigation if preferred. Other navigation/map apps (Waze, HereWeGo) from the Google Play Store can be installed; GPS Tracking: The application developed by ATOTO simplifies the way you locate your car. With the preinstalled TrackHU app, you can track vehicles in real-time on a simple map, customize alerts and geofences, get analytics, view past data, speed, distance, and more.

Phone Mirroring & Phone Integration Link:Phone Mirroring - CarbitLink app preinstalled, compatible with the latest iOS and Android devices (firmware update might be required). Two options (USB/WiFi) to connect Android and iOS smartphones; Phone Integration (wired/wireless CarPlay; wired/wireless Android Auto) - Integrate your smartphone (iOS and Android) with the S8 display for calls, music, messages, and navigation (Note: for wired CarPlay and Android Auto, use the phone's original USB cable).

Some Other features:Quick Start: Access the system in 2 seconds; Split Screen Display - Use a map and another app (e.g., YouTube) on the same screen; Digital Frame - Display photos on the large S8 HD screen with a touch or gesture; SCVC (Speed Compensated Volume Control) - Volume adjusts according to speed to reduce road noise; USB Tethering - Share phone data with S8 via USB (CarbitLink); Live RearView (LRV) - Access the rear view even while driving, removing obstacles like passengers, headrests, and roof, improving driver view.

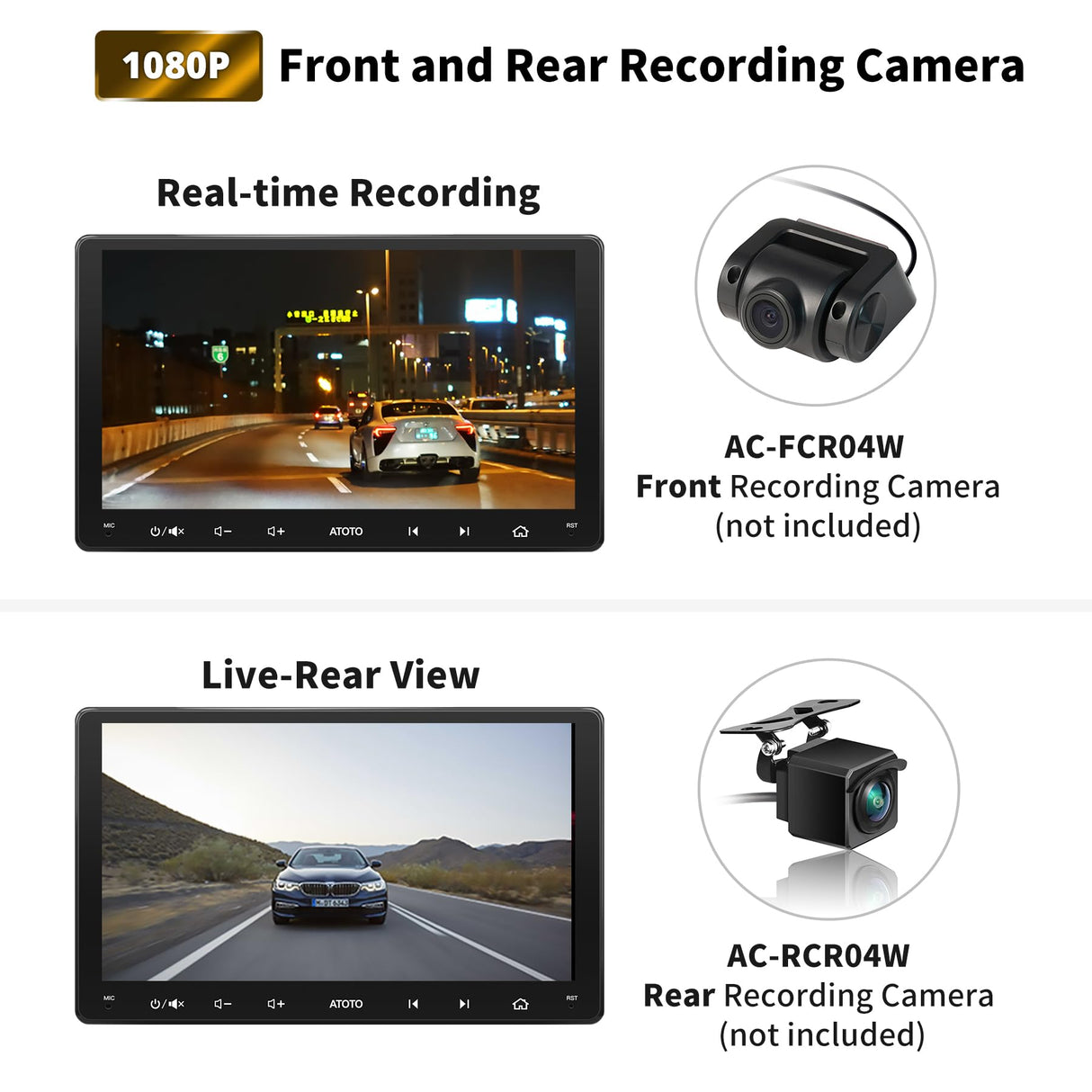

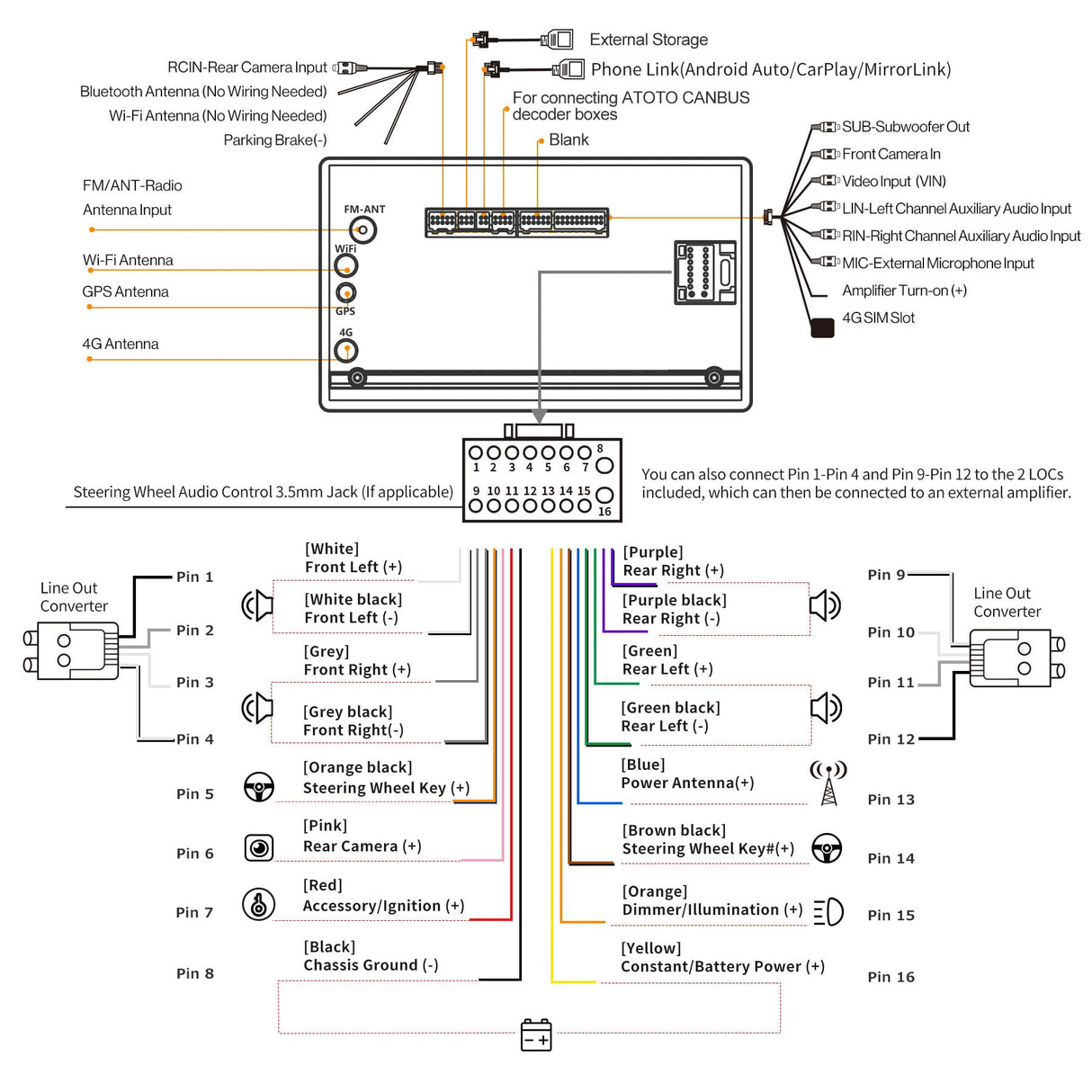

Inputs, Outputs & Slots:AUX (L/R) audio/video input; front camera video input FCAM; rear camera input (S8 supports 720P HD). Connect an HD rear camera for 720P video; 4-channel RCA audio output (2v) for amplifiers; separate subwoofer output (0.8v); A USB-to-HDMI or USB-to-RCA adapter is required for headrest monitor (not included). 2 USB ports for data, device reading (incl. portable SSDs) and phone mirroring or integration; One 4G SIM slot for Micro SIM card.

Notice: Optional parts for ATOTO S8 UN (not included):1. 4-channel amplifier CA-AEC01 (47 watt RMS x 4); 2. Plug-n-play amplifier CA-AEC02 (60 watt RMS x 4); 3. DVR camera AC-44P2; 4. Steering control AC-44F8; 5. Bluetooth OBD II scanner AC-4450; 6. HD rear camera AC-HD02LR; 7. USB TPMS sensor AC-UTP1; 8. USB-HDMI or USB-RCA video adapters; 9. HDMI-AHD converter AC-HAV50 compatible with consoles and HDMI TV Box. All accessories are available in our store.

ATOTO S8 UN Android Car Stereo – Elevate your drive with ATOTO DriveChat

S8 UN offers 4 methods for Internet access - Wi-Fi/BT/USB Tethering & built-in 4G modem

1). Mobile data from the phone

S8 allows users to connect to the phone hotspot via Wi-Fi 2.4GHz & 5GHz or Bluetooth tethering for Internet access; Using online maps or streaming music on an Android car stereo doesn't require high bandwidth (less than 200kb/s). Bluetooth tethering can meet such needs; Compared to Wi-Fi connection, Bluetooth tethering consumes less power, extending the phone's battery life during Bluetooth tethering usage; Wi-Fi connection is simpler, as it only requires one step: activate the phone's WLAN hotspot, and the Wi-Fi connection completes in 2-4 seconds. Bluetooth connection requires 2-3 steps; USB network tethering is an option introduced by ATOTO, allowing users to share phone data with S8 via USB connection. This can help save or even slightly increase the phone's battery. Just run the CarbitLink application in the background.

2). Built-in 4G cellular modem

The SIM card slot supports only the Micro format. The SIM with data plan is not included in the product package; The built-in 4G LTE modem module supports frequency bands used by most operators. Supported frequency bands: 2G (GSM 850, GSM900, GSM1900); 3G WCDMA (B1, B2, B4, B5, B8); 4G LTE (B1, B2, B4, B5, B7, B8, B12, B13, B17, B19, B25, B26, B38, B41); Only operators that support the bands listed above allow the S8 to access the network. Even if the frequency bands listed above are supported, if the operator's base stations do not cover the area where the vehicle is located, S8 will not be able to connect; You can visit Wikipedia to learn more about LTE bands supported by local operators. International buyers need to check the compatibility of frequency bands with local operators before placing the order; Countless Android apps from GGLE Play Store and ATOTO’s pre-installed GPS tracking app (TrackHU)

Over 1000 apps from the GGLE Play Store are compatible with the ATOTO S8 series, particularly media/entertainment and navigation apps in the "Auto & Vehicles" category. Very rarely, some app developers specify devices or system environments that can install or run their apps, preventing installation or execution on Android car radios.

Note: some apps are not compatible with S8 (Gen2), such as Netflix.

Built-in dual Bluetooth chip, connectable to multiple Bluetooth devices, customizable interface for Bluetooth and voice assistant.

Bluetooth 1 supports peripherals and hands-free calls with CD-level audio quality. Contacts and recent logs will sync as soon as the smartphone is connected. Supports "Quick Search" and "Add to Favorites" for fast dialing!

The built-in noise cancellation technology helps reduce background noise and echo during hands-free calls. You don't need to raise your voice to communicate with the other party.

Bluetooth 2 not only serves as internet tethering but also allows connection to Bluetooth gamepads (for kids in the back seats), OBD2 Bluetooth, TPMS Bluetooth, etc.

It can pair with devices such as the AC-4450 Car Diagnostic Scanner (not included) and the CI-FLT01 Floor Light (not included) for an enhanced experience.

Thanks to dual Bluetooth, the system allows connecting up to 3 devices simultaneously (one for audio, two for data communication).

The S8 Bluetooth can activate the phone's voice assistant (Siri, Google Assistant). This allows users to conveniently use a specific button on the screen, steering wheel, or the wireless remote ATOTO AC-44F8 to send messages and make voice calls.
