ATOTO CA-AEC122D Amplificatore Auto Classe D TI TPA3221, 2 Canali, Supporto Ingresso 7V-30V, 2/4 Ohm Stabile, 108dB SNR, Bassa Distorsione, Solo per Autoradio ATOTO
ATOTO CA-AEC122D Amplificatore Auto Classe D TI TPA3221, 2 Canali, Supporto Ingresso 7V-30V, 2/4 Ohm Stabile, 108dB SNR, Bassa Distorsione, Solo per Autoradio ATOTO est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Va bien avec
Buy accessories with a car stereo and enjoy 3% cashback on accessories.
Garantie de prix 30 jours
Garantie de prix 30 jours
- Retours faciles sous 30 jours
- Expédition depuis l’entrepôt US (livraison en 3–7 jours)
- Vous avez trouvé moins cher ? Contactez-nous et nous nous alignons !
1 an + 180 jours de garantie
1 an + 180 jours de garantie
Nous offrons une garantie complète sur tous nos produits afin de vous assurer une utilisation en toute sérénité.
- Période de garantie : Ce produit est couvert par une garantie standard de 12 mois.
- Garantie étendue : L’achat sur notre site officiel vous permet de vous enregistrer directement pour une garantie étendue, ajoutant 180 jours supplémentaires de couverture.
Pour plus de détails, veuillez consulter notre [Politique de garantie].
Après l’achat, veuillez vous assurer de [enregistrer votre produit] pour activer votre couverture de garantie.
Livraison gratuite
Livraison gratuite
- Livraison gratuite :
Toutes les commandes sont expédiées gratuitement et arrivent généralement sous 7 jours. - Retours sous 30 jours :
Si vous n’êtes pas entièrement satisfait, vous pouvez retourner ou échanger votre produit dans un délai de 30 jours. - Protection d’expédition (recommandée) :
Pour plus de tranquillité d’esprit, nous vous recommandons d’ajouter la Protection d’expédition Seel lors du paiement. Avec cette couverture, vous pouvez déposer une réclamation directement en cas de retard, perte ou dommage, pour un traitement plus rapide et une protection renforcée.
Bien que nous soyons toujours heureux de vous assister pour toute question logistique, toute indemnisation sans protection supplémentaire dépend des politiques et critères d’éligibilité du transporteur.
Pour des informations complètes, veuillez consulter notre [Politique de Livraison] et [Politique de Retour].
ATOTO CA-AEC122D Amplificatore Auto Classe D TI TPA3221, 2 Canali, ...
Caractéristiques
Caractéristiques
Spécifications
Spécifications
| Paramètres du produit | Valeur du paramètre |
|---|---|
| F7-Pro | |
| Host Technology Platform Code | F7 |
| Version Configuration in English | Pro |
| Operating System Type | Linux |
| Operating system version | 4.9 |
| External SD storage support | Max 512GB |
| External USB storage support | Max 2TB |
| Main control chip model | LY8368 |
| Storage | NO |
| Memory | NO |
| Built-in communication module | NO |
| WIFI hotspot connection | NO |
| Screen material | IPS LCD |
| Default Bluetooth | BT 4.2, supports HFP,HSP,A2DP,AVRCP,PBAP; SBC Codec |
| Secondary Bluetooth | NO |
| Wired CarPlay | YES |
| Wireless CarPlay | NO |
| Wired Android Auto | YES |
| Wireless Android Auto | NO |
Avis (0)
Avis (0)
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

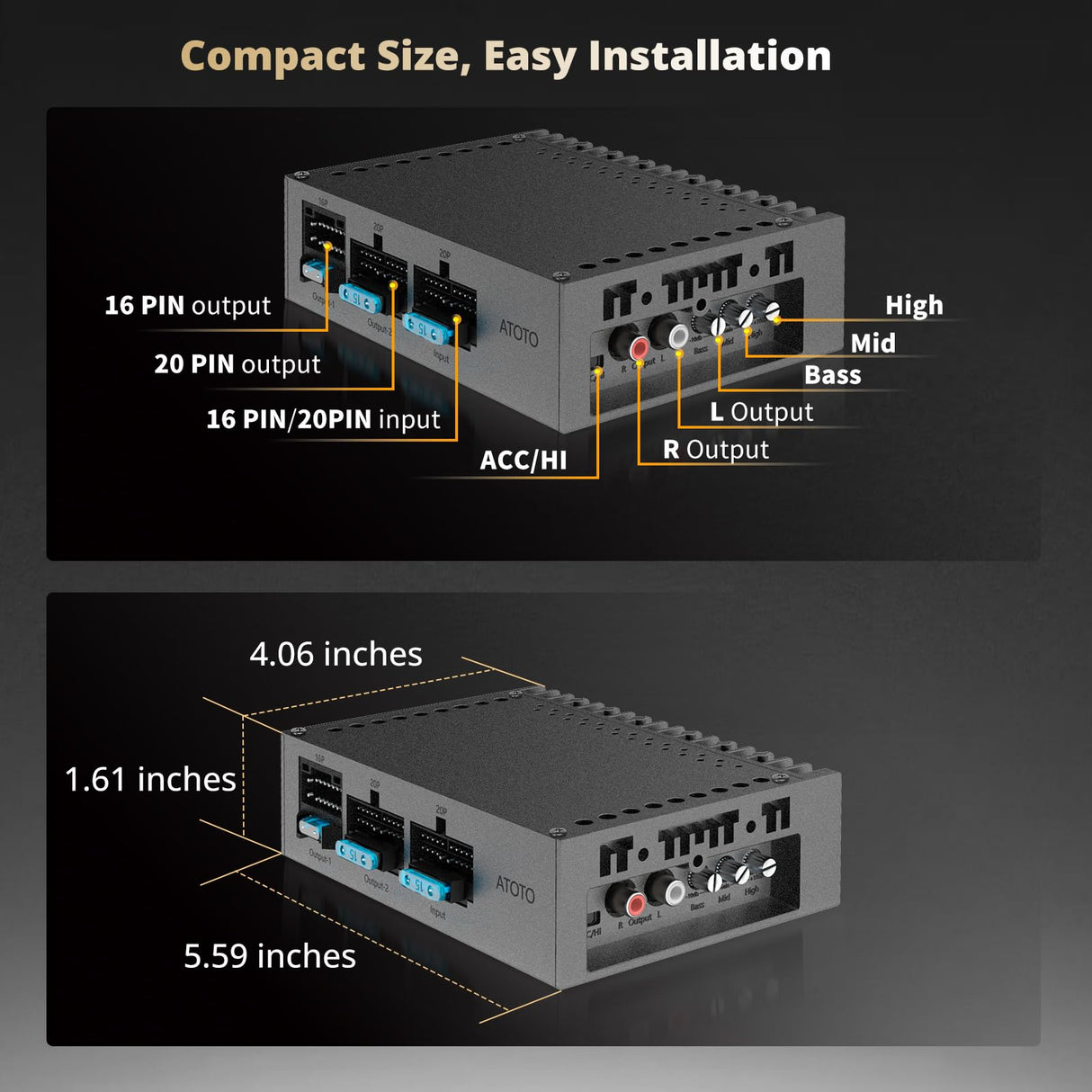

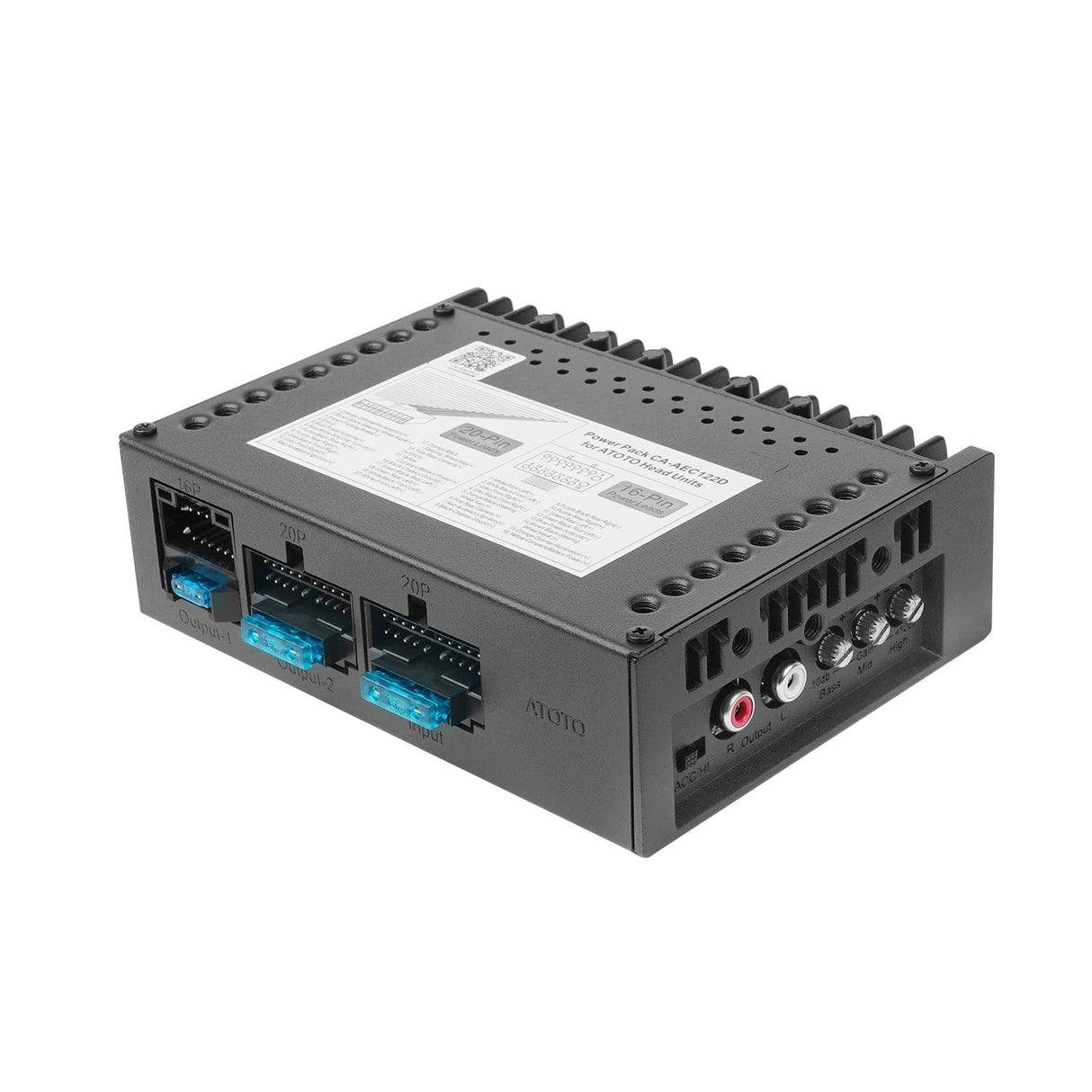

Model: Based on TI TPA3221 Class D amplifier chip
Key Features
• Wide power supply voltage range: 10V - 16V
• Working voltage: Boost from 12V to 22V in stable mode
• Stereo output modes (BTL):
• BTL mode: 4x60W RMS @ 4Ω (1% THD+N), 4x125W RMS @ 2Ω (1% THD+N)
• High efficiency: ≥90% (typical)
• Ultra-low standby power: <1mA
• Signal-to-noise ratio (SNR): >108dB
• 3-band EQ: LOW/MID/HIGH with selectable gain settings (18dB, 24dB, 30dB, 34dB)
• Frequency response: 20Hz~20KHz (±3dB)
• Fuse rating: 15A
Enhance your audio experience with ATOTO speakers
• To ensure the best sound quality and avoid speaker damage, please check that the car speakers can handle at least 50W. For optimal performance, consider upgrading or combining with ATOTO CS-651DC/CS-651DST speakers (not included).
• Combining the ATOTO CA-AEC122D amplifier with CS-651DC/CS-651DST speakers (not included) offers a superior audio experience. These speakers boast an RMS power of 60-70W, perfectly complementing the powerful output of the amplifier at 4x60W RMS. This combination ensures high-fidelity sound and is key to unlocking a sensational musical journey in your vehicle.
Recommended volume range
• For the ATOTO car stereo system, which has a maximum volume of 40, it is recommended to use the volume range between 10 and 20 for optimal sound quality and power experience.
• If the volume is set between 36 and 40 and operates continuously for more than 8 hours, there is a strong likelihood of tripping a fuse (either in the car stereo or the amplifier itself) and distortion may occur, compromising the listening experience.
High performance output
Unleash powerful stereo and mono sound with the TI TPA3221 class D amplifier chip. Enjoy 4x60W RMS at 4 Ohm (1% THD+N) and 4x125W RMS at 2 Ohm (1% THD+N) in BTL mode. Experience your music like never before, with clarity, depth, and intensity.

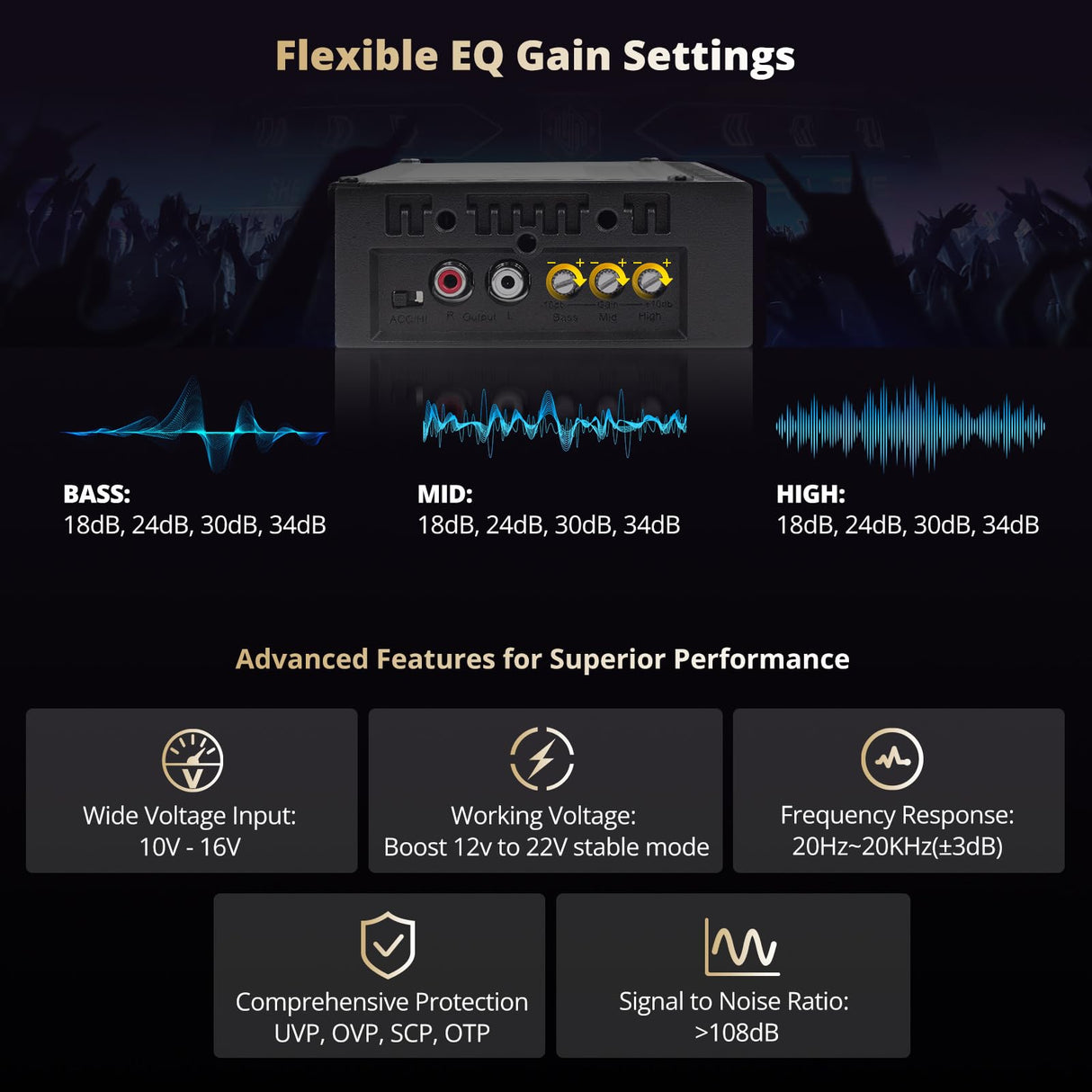

Wide Voltage Input and Flexible EQ Gain
Adaptable to various power sources with support for inputs from 10V to 16V, this system features an operating voltage that increases from 12V to a stable 22V, ensuring full output power of the amplifier chip even with input voltages between 10V and 16V. Customize your audio experience with a 3-band equalizer for low, mid, and high frequencies and choose between selectable gain settings of 18dB, 24dB, 30dB, or 34dB. Whether you prefer subtle melodies or powerful bass, tailor the sound to your taste.
Complete Protection Features
Designed for reliability with built-in protections: Undervoltage Protection (UVP), Overvoltage Protection (OVP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP). Clipping detection and DC speaker protection ensure safe operation under all conditions, giving you peace of mind on every journey.
High Efficiency and Superior Audio Quality
Achieve exceptional audio fidelity with over 90% efficiency and ultra-low idle power consumption (<1mA). With a signal-to-noise ratio greater than 108 dB, the CA-AEC122D delivers crystal-clear sound that brings your music to life.

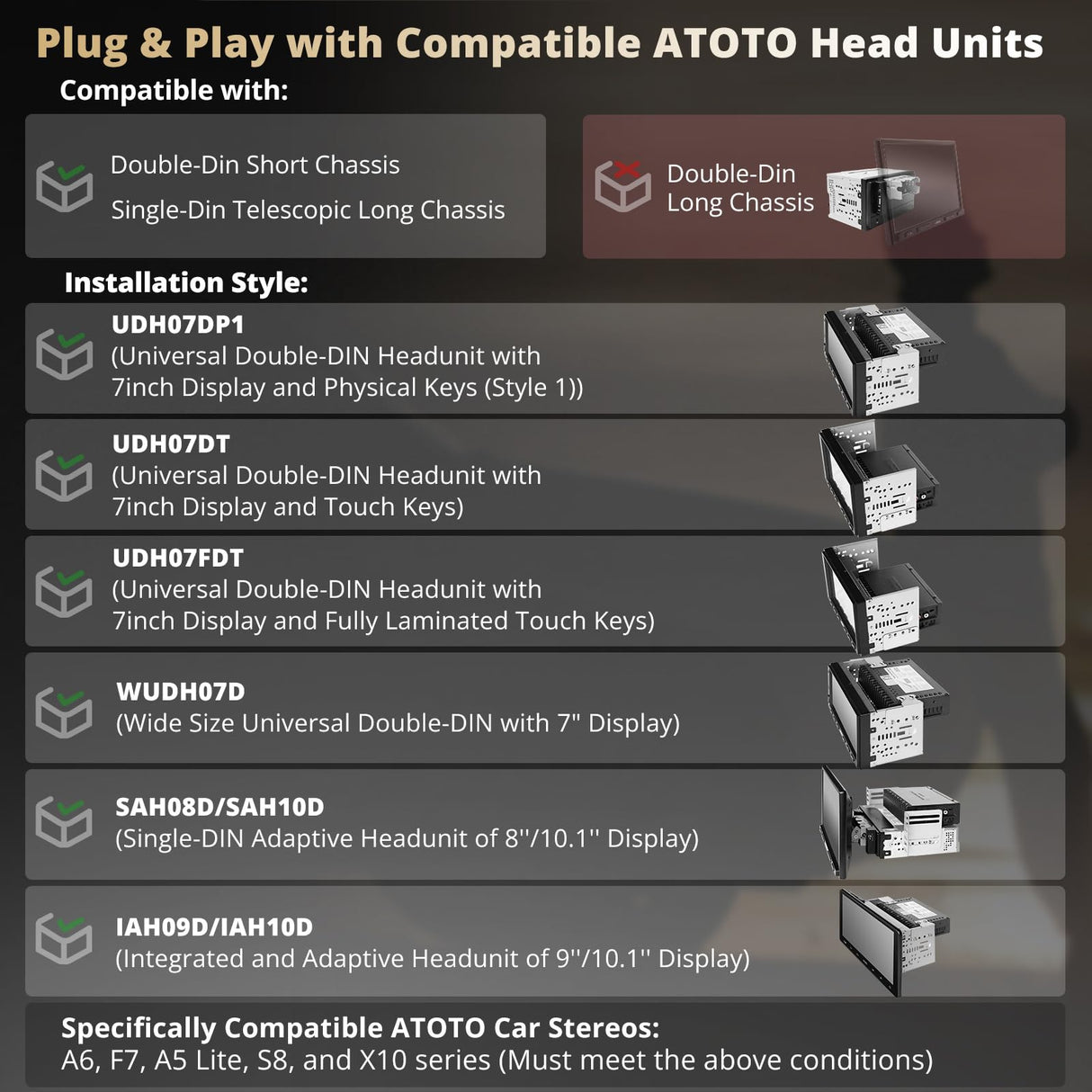

Specific Compatibility Information
• UDH07DP1 (Universal Double-DIN head unit with 7-inch display and physical buttons (Style 1)), including but not limited to
A6G2A7PF, A6G2B7PF, A6G2C7PP, F7G2A7SE, F7G2A7XE, S8G2A74SD, S8G2A74MS, S8G2B74MS, S8G2A78UL
• UDH07DT (Universal Double-DIN head unit with 7-inch display and touch buttons), including but not limited to
A6G2A7PF, A6G2B7PF, A6G2C7PP, F7G2A7SE, F7G2A7XE, S8G2A74SD, S8G2A74MS, S8G2B74MS, S8G2094MS, S8G2A78UL
• UDH07FDT (Universal Double-DIN head unit with 7-inch display and fully laminated touch buttons), including but not limited to
A6G2A7PF, A6G2B7PF, A6G2C7PP, F7G2A7SE, F7G2A7XE, S8G2A74SD, S8G2A74MS, S8G2B74MS, S8G2094MS, S8G2A78UL
• WUDH07D (Universal Double-DIN Unit of large size with 7" display), including but not limited to
A6TYC7PF, F7TYC7SE, F7TYC7XE, S8TYC78UL, S8TYC74PM
• SAH08D/SAH10D (Adaptive single-dynamic unit with 8''/10.1'' display), including but not limited to
F7G1A8PE, F7G1A8XE, F7G110XE, F7G110XED, S8G1A84SD, S8G1104AIO
• IAH09D/IAH10D (Integrated and adaptive unit with 9''/10.1'' display), including but not limited to
A6G209PF, F7G211SE, F7G211XE, S8G2114PM, S8G2119UP, S8G2113LT
