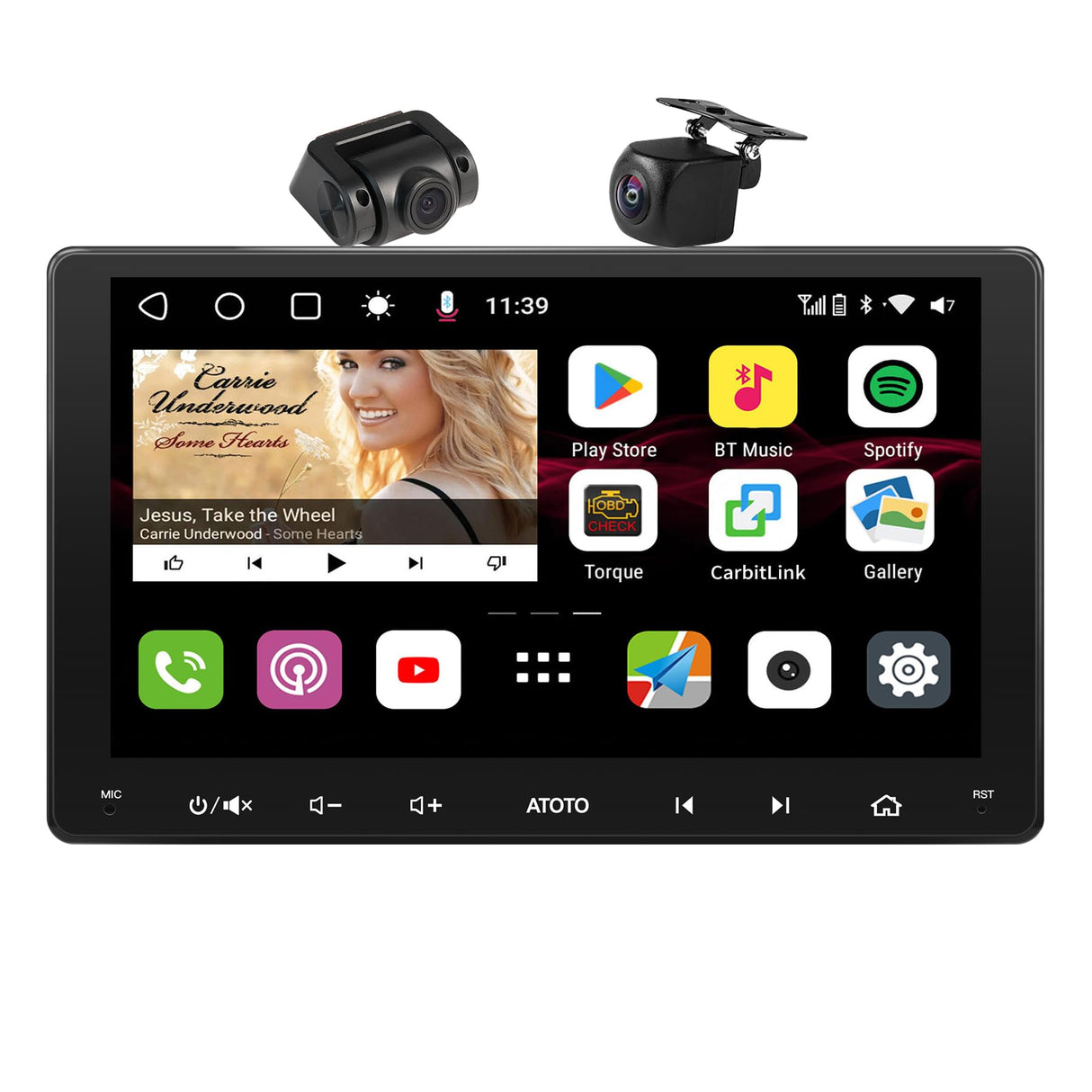

(GEN3) S8 MS Android Car Stereo system - Your Versatile driving companion

Note: DriveChat is constantly evolving. For the latest version, please update your app or system.

• Model: S8 Mass Popularization (Gen3), Mounting Style: IAH09D – an integrated, adaptive 9-inch head unit. This upgrade from the S8 SD features Android 10.0 with 4GB RAM and 32GB storage and offers 4internet access options (4G LTE, Wi-Fi, Bluetooth, USB tethering).
• It comes with a 1280×720 QLED 9" touchscreen that provides a wide 178° viewing angle. A 9-inch Full HD (1280×720) 5-Touch Capacitive QLED screen with 600 cd/m² brightness. The flat, edge-to-edge touch panel is sleek, highly responsive, and unobtrusive (it won’t block vents or c0ntr0ls). Multi-touch controls enable smooth pinch-to-zoom, swiping, and scrolling for seamless multitasking, enhancing a reliable, premium driving experience. SoC: UIS7862, featuring an ARM Cortex Octa-Core (up to 1.8 GHz) with an ARM Mali-G52 MP2 GPU on a 12nm process.
• UI: Runs our AICE UI 11.0 based on Android 10 (Android Q). Languages: Supports a wide range of languages including English, German, French, Italian, Spanish, Portuguese, Japanese, Russian, Arabic, Polish, Korean, Dutch, Thai, Turkish, Ukrainian, Hebrew, Greek, Hungarian, Indonesian, Vietnamese, and Chinese.

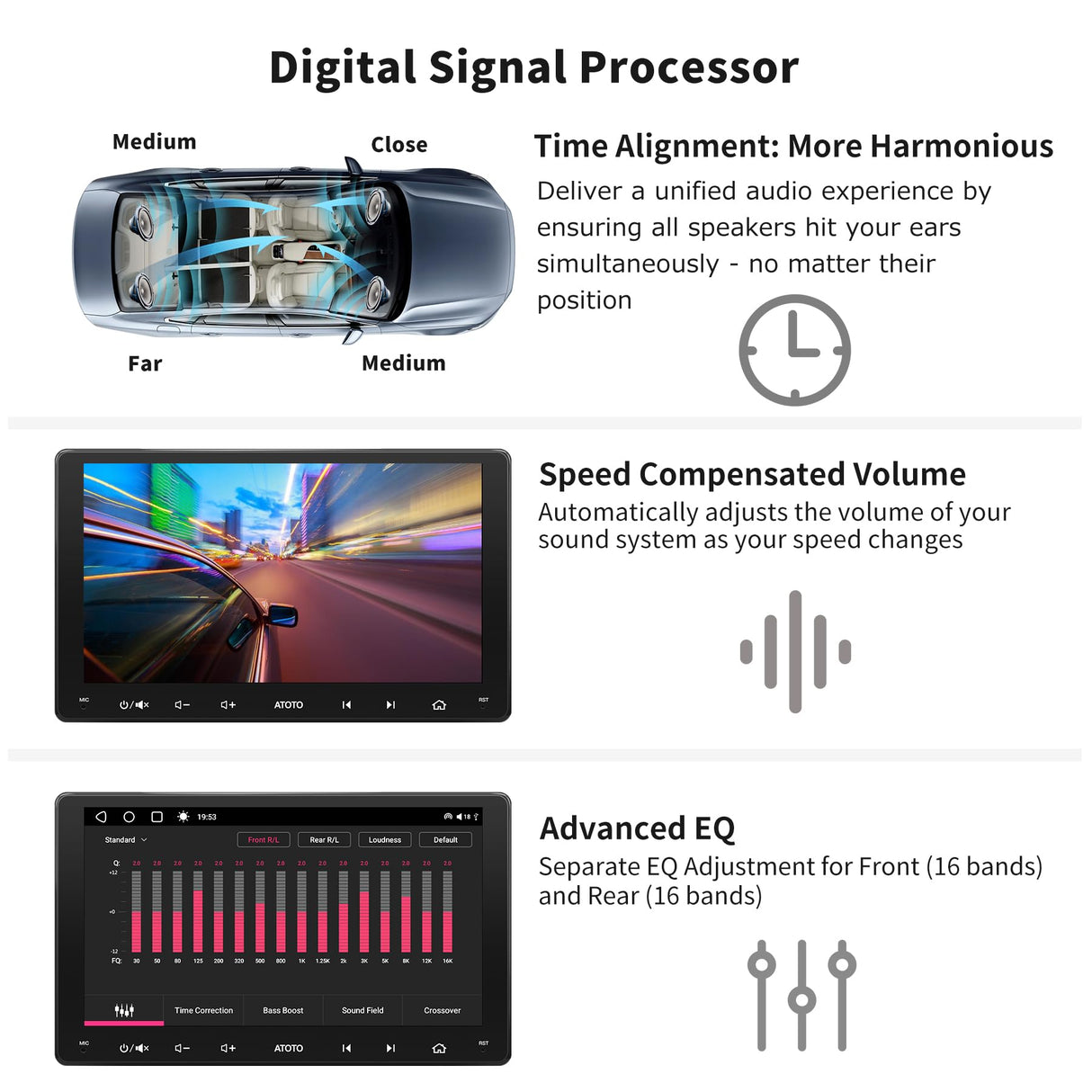

• DSP & Pre-Amplifier: Features a built-in digital signal processor for precise equalization, signal delay, bass boost, and bass filtering. Offers 9 preset EQ modes and 32 adjustable frequency bands (split evenly for 16 front and 16 rear). Includes a built-in amplifier delivering up to 4×45W BTL (with RMS 4×24W at Vcc=14.4V, THD=10%) RCA 2V.
• Dual Bluetooth: 2 bluetooth modes with Bluetooth 5.0 (supporting SBC & AAC codecs and HFP/HSP/A2DP/AVRCP/PBAP) and Bluetooth 4.1.
• Radio Tuner: An integrated high-sensitivity FM/AM tuner with RDS/RBDS displays the station name (if available). SiriusXM is supported.
• GPS: Built-in GPS receiver with an external antenna and Google Maps pre-installed. (Offline map downloads and additional navigation apps like Waze or HereWeGo are supported.) GPS Tracking: Use the pre-installed TrackHU app to monitor vehicle location in real time, set customizable alerts and geofences, and review past data such as speed and distance.
• Phone Mirroring: Utilizes the pre-installed CarbitLink app (compatible with the latest iOS and Android devices; system firmware update may be required). Offers both USB and Wi-Fi connectivity. Digital Photo Frame:Autoplay photos stored in a dedicated gallery folder with a simple tap or gesture. Speed Compensated Volume control(SCVC): Automatically adjusts volume based on driving speed to counter road noise.
• Split Screen: Run navigation and another app (e.g., YouTube) side by side.

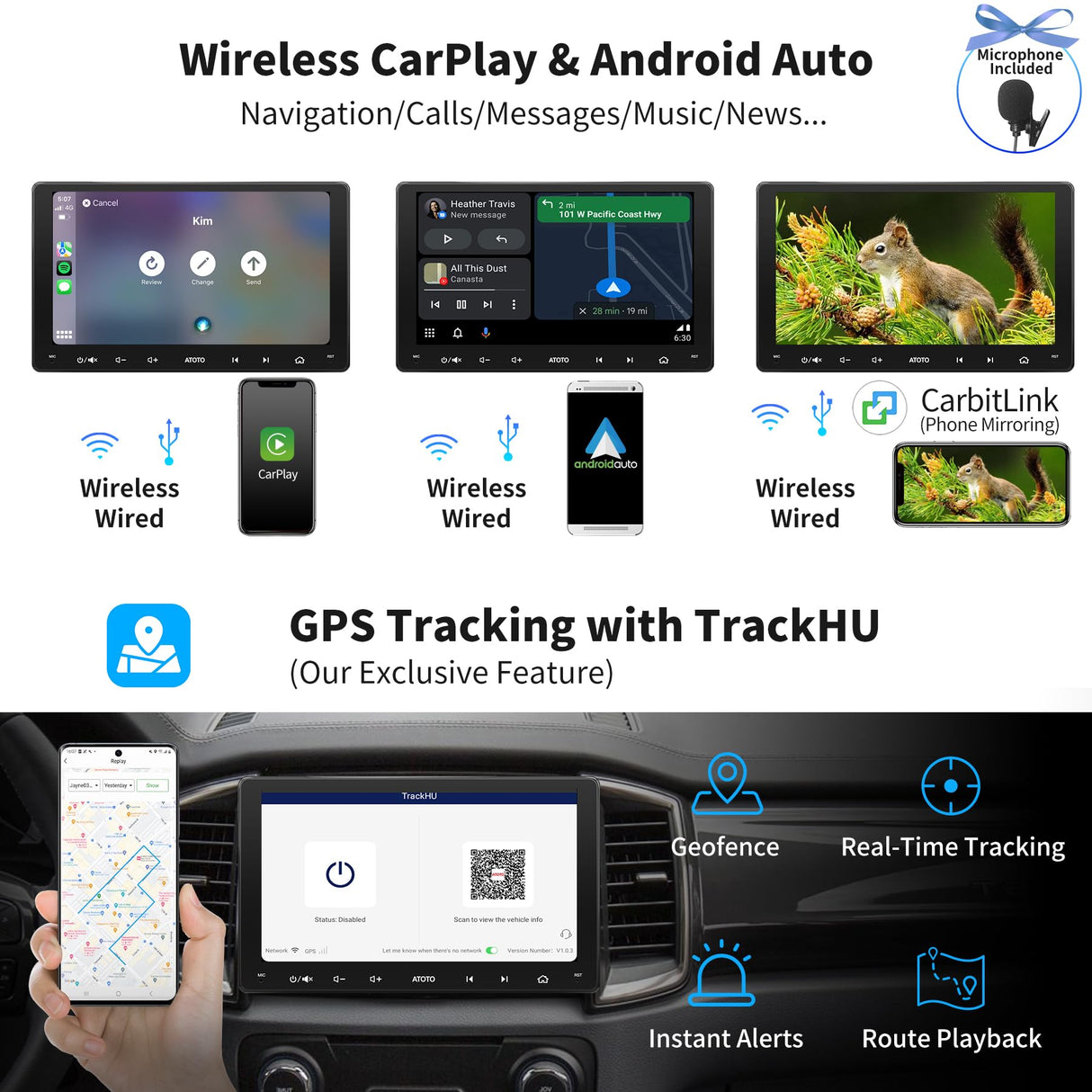

• Smartphone Integration: Supports both wired and wireless CarPlay and Android Auto (using the phone’s original USB cable for wired connections). This seamlessly merges your smartphone with the built-in display for calls, media, messaging, and navigation.
• Fast Boot: System and car start-up within 2 seconds.

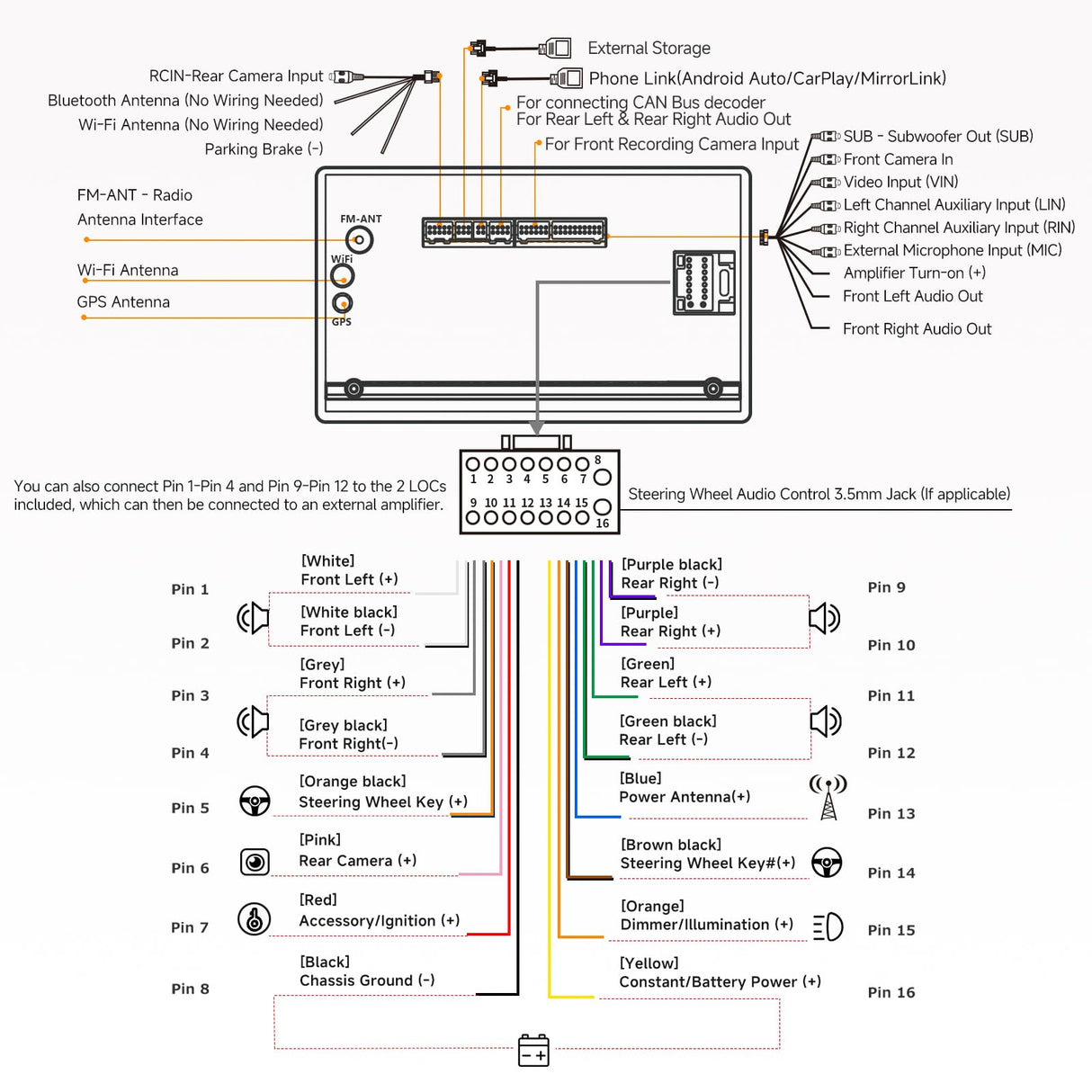

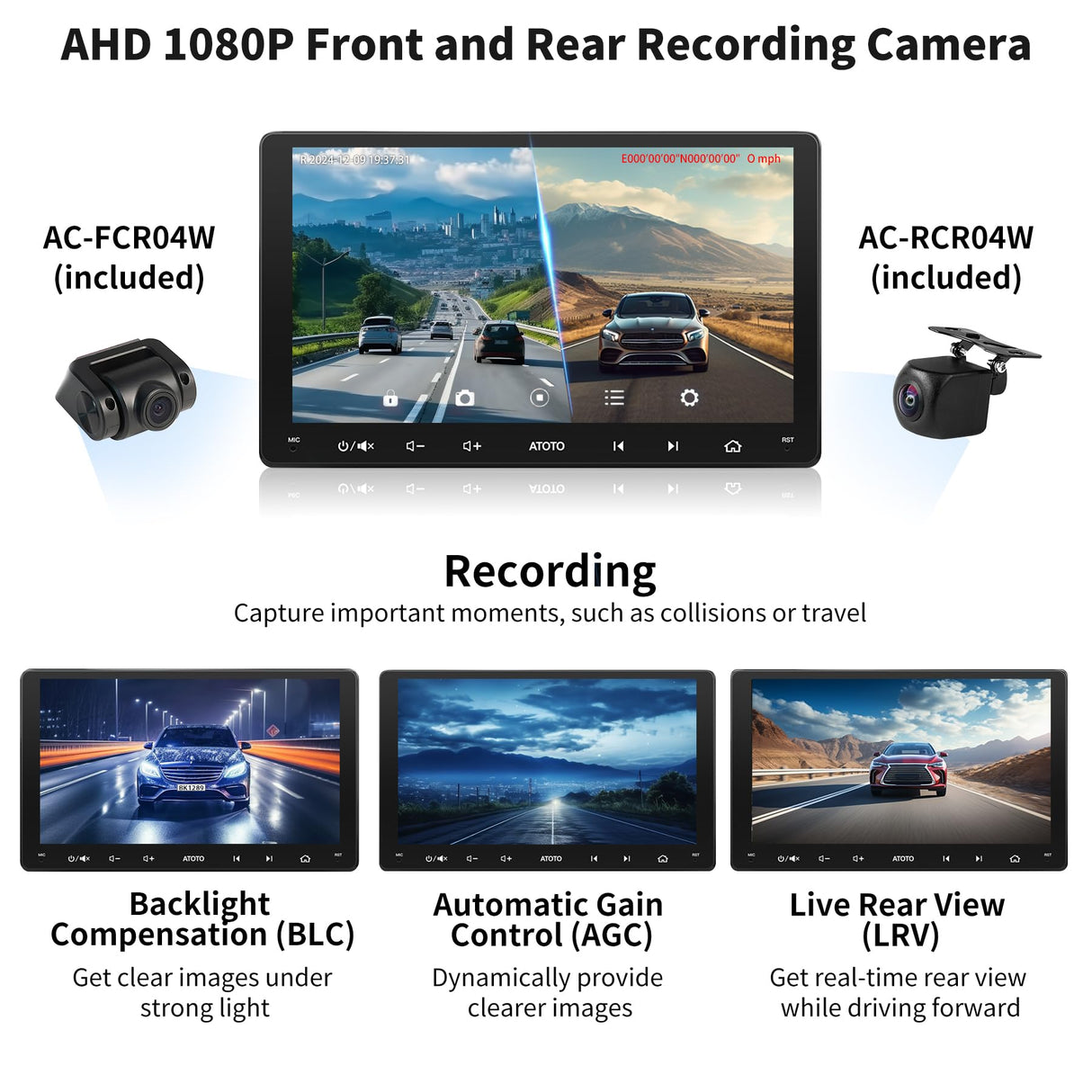

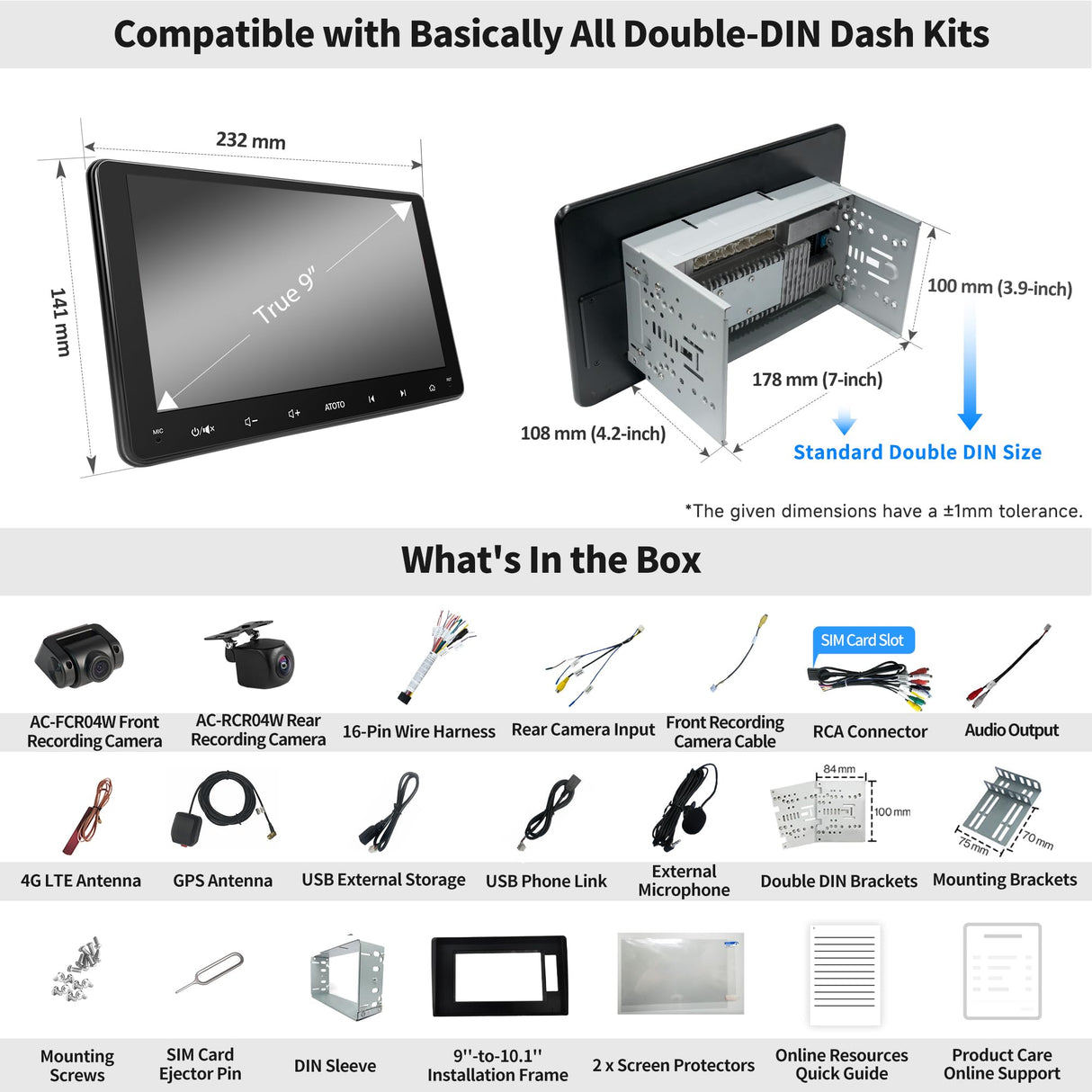

• USB Network Tethering: Share phone data with the head unit via USB (using CarbitLink). Live RearView (LRV): Provides a clear rear view even when the vehicle is moving, overcoming obstructions from passengers or vehicle structure. Audio/Video: AUX (L/R) and video input; front camera input (FCAM); rearview camera input.Note: S8 MS lacks an Optical SPDIF Out and Quick Charge interface. For headrest monitor connection, a USB-to-HDMI or USB-to-RCA adaptor is required (not included). 2 USB Ports: Two USB interfaces for data communication (reading USB drives—including portable SSDs—and enabling mirror casting/phone integration). 4G Connectivity: One 4G SIM slot (Micro SIM). S8G2094MS is designed as a standard double DIN car stereo with the IAH09D integrated 9-inch display. It offers an OEM-style appearance when installed with 9-inch YO-FUNG vehicle-specific dash kits (wiring harness, data interface, mounting kit). The large display minimizes interference with air vents and c0ntr0ls.
• Being a universal car stereo, additional accessories (such as a dash frame kit, wiring harness, radio antenna adapter, or data interface) may be needed for a proper installation. Use theSBV (Search By Vehicle) tool to find compatible parts. Optional Accessories (Sold Separately): 1. CA-AEC01 Compact 4-Channel Car Amplifier (47W RMS × 4) 2. CA-AEC02 Plug-n-Play 4-Channel Car Amplifier (60W RMS × 4) 3. AC-44P2 1080P On-dash DVR Camera 4. AC-44F8 Steering Wheel Remote 5. AC-HD02LR HD Rear-view Camera 6. AC-UTP1 USB TPMS (Tire Pressure Monitoring Sensor) 7. Video Output Adaptor (AC-AHV68: USB-to-HDMI; AC-AHV48: USB-to-RCA) – some connections required pre-installation 8. AC-HAV50 HDMI-to-AHD Video Converter – supports HDMI 1.4, works with devices like game consoles and TV boxes 9. CS-101SW 10" Slim Amplified Subwoofer – 400W max peak, 150W RMS, with low/high-level inputs and remote bass control

More than a car stereo - Install Android Apps, play music online, run online map & get real-time traffic, connect various external devices

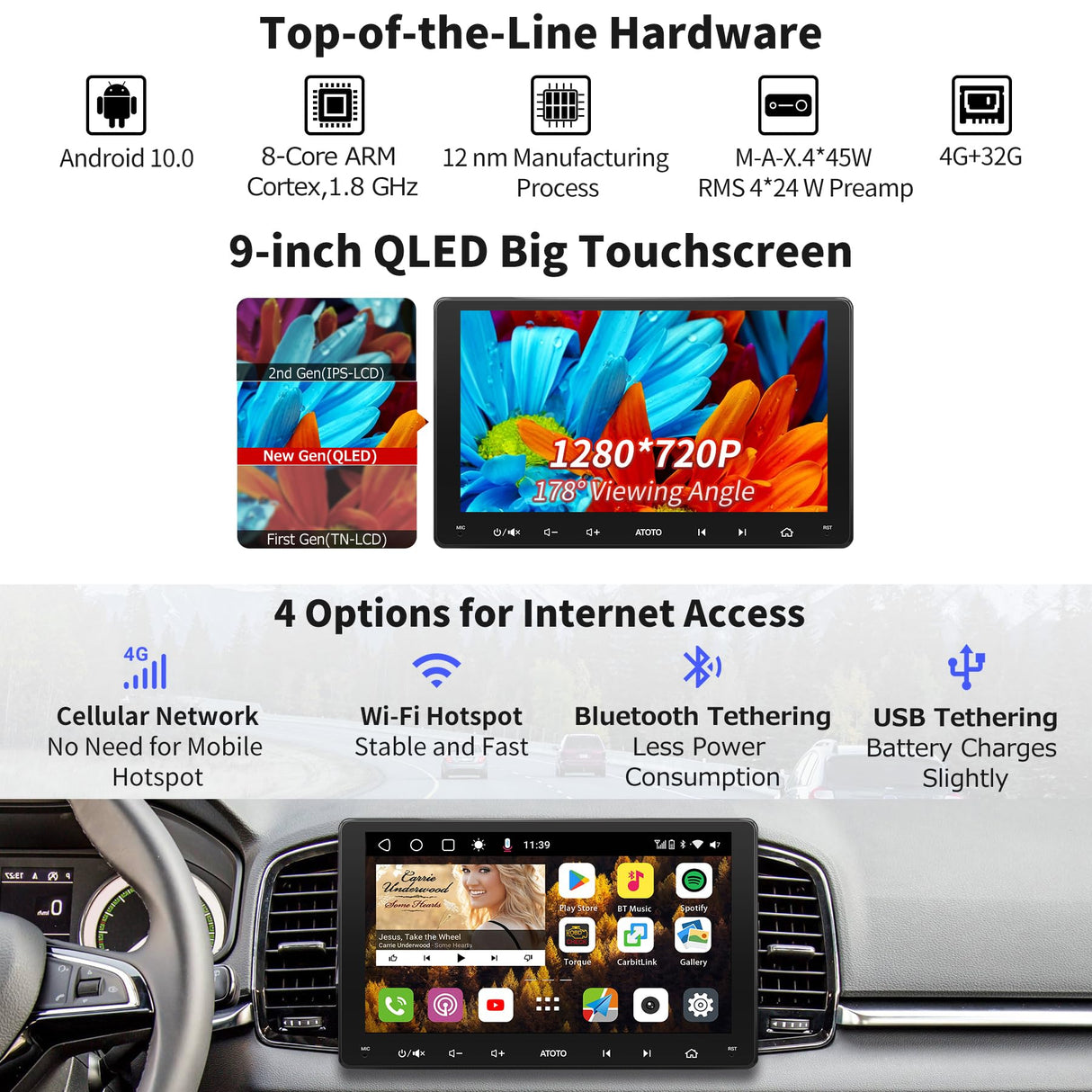

S8 MS provides 4 Methods for Internet Access - Wi-Fi/Bluetooth/USB Tethering & Built-in 4G:

1. S8 allows users to connect to the phone's hotspot via WiFi or Bluetooth tethering for internet access.
2. Running online maps or streaming music online on Android car stereo do not need high bandwidth(less than 200kb/s), Bluetooth tethering connection is capable of dealing with such demands.Compared with WiFi connection, Bluetooth tethering has lower power consumption, so the phone battery will last much longer while Bluetooth tethering is enabled;
3. WiFi connection is easier as it requires only one step - enable your phone's WLAN hotspot, then WiFi connection can be finished within 2-4s; Bluetooth connection requires 2 to 3 steps;
4. USB network tethering is a newly introduced option by us, it allows users to share phone data with S8 via the USB connection. This could help save the phone battery, or even increase your phone battery level slightly; You only need to run the specific CarbitLink application in the background;

• Built-in 4G cellular network modem module ：

1. The SIM card slot only takes micro size. SIM with Data Plan is not included in the product package.
2. The built-in cellular network modem module works with frequency bands supported by most carriers. Frequency Bands Supported are - 2G (GSM 850, GSM900, GSM1900); 3G WCDMA (B1, B2, B4, B5, B8); 4G LTE (B1, B2, B4, B5, B7, B8, B12, B13, B17, B19, B25, B26, B38, B41);
3. Only carriers who support bands listed above can allow S8 to access the network. Even if the frequency bands in the above list are supported, the operator's communication base station does not cover the places your vehicle stays, S8 will not be able to access it. You can visit Wikipedia to learn more about LTE bands supported by local carriers. International buyers need to check the frequency bands compatibility with your local carriers/operators before placing order.

• Countless Android apps from Google Play Store and our pre-installed GPS Tracking App (TrackHU)

1. More than 1000 apps from Google Play Store are compatible with S8 Series, especially media/entertainment apps and navigation apps in the category of "Auto & Vehicles". Very few app developers may specify devices/system environments that are allowed to install or run their apps, which results in the inability to install or run on any Android car stereos. Netflix is the case. We are committed to delivering the best for our customers, constantly developing exclusive apps for Android head units. We're excited to introduce our GPS Tracking App (TrackHU) on S8.
2. TrackHU app is simplifies car locating with real-time vehicle tracking on a user-friendly map. Customize alerts, set geofences, access analytics, and view past data, speed, and distance. Enjoy 24-hour security, tracking your car from anywhere in the world. Activate GPS and network and scan to access the TrackHU Manager webpage. All the information you need is right at your fingertips. Stay tuned for more exciting developments as we continue to enhance your driving experience!

• Versatile Connectivity - S8 MS has lots of inputs & outputs customized for working better in a vehicle

1. Connect to a specific USB On dash 1080P DVR camera for video preview & playback; 2.Connect to a specific USB TPMS tire pressure monitor system. When one or more tires are under-inflated, it will pop up a prompt warning on the S8 screen, and even emit a prompt tone as a reminder; 3.Connect to a rearview camera with CVBS & HD video signal out for safe parking; 4.Connect to your Android / iOS smartphone via USB/ WiFi and using CarbitLink to cast what's displayed on the phone to S8's screen; 5.Connect to your iOS phone via USB or Bluetooth for running wired or wireless CarPlay and Android Auto, which seamlessly integrates your smartphone (iOS & Android) with the S8's built-in display and allows you to make phone calls, access your music, send and receive messages, get directions; 6.Connect to an OBD II Diagnostic Scanner / Engine Code Reader via Bluetooth; 7. Compared with single Bluetooth, dual Bluetooth makes communication tasks between multiple Bluetooth connections much more balanced and stable. 8.Connect to Play Station game consoles, TV Boxes, and other devices with HDMI output by using our AC-HAV50 HDMI to AHD Video Converter, Support HDMI 1.4., to enjoy exciting games and stream your favorite shows just in the car. 9.Connect to headrest monitors by using USB Video Output Adaptors (AC-AHV68: USB to HDMI adaptor; AC-AHV48: USB To RCA adaptor; Both are sold separately), and what is displayed on the S8 screen can be synchronized to headrest monitors.

Dual Bluetooth chips inside, connectable to more Bluetooth-based devices, customized Bluetooth 5.0 and voice assistant interface

• Bluetooth 1 supports call/answer functions and A2DP audio streaming, synchronizing contacts and recent records when connected to a smartphone. It features "Quick Search" and "Add to Favorites" for easy dialing. Noise Cancellation Technology reduces background noise and echo during calls, eliminating the need to shout.

• Bluetooth 2 enables tethering for internet, and connects to devices like gamepads, OBD2 scanners, and TPMS. The dual Bluetooth system allows up to 3 simultaneous connections (one for audio and two for data).

• The customized Bluetooth in S8 can activate phone voice assistants (Siri, Google Assistant) via Bluetooth. Users can use screen buttons, a steering wheel, or our AC-44F8 remote to send messages, make calls, and control music by voice, enhancing safety and convenience.
