ATOTO F7 WE Double Din Car Stereo - Wireless Trips! Fun Trips!

Product Information

Looking for an upgraded experience? Our latest A5L Double Din Car Stereo features an Android system with internet access (WiFi, Bluetooth, and USB), offering more flexibility and convenience than the F7. Upgrade today for a smarter and more connected drive—just search "A5LG2A7TS01" in our store!

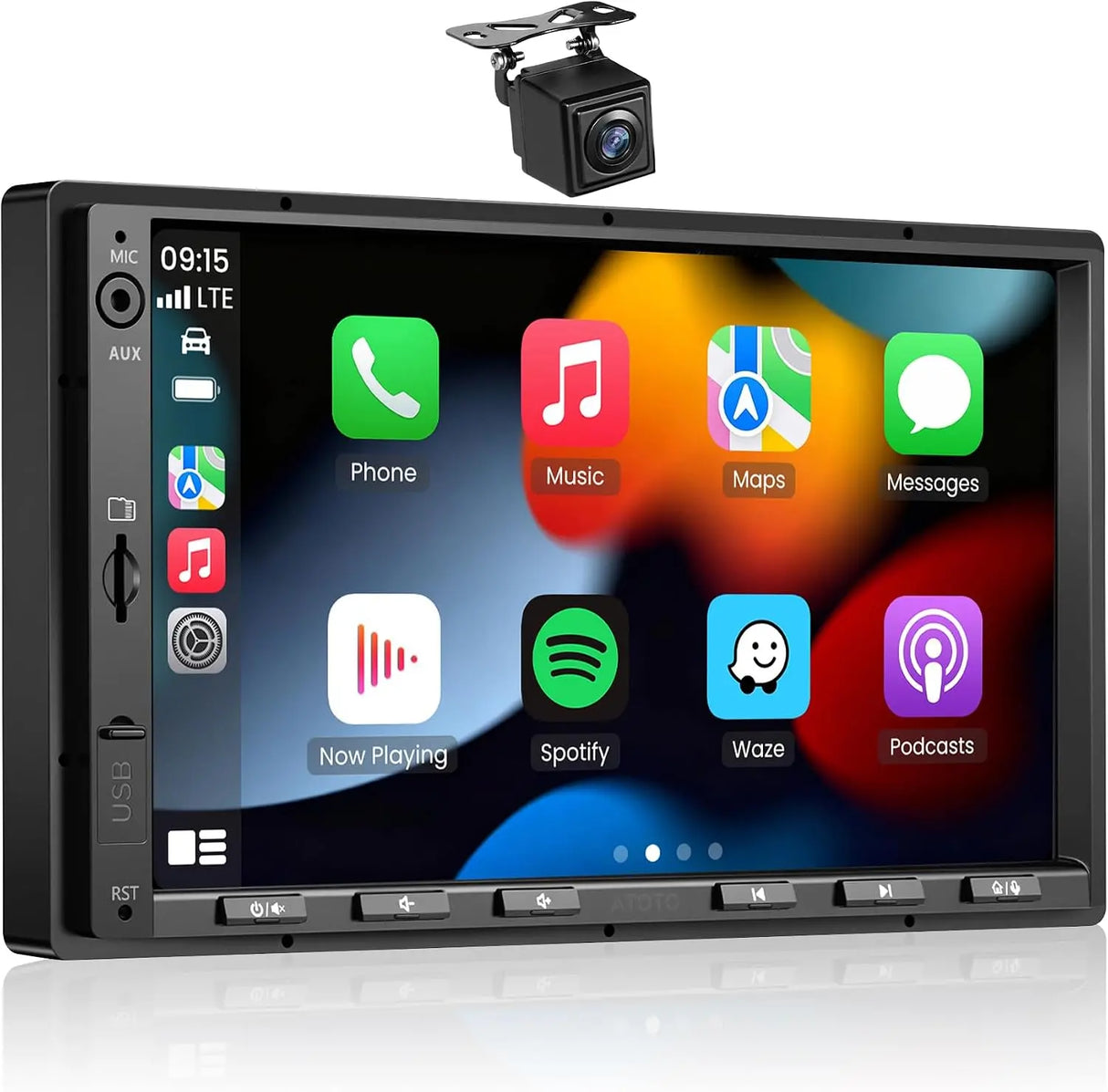

1. Product Version: F7 Wireless Edition (WE). Model: F7G2A7WE-S01; Mounting style: UDH07D (Universal Double DIN Car Stereo with a 7-inch Display) The F7 series evolve from SA102, with more user-friendly functions.
2. WIRELESS & wired CarPlay and WIRELESS & wired Android Auto: (compatibility information is specified in the corresponding sections below)
3. Full HD 7" 1024*600 IPS: display screen with a 178° full-viewing angle, outstanding brightness, clear viewing even in broad daylight, never miss an important prompt; 5-Touch Capacitive Touchscreen
4. Max. 4*45W, RMS 4*24W built-in amp: (Vcc=14.4v, THD=10%, drives 4-8 ohm speakers); 10-band EQ with 7 presets
5. Navigation: F7G2A7WE comes with a specific hardware solution to integrate iOS CarPlay or Android Auto into its system so that you can run iOS Maps or Google Maps/Waze etc. on the big HD screen, as long as they are available on your phone

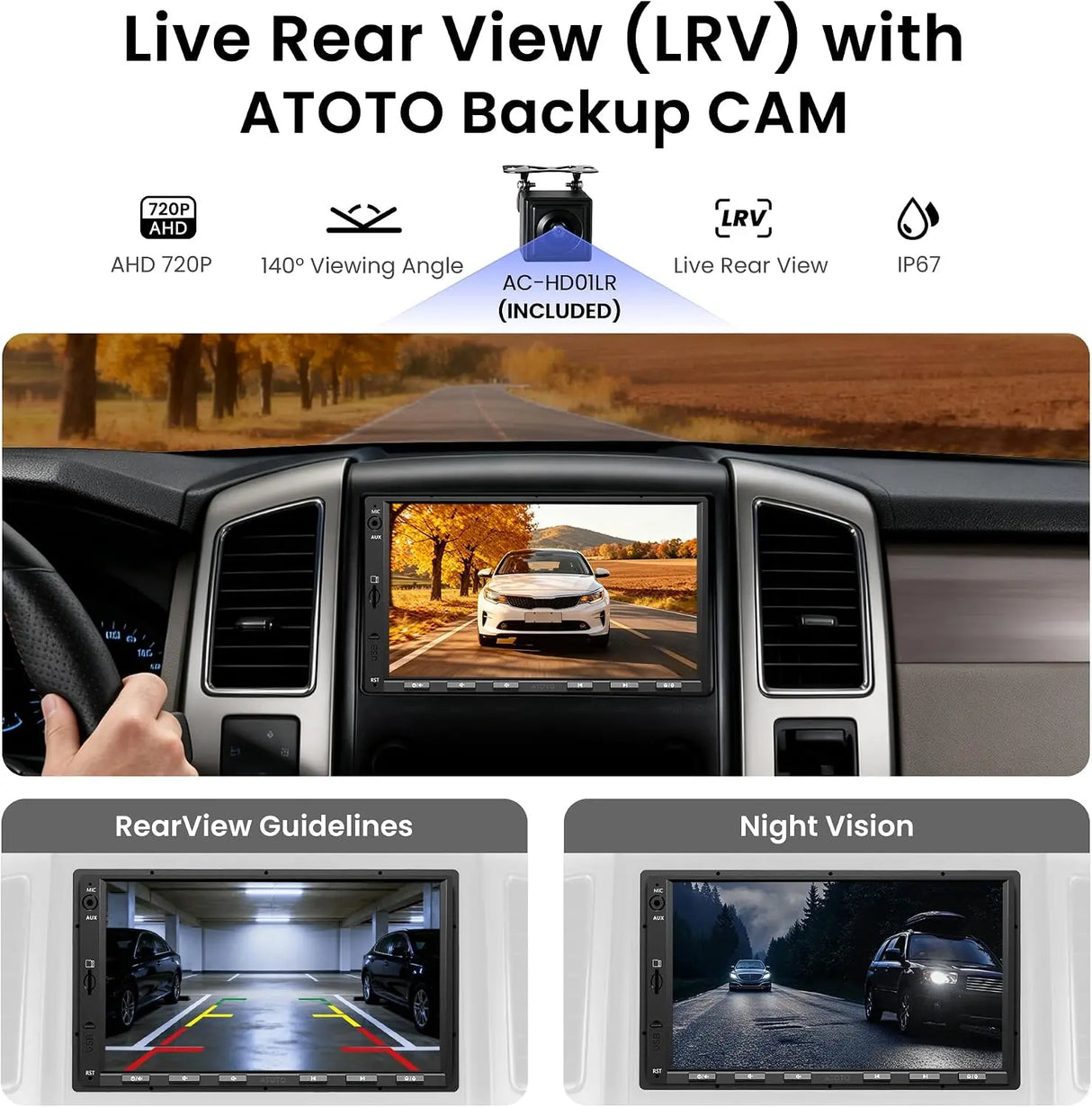

6. HD 720P Front and Rear View Input with Live Rear View: you can check the front view and the rear view at any time, making driving safer (ATOTO AC-HD01LR rearview camera is required for LRV, included)

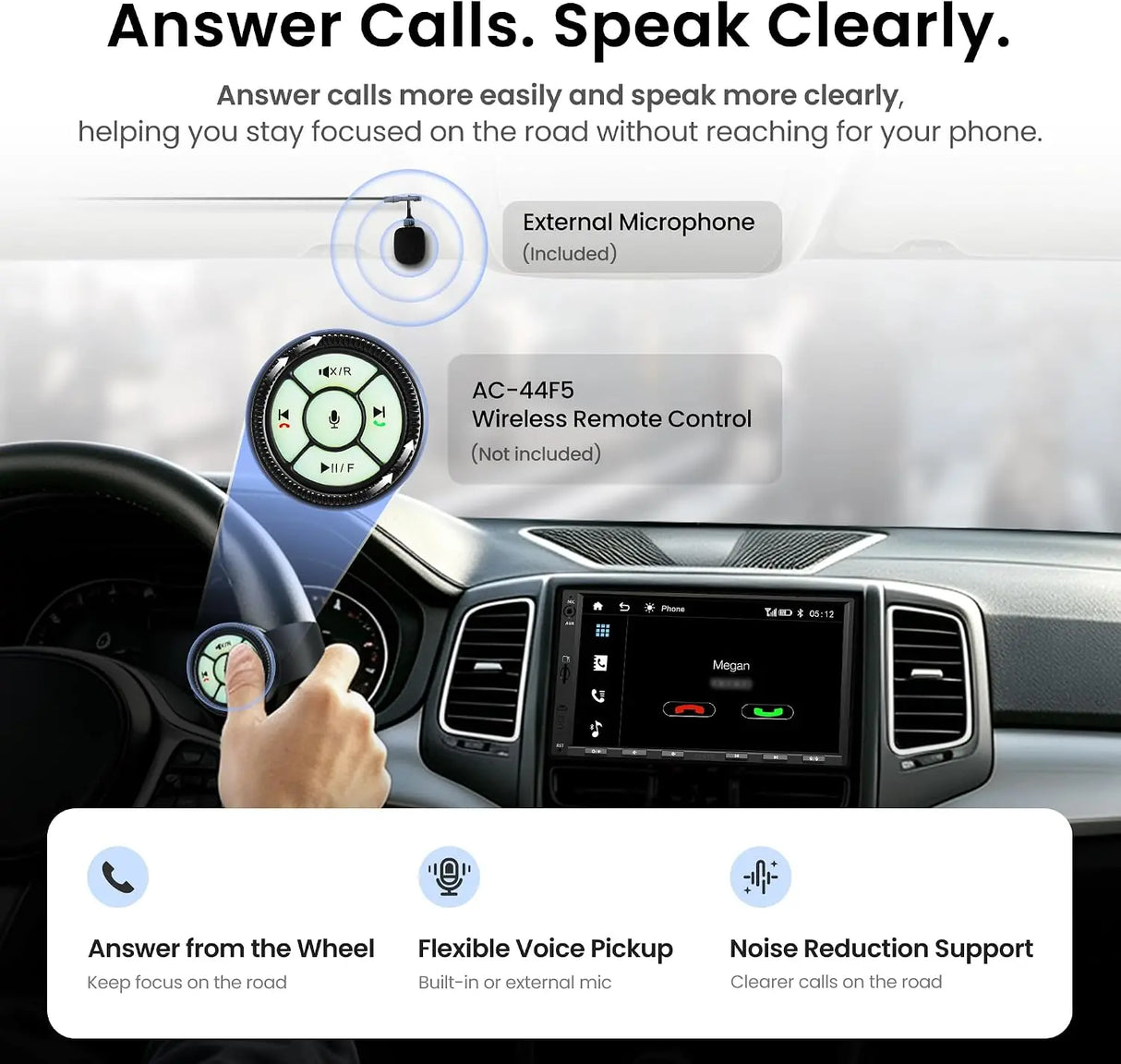

7. Bluetooth 5.3: supports hands-free calls and streaming music; safer driving when you can answer calls/hang up, play/pause, switch tracks, adjust the volume, etc. on the head unit, with the steering wheel controls, or with ATOTO AC-44F5 wireless remote (not included)
8. Radio tuner: Built-in FM/AM Radio Tuner
9. 6 physical buttons: with 8 functions in total enable you to perform simple tasks such as turning down the volume during driving with ease
10. Constant firmware update: ATOTO does not stop developing new firmware versions to add new features and reduce bugs. You can get them when available.

Inputs, Outputs & Slots

1. Inputs: 3 video inputs, Reversing Camera Input, AUX Audio/Video In & Front Camera Video In, can process 720P HD video signals. For reversing camera input, you can connect a specified ATOTO HD rearview camera to F7G2A7WE for 720P video display (most other head unit brands can only process CVBS 480-600 lines video signals); For F7 WE head units, the specified rearview camera is AC-HD01LR (included); AC-HD03LR is not compatible
2. Outputs: 2 RCA Headrest Video Outputs; 4-CH RCA Audio Out (4v) for connecting to a factory/aftermarket amplifier; Separate Subwoofer Out (4v)
3. External storage devices: One Micro SD slot - to store media files, up to 512GB; 2 USB interfaces - one for phone connection (CarPlay/Android Auto/AutoLink) and one for external storage devices and media playback. The latter reads up to 2TB SSD. Both SD & SSD must be in FAT32 or NTFS format

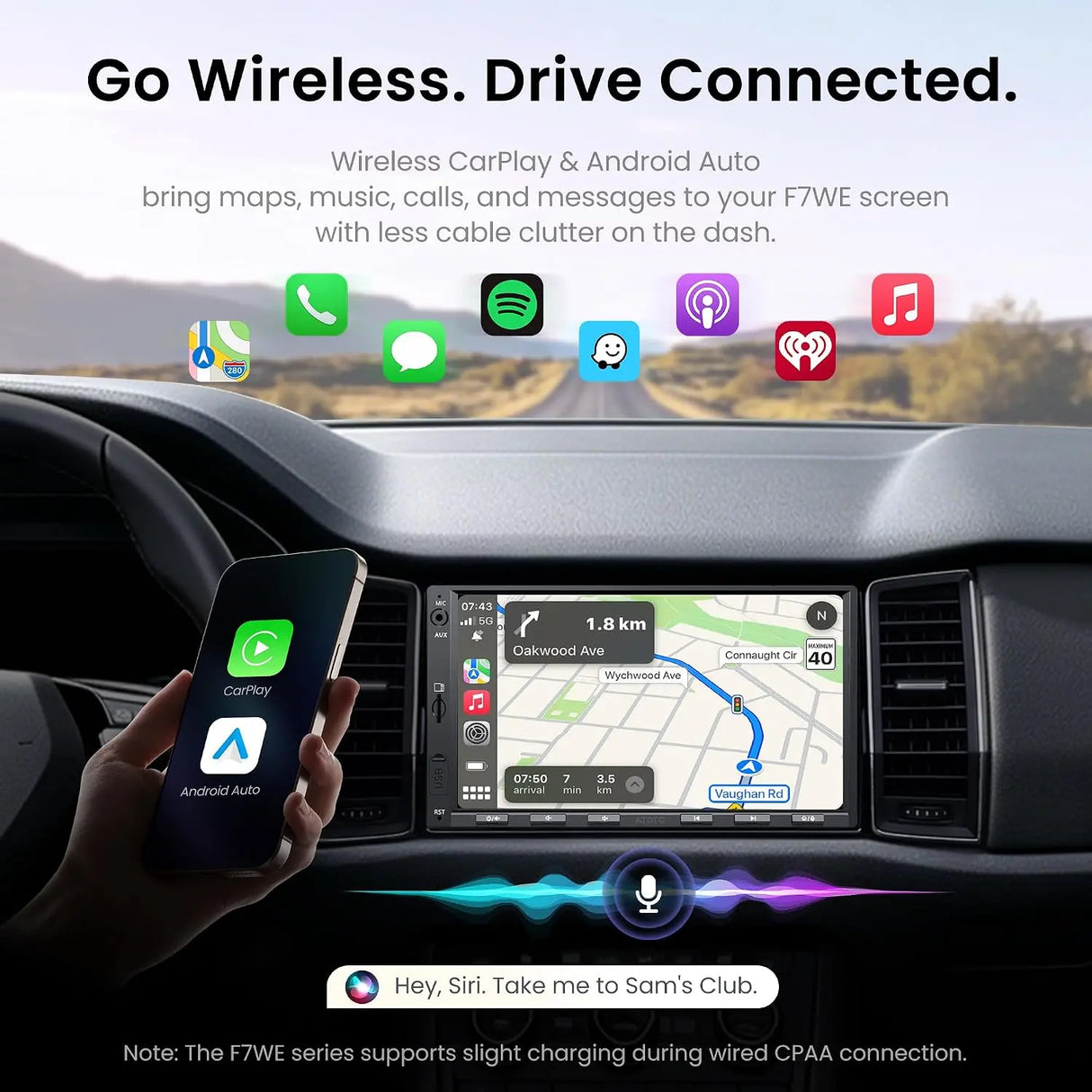

WIRELESS CarPlay and Android Auto!

The advantages of CarPlay /Android Auto on F7 WE Car Stereo

1. Wireless is simply better:No more worries about where to put your plugged phone. No more search for a holder which you find to be superfluous anyway. No more entangled cords to distract you. Free at last!
   1. Fast and automatic connection: For wireless CarPlay/Android Auto, the Buetooth connection is quick. And after you make the connection for the first time, it will all be automatic. For wired CarPlay/Android Auto, once you plug your iOS Phone/Android phone into the "Phone Link" port on F7 WE, it takes about 3 seconds for CarPlay /Android Auto to be automatically launched. A true plug-n-play function.
2. Stable data transmission: Thanks to the premium hardware inside, F7 WE double din car stereo is more than capable of delivering stable and reliable data transmission, both wirelessly (Wi-Fi) and wiredly (with USB), which is a strong bolster for you in driving.
3. Great Performance Across All CarPlay/Android Auto Functions: CarPlay/Android Auto has revolutionalized the way we drive by enabling us to safely use the iOS Phone/Android phone while driving. Now we can make calls, send/receive messages, listen to music/radio/podcasts/news/audiobook... on the head unit while driving really conveniently. This, in turn, requires a head unit that can adequately meet the demands of these functions in terms of audio and visual performance. Regarding audio, on F7 WE, the max. 4*45W amplifier with RMS 4*24W (Vcc=14.4v,THD=10%) makes sure that whether you are making a call, listening to your favorite music or podcasts and so on, you can hear things clearly at a comfortable volume, powerful yet without any distortion. And the included microphone? All who have used it think it's good and very clear. Visually, the full HD 7" 1024*600 IPS screen ait is easy and smooth to operate on.
4. You phone battery is finally safe: If you get in the car with low battery on your iOS Phone/Android phone, and you start driving using CarPlay/Android Auto, on many head units with only wired CarPlay/Android Auto, after the trip, the battery is barely charged, if at all. This problem does not exist with F7 WE. The reasons are with wireless CarPlay/Android Auto, you can drive using CarPlay/Android Auto while plugging your iOS Phone/Android phone into the USB port dedicated for charging in your vehicle, or putting it on the charging dock station.
5. If you wish to use navigation in CarPlay/Android Auto while listening to FM/AM radio or USB music, it is highly recommended that you purchase the ATOTO F7 XE series. For audio mixing in CarPlay only, you can buy the ATOTO A6 PF, A6 PP series.

Important:

1. CarPlay iOS Phone compatibility: Wired CarPlay is compatible with iPh0ne 5 or later models with iOS 7.1 or higher. Wireless CarPlay is compatible with iPh0ne 5 or later models with iOS 9.0 or higher.
2. Android Auto phone compatibility: Wired Android Auto is compatible with phones running Android 6.0 or higher. For wireless Android Auto, Compatible with Any Phone with Android 11.0.
3. Original USB cable for wired connection: If you choose to use wired CarPlay or wired Android Auto, factory/original USB cables are required. Non-manufacturer made USB cables may easily cause connection issues, such as black screen after minutes of playback, connection failure or unstable phone connection.

Vehicle Fit:

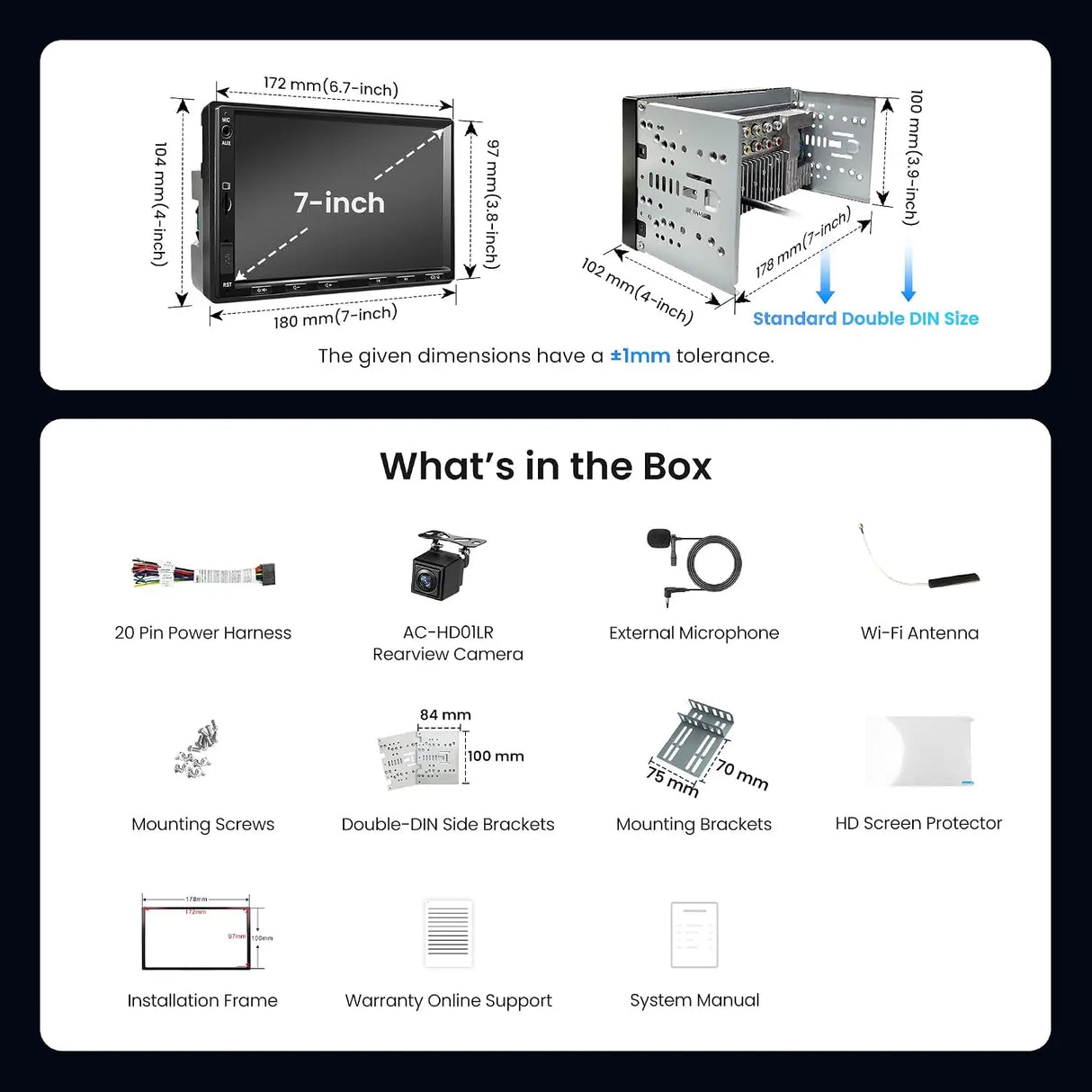

• True 7-inch screen: Typically, North American dashboard mounting frame suppliers (Metra, Scosche, PAC, etc.) provide double DIN mounting frames with a 174 mm*98 mm opening, limiting the screen size of aftermarket head units to 6.75-inch or smaller (false 7-inch). ATOTO is the first manufacturer to introduce true 7-inch Android head units with a minimal front panel size of 172 mm*97 mm (fitting the mounting frames commonly available). If needed, an extra frame adapter is also included to expand it to 178 mm*101.5 mm.
• Compatible with 3rd-Party dash kits: The ISO Standard chassis size for double DIN head units is 178 mm*100 mm. In the case of the frontal faceplate, however, there is no such standard. F7G2A7WE, with its faceplate size of 172 mm*97 mm, is compatible with products from most North American dash kit brands (Metra, Scosche, PAC, etc.).
• Compact chassis for more room: The chassis is only 50-mm deep, shorter than the typical depth. Therefore, there is a larger space for cabling and other accessories.
• Extra accessories you may need to purchase: As this is a universally fit head unit, extra accessories may be required to finish installation in a specific vehicle (not provided in the package). It is the buyer's responsibility to prepare them (if applicable). They may include (but are not limited to) a dash frame kit, a wiring harness, a radio antenna adapter, a data interface, etc.

Notice: Optional parts for working with ATOTO F7 are sold separately:

1. ATOTO CA-AEC02 Plug-n-Play 4 Channel Car Amplifier (60 watts RMS x 4), a punchy audio booster with SPDIF input;
2. ATOTO AC-44F5 Steering wheel control wireless Remote. *For more accessories, please visit the ATOTO Brand Store on Amazon.
3. ATOTO AC-HAV50 HDMI to AHD Video Converter, Support HDMI 1.4. Compatible with Play Station game consoles, TV Boxes, and other devices with HDMI output.
4. ATOTO CS-101SW 10" Slim Amplified Subwoofer, 400 Watts MAX peak power, 150 Watts MAX RMS power, with low & high-level inputs and remote bass control, compatible with most vehicle models.
5. ATOTO CS-651DST 6.5" 2-Way Component Speaker System pumps out up to 250 watts peak power and 70 watts RMS for OEM car audio upgrades.

• All ATOTO optional accessories/parts are available for purchase at [visit the ATOTO store] near the page title.
