Product Information

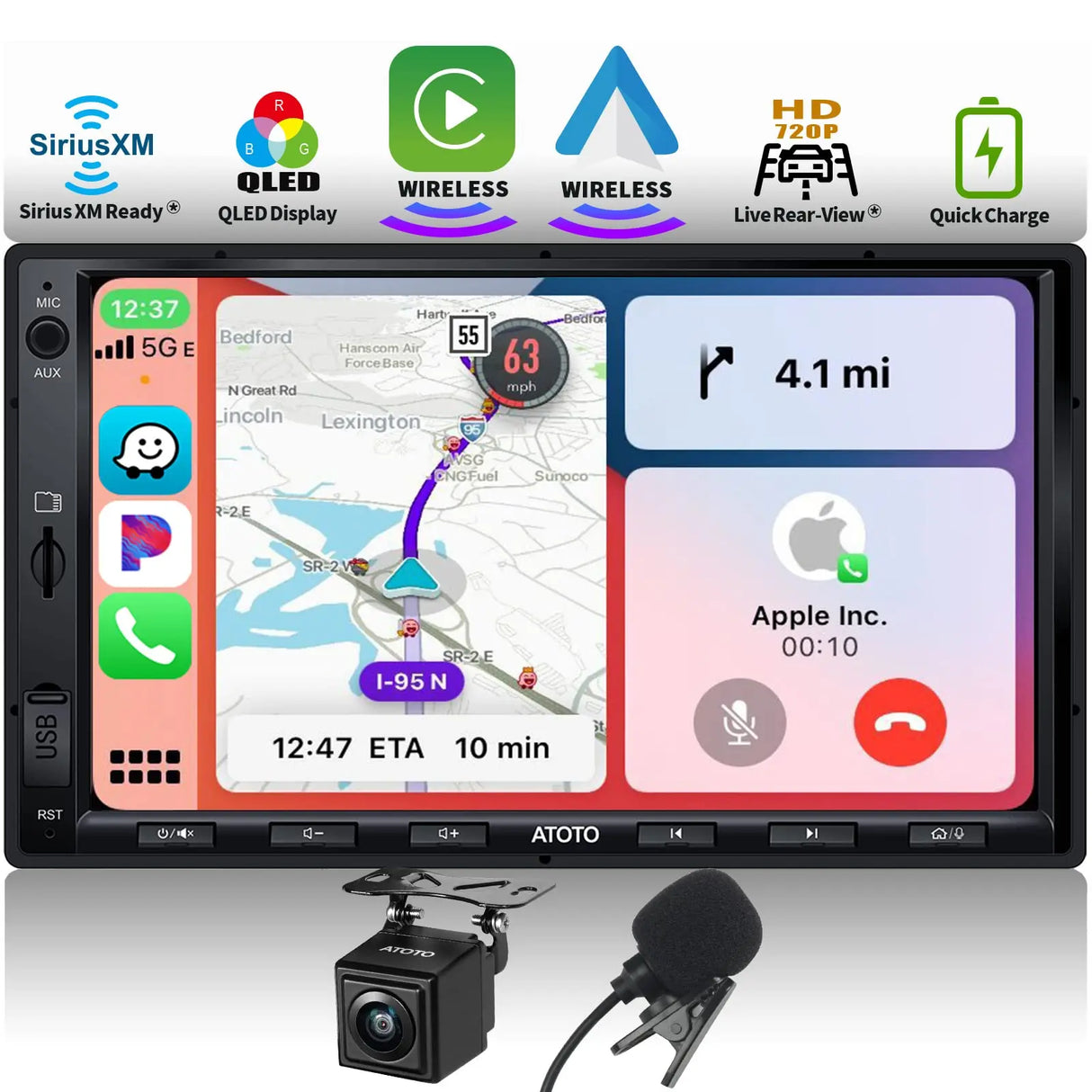

• Product Version: F7 Extreme Edition (XE). Model: F7G2A7XE-S01; Operating System: Linux 4.9.217; Mounting style: UDH07D (Universal Double DIN with a 7-inch Display)
• Supports WIRELESS & wired CarPlay and WIRELESS & wired Android Auto (compatibility information is specified in the corresponding sections below) (IMPORTANT: For wired Android Auto/CarPlay connection, users should use the factory/original USB cable that came with the phone, non-manufacturer-made USB cables may lead to connection issues like a black screen, or an unstable connection.)

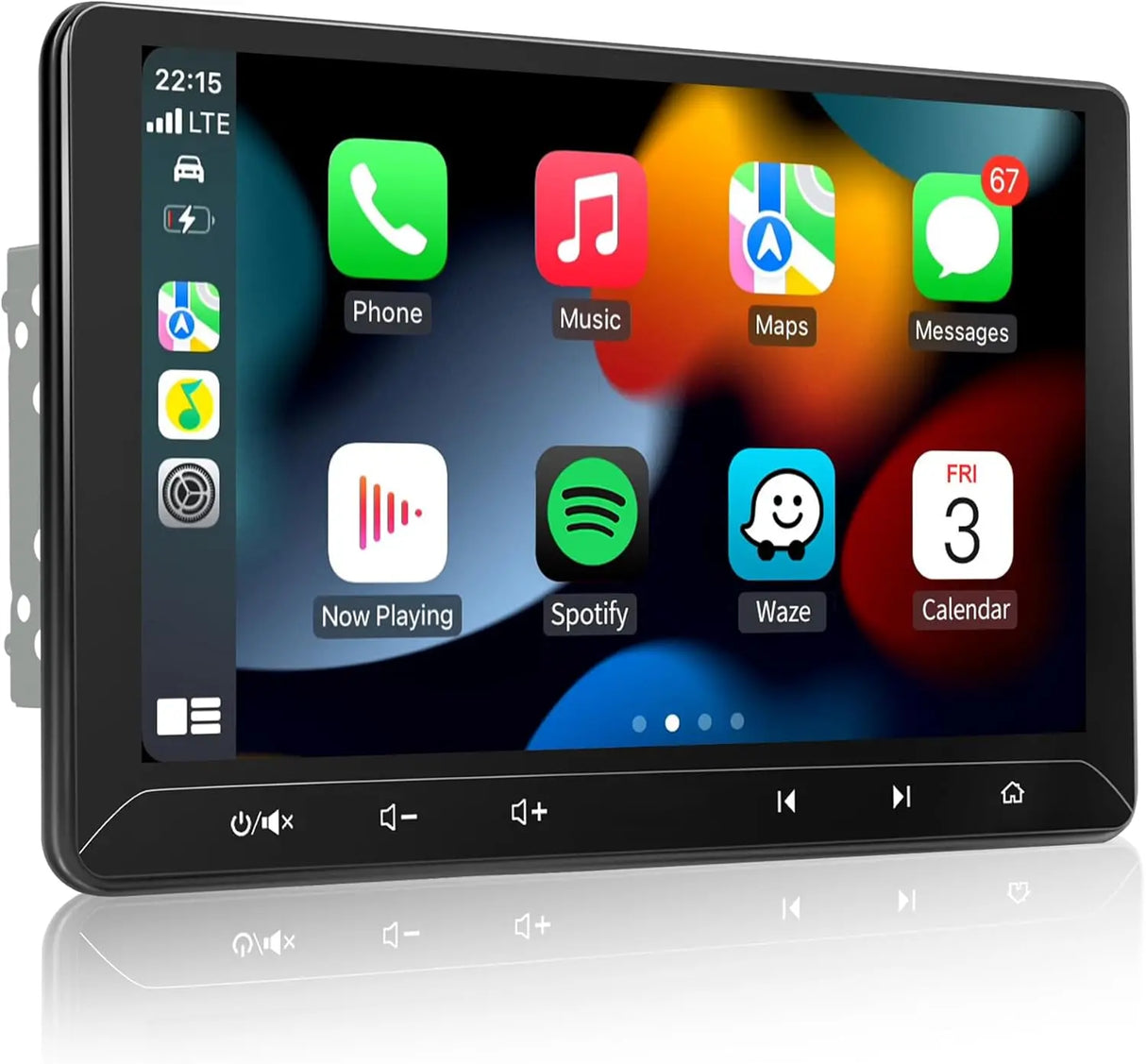

• Full HD 7" 1024*600QLED display screen with a 178° full-viewing angle (brightness 600cd/m2); 5-Touch Capacitive Touchscreen; Compatible with SiriusXM (a Connect Vehicle Tuner and subscription are required)
• Bluetooth 5.0, supports hands-free calls and streaming music; safer driving when you can answer calls/hang up, play/pause, switch tracks, adjust the volume, etc. on the car stereo, with the steering wheel controls, or with ATOTO AC-44F5 wireless IR remote; Radio tuner: Built-in FM/AM Radio Tuner with RBDS

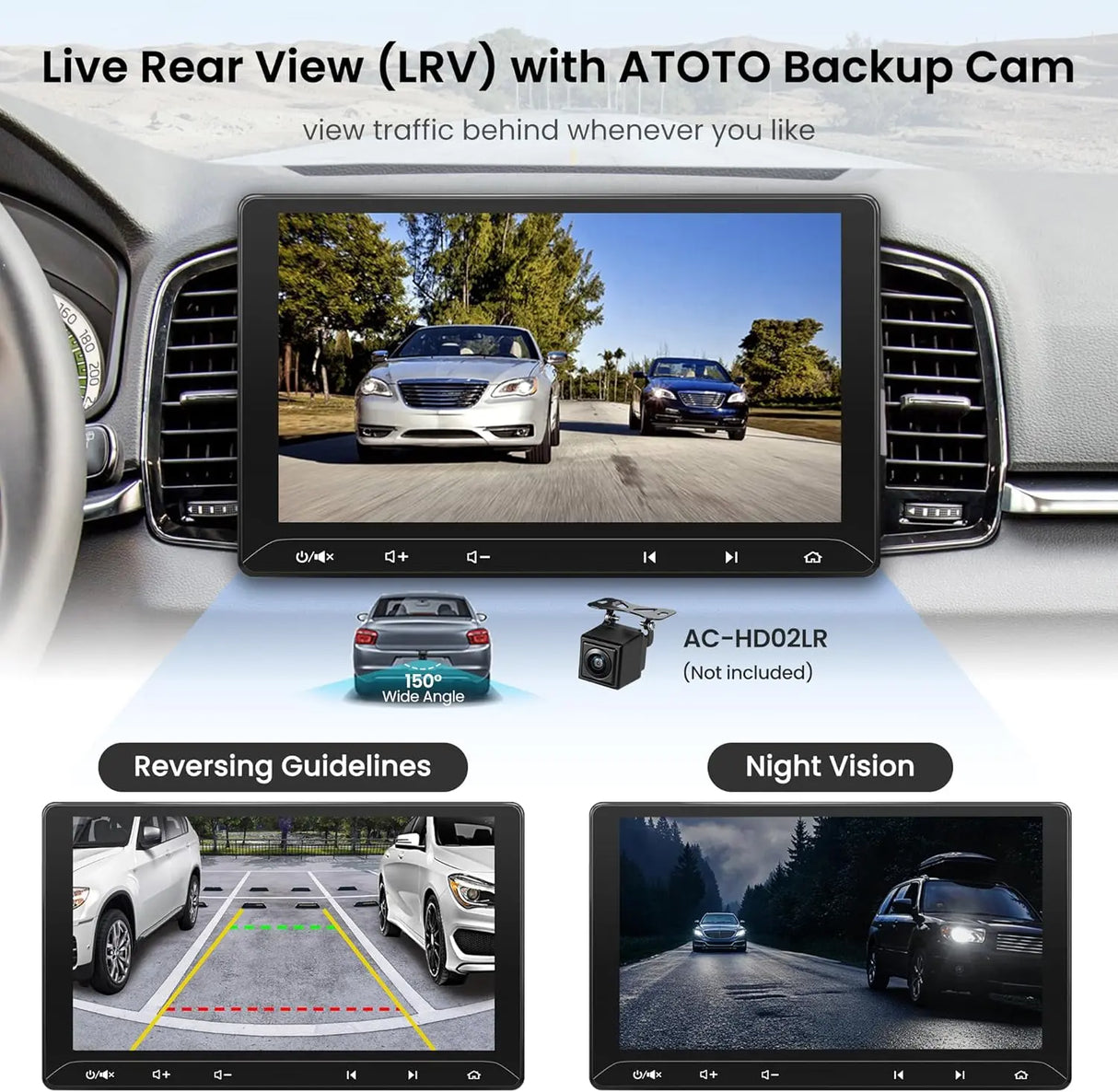

• HD 720P rearview video display with Live Rear-View (LRV) feature (ATOTO AC-HD02LR rearview camera is required, included); Built-in pre-amplifier: max. 4*49W with RMS 4*29W (Vcc=14.4v, THD=10%); 10-band EQ with 7 presets
• GPS/Navigation: F7G2A7XE-S01 comes with a specific hardware solution to integrate iOS CarPlay or Android Auto into its system so that you can run iOS Maps or Google Maps/Waze on the big HD screen, as long as they are available on your phone
• Fast charging: powered by inner PMS firmware, F7G2A7XE-S01 can deliver power to smartphones faster (max. 1.5 A) than other car stereo brands (300mA - 500mA) while running wired CarPlay/Android Auto; data transmission & phone charging can be done simultaneously; 6 physical buttons with 8 functions in total enable you to perform simple tasks such as turning down the volume during driving with ease

Inputs, Outputs & Slots

• 3 video inputs, Reversing Camera Input, AUX Audio/Video In & Front Camera Video In, can process 720P HD video signals. For reversing camera input, you can connect a specified ATOTO HD rearview camera to F7G2A7XE-S01 for 720P video display (most other car stereo brands can only process CVBS 480-600 lines video signals); For F7 XE car stereos, the specified rearview camera is AC-HD02LR (included); AC-HD03LR is not compatible
• 2 RCA Headrest Video Outputs; 4-CH RCA Audio Out (4v) for connecting to a factory/aftermarket amplifier; Separate Subwoofer Out (3v full range) One Micro SD slot - to store media files, up to 512GB; 2 USB interfaces - one for phone connection (CarPlay/Android Auto/AutoLink) and one for external storage devices and media playback. The latter reads up to 2TB SSD. Both SD & SSD must be in FAT32 or NTFS format

Vehicle Fit:

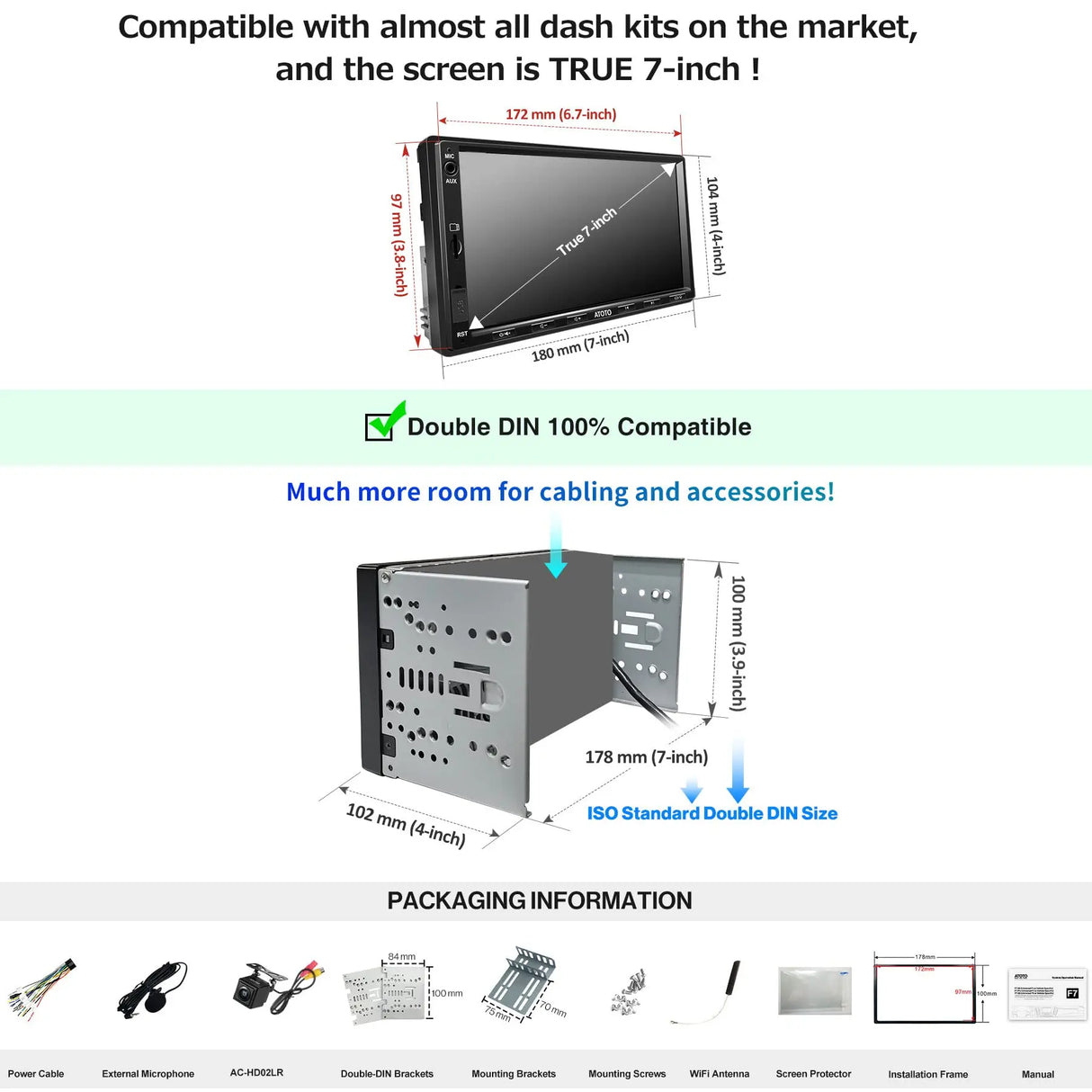

• True 7-inch screen. Typically, North American dashboard mounting frame suppliers (Metra, Scosche, PAC, etc.) provide double DIN mounting frames with a 174 mm*98 mm opening, limiting the screen size of aftermarket car stereos to 6.75-inch or smaller (false 7-inch). ATOTO is the first manufacturer to introduce true 7-inch Android car stereos with a minimal front panel size of 172 mm*97 mm (fitting the mounting frames commonly available). If needed, an extra frame adapter is also included to expand it to 178 mm*101.5 mm.
• The ISO Standard chassis size for double DIN car stereos is 178 mm*100 mm. In the case of the frontal faceplate, however, there is no such standard. As a result, many users have issues mounting car stereos from other brands with dash kits commonly available on the North America market. F7G2A7XE-S01, on the other hand, with its faceplate size of 172 mm*97 mm, is compatible with products from most North American dash kit brands (Metra, Scosche, PAC, etc.).
• The chassis is only 50-mm deep, shorter than the typical depth. Therefore, there is a larger space for cabling and other accessories. As this is a universal fit car stereo, extra accessories may be required to finish installation in a specific vehicle (not provided in the package). It is the buyer's responsibility to prepare them (if applicable). They may include (but are not limited to) a dash frame kit, a wiring harness, a radio antenna adapter, a data interface, etc.

Notice: Optional parts for working with ATOTO F7 are sold separately: 1. ATOTO CA-AEC01 Compact 4 Channel Car Amplifier (47 watts RMS x 4), a plug-n-play sonic upgrade for your vehicle; 2. ATOTO CA-AEC02 Plug-n-Play 4 Channel Car Amplifier (60 watts RMS x 4), a punchy audio booster with SPDIF input; 3. ATOTO AC-44F5 Steering wheel control IR Remote; 4. ATOTO AC-HAV50 HDMI to AHD Video Converter, Support HDMI 1.4. Compatible with Play Station game consoles, TV Boxes, and other devices with HDMI output; 5. ATOTO CS-101SW 10" Slim Amplified Subwoofer, 400 Watts MAX peak power, 150 Watts MAX RMS power, with low & high-level inputs and remote bass control, compatible with most vehicle models. All ATOTO optional accessories/parts can be found here: amazon.com/atoto.

WIRELESS CarPlay and Wireless Android Auto!

The advantages of CarPlay/Android Auto on F7 XE

1. Wireless is simply better:No more worries about where to put your plugged phone. No more search for a holder which you find to be superfluous anyway. No more entangled cords to distract you. Free at last!
2. Fast and automatic connection: For wireless CarPlay/Android Auto, the Bluetooth connection is quick. And after you make the connection for the first time, it will all be automatic. For wired CarPlay/Android Auto, once you plug your ios Phone/Android phone into the "Phone Link" port on F7 XE, it takes about 3 seconds for CarPlay/Android Auto to be automatically launched. A true plug-n-play function.
3. Stable data transmission: Thanks to the premium hardware inside, F7 XE is more than capable of delivering stable and reliable data transmission, both wirelessly (Wi-Fi) and wiredly (with USB), which is a strong bolster for you in driving.
4. Great Performance Across All CarPlay/Android Auto Functions: CarPlay/Android Auto has revolutionalized the way we drive by enabling us to safely use the ios Phone/Android phone while driving. Now we can make calls, send/receive messages, listen to music/radio/podcasts/news/audiobook... on the head unit while driving really conveniently. This, in turn, requires a head unit that can adequately meet the demands of these functions in terms of audio and visual performance. Regarding audio, on F7 XE, the max. 4*49Wamplifier with RMS 4*29W (Vcc=14.4v,THD=10%) makes sure that whether you are making a call, listening to your favorite music or podcasts and so on, you can hear things clearly at a comfortable volume, powerful yet without any distortion. And the included microphone? Well, in our own customer's exact words:"I'm told that the sound is very clear." Visually, the full HD 7" 1024*600 QLED screen (brightness 600cd/m2), other than its fantastic ultra-clear color rendition, offers great visibility even in broad daylight. Also, as a 5-touch capacitive touchscreen, it is easy and smooth to operate on.
5. You phone battery is finally safe: If you get in the car with low battery on your ios Phone/Android phone, and you start driving using CarPlay/Android Auto, on many head units with only wired CarPlay/Android Auto, after the trip, the battery is barely charged, if at all. This problem does not exist with F7 XE. The reasons are a). with wireless CarPlay/Android Auto, you can drive using CarPlay/Android Auto while plugging your ios Phone/Android phone into the USB port dedicated for charging in your vehicle, or putting it on the charging dock station. b). with wired CarPlay/Android Auto, by design, F7 XE is equipped with advanced PMS to charge your ios Phone/Android phone quickly when you use wired CarPlay/Android Auto (plugged into the dedicated "Phone Link"port).
6. ATOTO F7 supports running CarPlay or Android Auto map navigation while playing FM/AM radio/USB music in the background. Be aware that not all car stereos can do this!

Important:

1. CarPlay ios Phone compatibility: Wired CarPlay is compatible with iPhone 5 or later models with iOS 7.1 or higher. Wireless CarPlay is compatible with iPhone 5 or later models with iOS 9.0 or higher.
2. Android Auto phone compatibility: Wired Android Auto is compatible with phones running Android 6.0 or higher. For wireless Android Auto, Compatible with Any Phone with Android 11.0, and Compatible with Samsung and Google phones with Android 10.0 (Google Pixel 4, Note 9, Note 20, and S10 have been tested to be compatible with wireless Android Auto on F7 WE). It also Compatible with below Samsung phones with Android 9.0 (S8 and Note 8 have been tested to be compatible with wireless Android Auto on F7 WE).
3. Original USB cable for wired connection: If you choose to use wired CarPlay or wired Android Auto, for fast charging, for instance, factory/original USB cables are required. Non-manufacturer made USB cables may easily cause connection issues, such as black screen after minutes of playback, connection failure or unstable phone connection.
