S8 Gen 3 (S8G2A79UN-S10) Car Stereo Android OS – Elevate Your Drive with Our DriveChat

DriveChat is continuously being developed, with updates released periodically. To get the latest DriveChat, please upgrade the app or system.

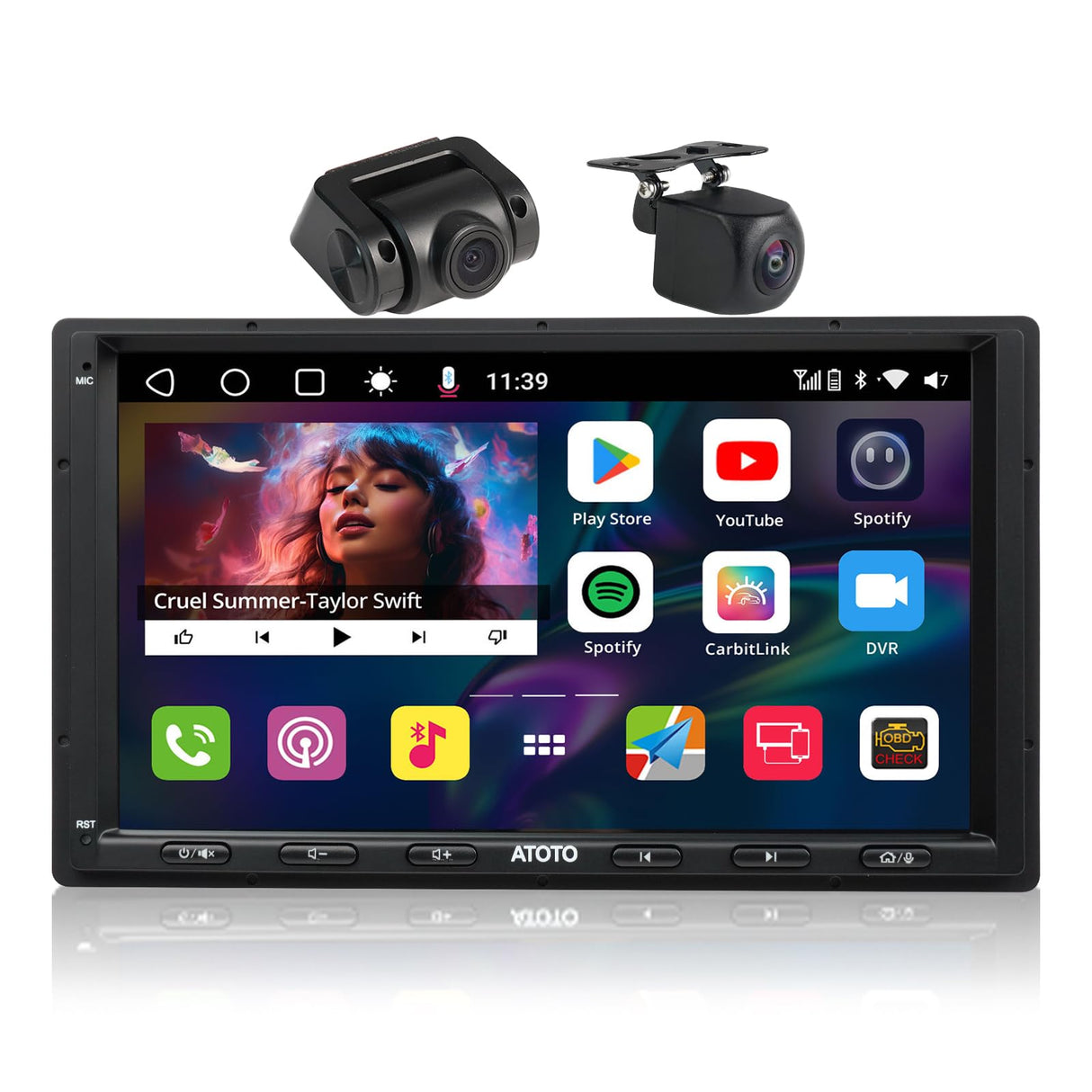

• Product Version: S8 Ultra New (Gen3) Universal Double-DIN Headunit with 7inch Display and Physical Keys. A new upgrade from the S8 UL, boasts 6G+128G Android, 4 internet access options (4G LTE,Wi-Fi hotspot, Bluetooth, and USB tethering). 1280*720 QLED screen with 178° Viewing Angle.
• System Information: SoC Chip: UIS 7862 ARM Cortex Octa-Core (up to 1.8GHz) CPU with ARM Mali-G52 MP2 GPU,advanced 12nm manufacturing process. System Version: Our AICE UI 11.0, which is developed & customized based on Android; System Language: English,German,French,Italian,Spanish,Portuguese,Japanese,Russian,Arabic,Polish,Korean,Dutch,Thai,Turkish,Ukrainian,Hebrew,Greek, Hungarian, Indonesian, Vietnamese, Chinese and more.

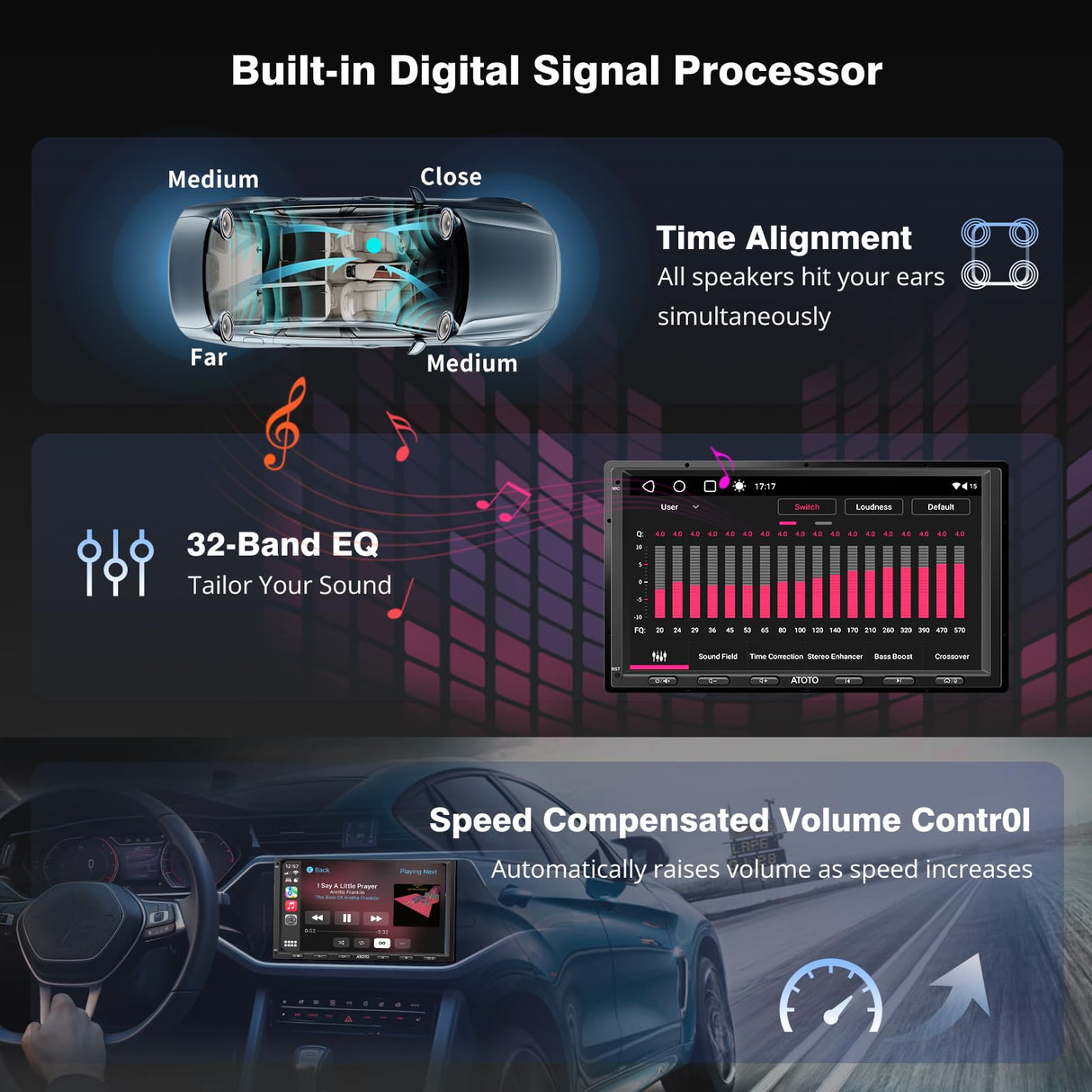

• DSP/ Pre-Amplifier : Built-in Digital Signal Processor allows you to set precise equalization, signal delay, bass boost, bass filter. Preset 9 EQ Modes, and 32 adjustable frequency bands (16 bands for front and 16 for rear). Built-in Peak 4*50W BTL Amplifier with RMS 4*29W (Vcc=14.4v, THD=10%), RCA 4V;
• DualBluetooth & Radio Tuner: Dual Bluetooth (Bluetooth 1(BT1) supports SBC and AAC codecs, and it supports HFP/HSP/A2DP/AVRCP/PBAP protocols; Radio tuner:Built-in high sensitivity FM/AM radio tuner with RDS/RBDS feature (and the radio station name will be displayed if available); Sirius XM is supported;
• QLED 7-inch 1280*720 Display: Full QLED 7 inch 1280*720 5-Touch Capacitive Touchscreen with 600cd/m2 QLED screen;The fully flat touch panel lets you easily tap anything even on the edge of the screen, featuring sleek-looking and highly responsive. 5-Touch Capacitive Touchscreen allows smooth c0ntr0ls like pinch to zoom, swipe and scroll in high accuracy with no laggy.
• Built-in GPS/Navigation/GPS Tracking: Built-in GPS Receiver module with an external GPS antenna and GGLE Maps app is installed as the default GPS map.Users may need to download offline map data for a specific area for offline navigation if preferred.Other maps/navigation apps (Waze,HereWeGo) from Google Play Store can also be installed; GPS Tracking-our featured App [TrackHU] to simplify the way to locate your car. With TrackHU app preinstalled, you can follow vehicles in real-time on a simple map,customize alerts and geofences,get analytics, see past data, speed, distance, and more.
• Phone Mirroring & Phone Integration Link: Phone Mirroring - CarbitLink app pre-installed,and it supports working with the latest iOS & Android devices (system firmware update may be required). Two options (USB /WiFi) are all available for connecting to Android smartphone and iOS phone;Phone Integration(wired / wireless CarPlay; wired / wireless Android Auto) - It seamlessly integrates your smartphone (iOS & Android) with the S8's built-in display, allowing you to make phone calls, access your music, send and receive messages, get directions(Note: for the wired CarPlay and Android Auto Connection on our S8 series headunits, please use the factory/original USB cable that comes with the phone).
• Some Other features: Fast System Boot-Start the car & access system within 2 seconds; Split Screen Display-Run a navigation map and another app (such as Youtube) on the same screen simultaneously; Digital Photo Frame option-Users can put memorable photos in the specified Gallery Folder and let them autoplay on S8's HD big screen with only a tap (or a hand gesture); Speed Compensated Volume Contr0l (SCVC)- When you increased in speed the headunit volume increased a certain percentage and when you slowed down, the volume dropped. This is to compensate for road noise; USB network tethering-sharing your phone data with S8 headunit via USB connection (CarbitLink app); Live RearView (LRV)-Now you can access rearview even if your vehicle in moving ahead.This could clear obstacles like passengers,headrests,and the vehicle's roof, improving the driver's rear view and eliminating blind spots.

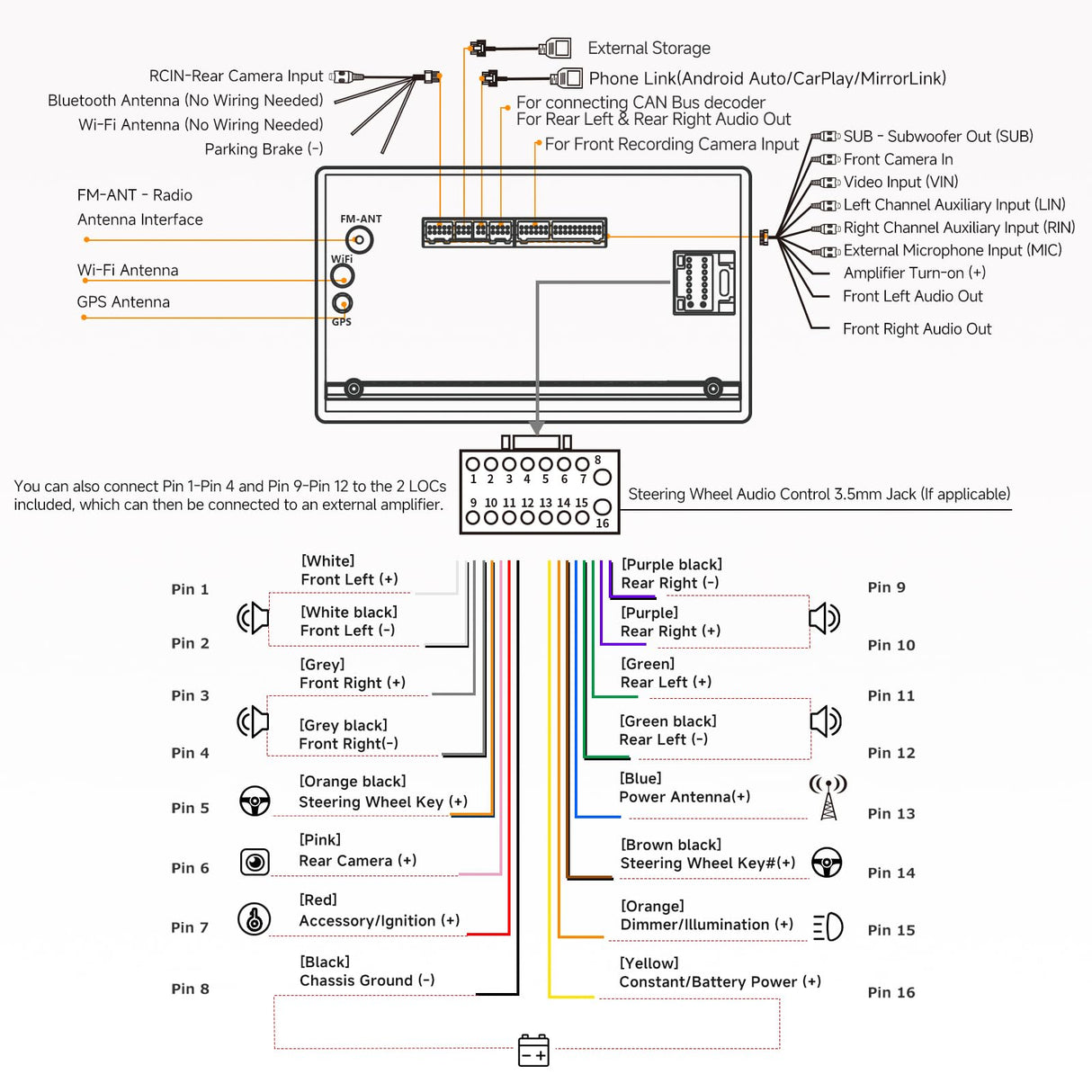

• Inputs, Outputs & Slots:

1. AUX Audio(L/R) /Video input; FCAM front camera video input; Rearview camera input (S8 can process 720P HD video signal, so you can connect a specific HD rearview camera to S8 for 720P video display);4-CH RCA Audio Out (4V) for connecting to factory/aftermarket amplifier; Separate Sub-woof Out (0.8v); To connect to a headrest monitor,you need to get an extra USB-to-HDMI or USB-to-RCA video output adapter (not included).
2. 2 USB interfaces for data communication, including reading USB Drive (read unlimited external storage devices,including portable SSD) & optional USB devices, and connecting phone for Mirror casting/CarbitLink or Phone Integration;
3. 4G SIM slot for Micro SIM card.

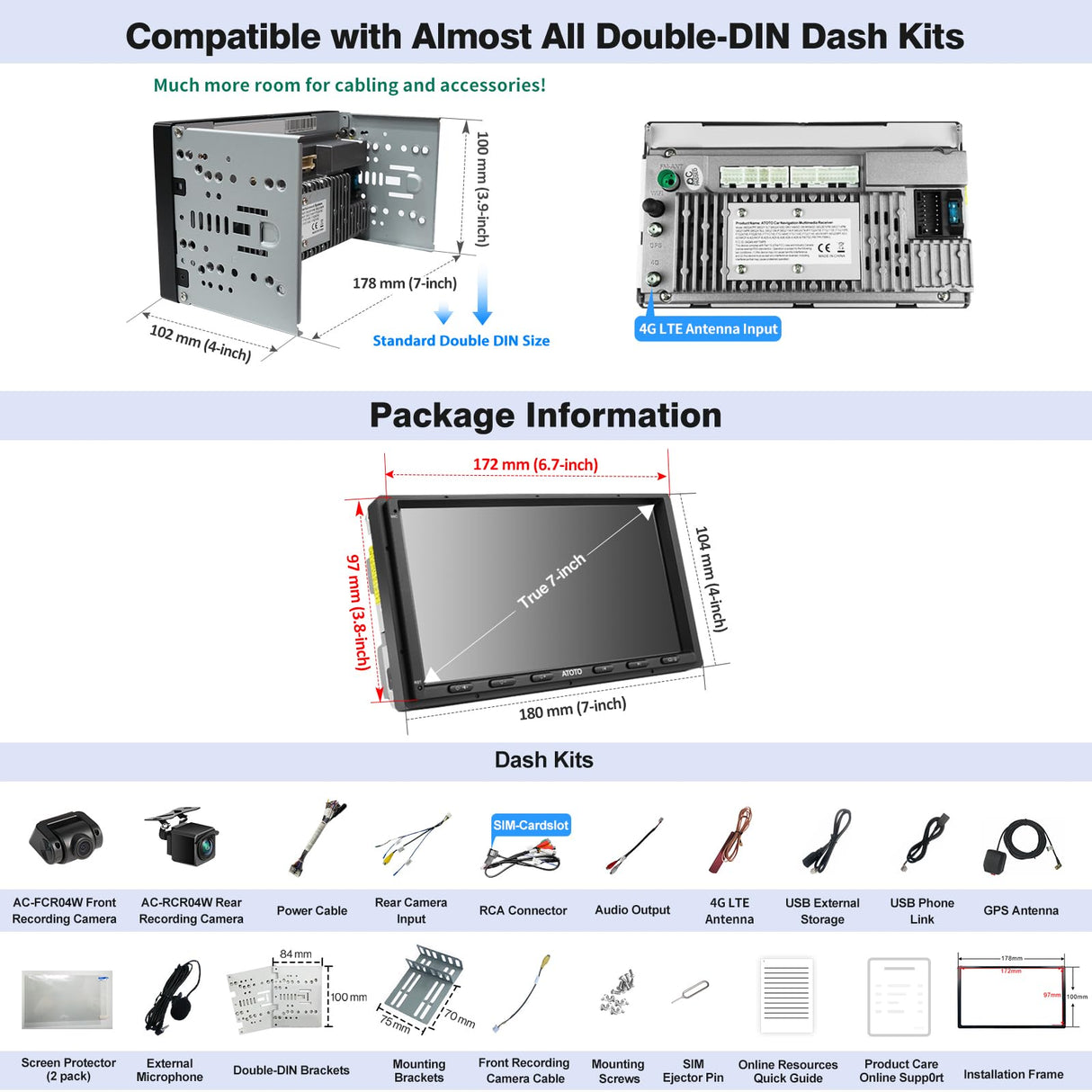

• Vehicle Fit: Compatible with almost all Double-DIN dash kits. The car stereo panel measures 7 inches (172mm x 97mm) and comes with an additional frame adapter to expand the size to 178mm x 101.5mm. Notice: Optional parts for working with our S8 UN (not inclueded):1. CA-AEC01 Compact 4 Channel Car Amplifier (47 watts RMS x 4); 2. CA-AEC02 Plug-n-Play 4 Channel Car Amplifier (60 watts RMS x 4); 3. AC-44P2 1080P On-dash DVR Camera; 4. AC-44F8 Steering wheel Remote;5. AC-4450 Bluetooth OBD II scanner /Code Reader; 6. AC-HD02LR HD Rear-view Camera;7. AC-UTP1 USB TPMS (Tire Pressure Monitoring Sensor) 8. Video Output Adaptor (AC-AHV68: USB to HDMI adaptor; AC-AHV48:USB To RCA adaptor); Some of them must be connected before installation; 9. AC-HAV50 HDMI to AHD Video Converter, Support HDMI 1.4. Compatible with Play Station game consoles,TV Boxes, and other devices with HDMI output. All optional accessories can be found in our brand store.

More Than a Stereo - Install Apps, Play Music, Online Maps & Traffic, Connect Devices to Expand Features

S8 Gen 3 (S8G2A79UN-S10) Provides 4 Internet Methods - Wi-Fi/BT/USB Tethering & Built-in 4G:

• Phone's Cellular Data:

1. S8 allows users to connect to the phone's hotspot via 2.4Ghz & 5Ghz WiFi or Bluetooth tethering for internet access.
2. Running online maps or streaming music online on Android car stereo do not need high bandwidth(less than 200kb/s), Bluetooth tethering connection is capable of dealing with such demands. Compared with WiFi connection, Bluetooth tethering has lower power consumption, so the phone battery will last much longer while Bluetooth tethering is enabled;
3. WiFi connection is easier as it requires only one step - enable your phone's WLAN hotspot, then WiFi connection can be finished within 2-4s; Bluetooth connection requires 2 to 3 steps;
4. USB network tethering is a newly introduced option by us, it allows users to share phone data with S8 via the USB connection. This could help save the phone battery, or even increase your phone battery level slightly; You only need to run the specific CarbitLink application in the background;

• Built-in 4G Cellular Modem: The SIM card slot only takes micro size. SIM with Data Plan is not included in the product package.
• The built-in 4G LTE modem module works with frequency bands supported by most carriers. Frequency Bands Supported are - 2G (GSM 850, GSM900, GSM1900); 3G WCDMA (B1, B2, B4, B5, B8); 4G LTE (B1, B2, B4, B5, B7, B8, B12, B13, B17, B19, B25, B26, B38, B41);
• Only carriers who support bands listed above can allow S8 to access the network. Even if the frequency bands in the above list are supported, the operator's communication base station does not cover the places your vehicle stays, S8 will not be able to access it.
• You can visit Wikipedia to learn more about LTE bands supported by local carriers. International buyers need to check the frequency bands compatibility with your local carriers/operators before placing order.
• Countless Android apps from G00GLE Play Store and our pre-installed GPS Tracking App (TrackHU). More than 1000 apps from G00GLE Play Store are compatible with our S8 Series, especially media/entertainment apps and navigation apps in the category of "Auto & Vehicles". Very few app developers may specify devices/system environments that are allowed to install or run their apps, which results in the inability to install or run on any Android car stereos. Note: A few apps are not compatible with S8 (Gen3), eg. Netflix.

Dual Bluetooth w/ aptX HD Chips Inside, Connectable To More Bluetooth-Based Devices, Customized Bluetooth And Voice Assistant Interface

• Bluetooth 1 supports peripherals and hands-free calls with CD-level audio quality. Contacts/recent records will be synchronized once the smartphone is connected. Supports "Quick Search" and "Add to Favorites" for quick dialing! Built-in Mic Noise Cancellation Technology helps suppress background noise and echo feedback in a hands-free call. You don't have to yell at the car stereo to talk with the other one.

• Bluetooth 2 not only works as Bluetooth tethering internet but also allows to connect to Bluetooth gamepad(for kids in rear seats), Bluetooth OBD2, Bluetooth TPMS, etc.; Bluetooth 2 can pair with devices like the AC-4450 Car Diagnostic Scanner (not included) and the CI-FLT01 Footwell Light (not included) for an enhanced experience.

• Because of dual Bluetooth inside, the system allows users to connect up to 3 devices simultaneously(one for audio, two for data communication). The Bluetooth in S8 can wake up the phone's voice assistant (Siri, G00gle Assistant) . This allows users to conveniently use a specific button on the screen, steering wheel, or our AC-44F8 wireless rem0te to send messages, make calls using their voice.
