ATOTO CA-AEC01 Car Amplifier, 4 Channel, 400 Watts Max Power, 2/4 Ohm Stable, Class A/B, Only Compatible with Selected ATOTO Car Stereos

Best Partner for ATOTO head unit - CA-AEC01 Amplifier

TOTO, 7 years dedicated in the field of head units, has created a variety of popular and well-made head unit series. In order to bring our loyal customers a better in-car audio experience, a much more powerful external amplifier CA-AEC01 is launched. As a one-stop solution, there will be no problems of compatibility issues.

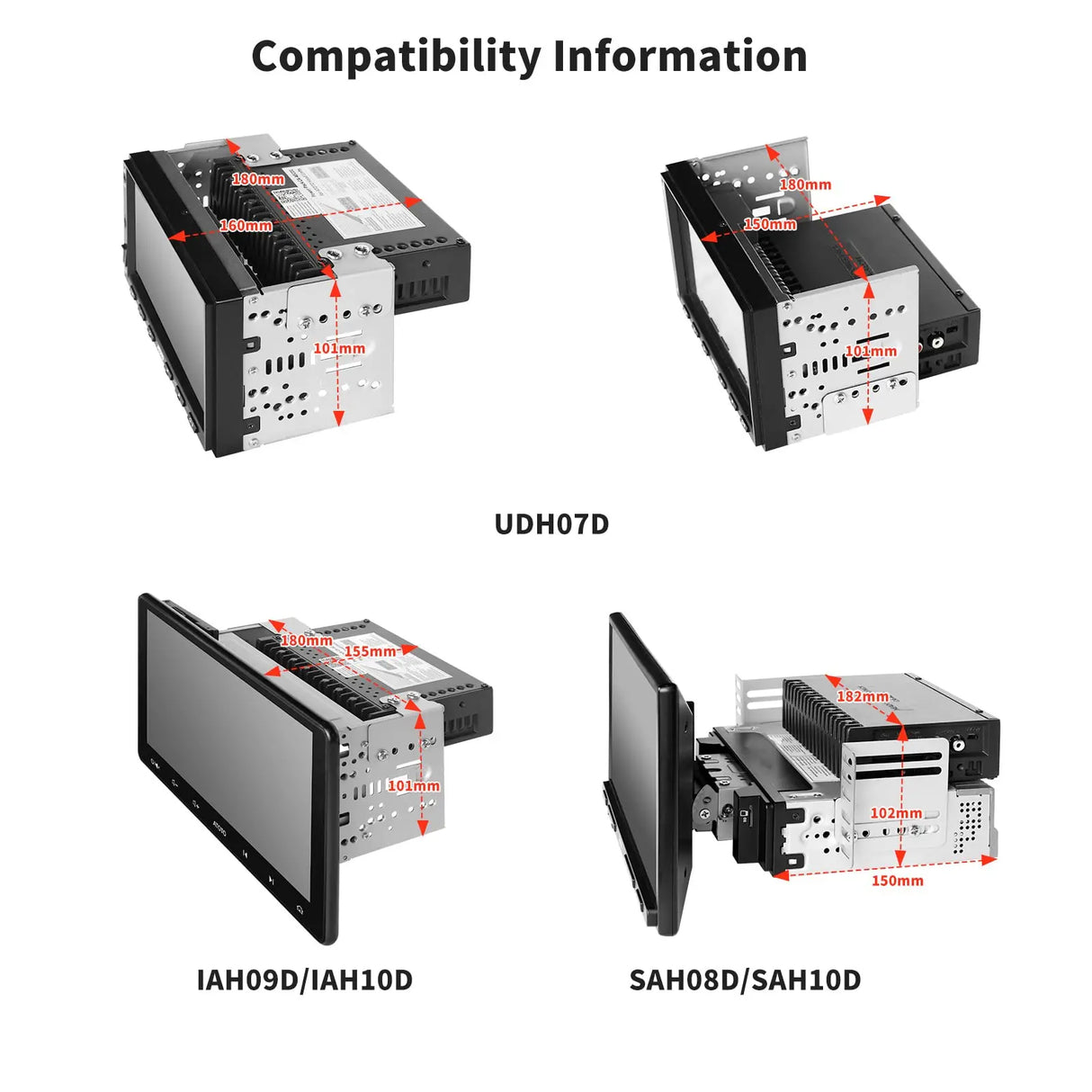

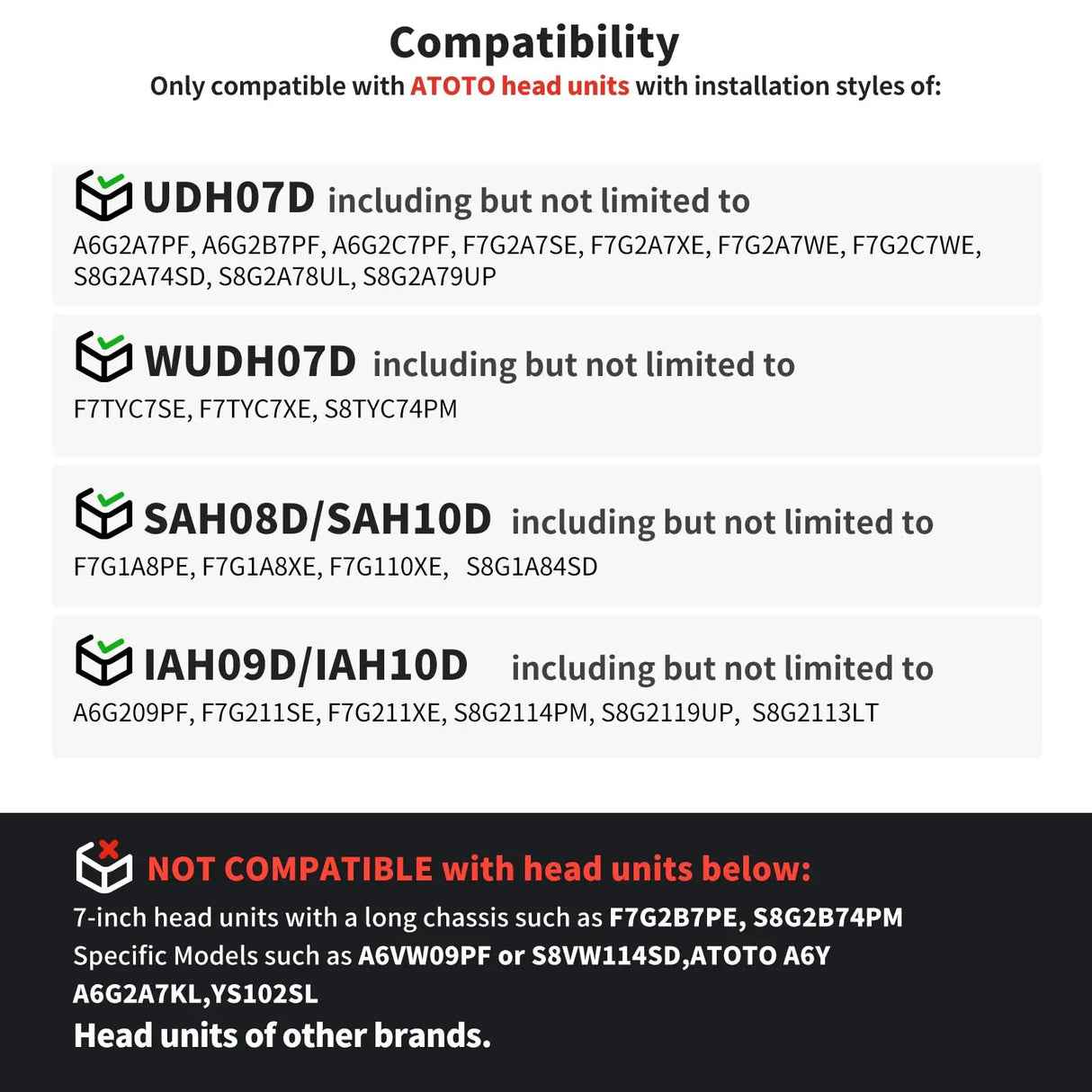

Compatibility:This power pack is specially designed for selected ATOTO head units. Detailed compatibility information is listed below.

Only compatible with ATOTO head units with installation styles of:

1. UDH07D (including but not limited to A6G2A7PF, A6G2B7PF, A6G2C7PF, F7G2A7SE, F7G2A7XE, S8G2A74SD, S8G2A78UL, S8G2A79UP)
2. WUDH07D (including but not limited to F7TYC7SE, F7TYC7XE, S8TYC74PM)
3. SAH08D/SAH10D (including but not limited to F7G1A8PE, F7G1A8XE, F7G110XE, S8G1A84SD)
4. IAH09D/IAH10D (including but not limited to A6G209PF, F7G211SE, F7G211XE, S8G2114PM, S8G2119UP, S8G2113LT)

Important:

1. The models listed here are not complete. Please refer to the installation manual included in the package of the head unit for the installation style.
2. NOT COMPATIBLE with ATOTO A6Y, A6G2A7KL,YS102SL. NOT COMPATIBLE with head units of other brands.
3. NOT COMPATIBLE with 7-inch head units with a long chassis such as F7G2B7PE, S8G2B74PM; NOT COMPATIBLE with F7 WE series such as F7G2A7WE, F7G2B7WE, F7G2C7WE, F7G211WE.
4. NOT COMPATIBLE with Volkswagen vehicles (specific models ) such as A6VW09PF or S8VW114SD.

More power for your money:

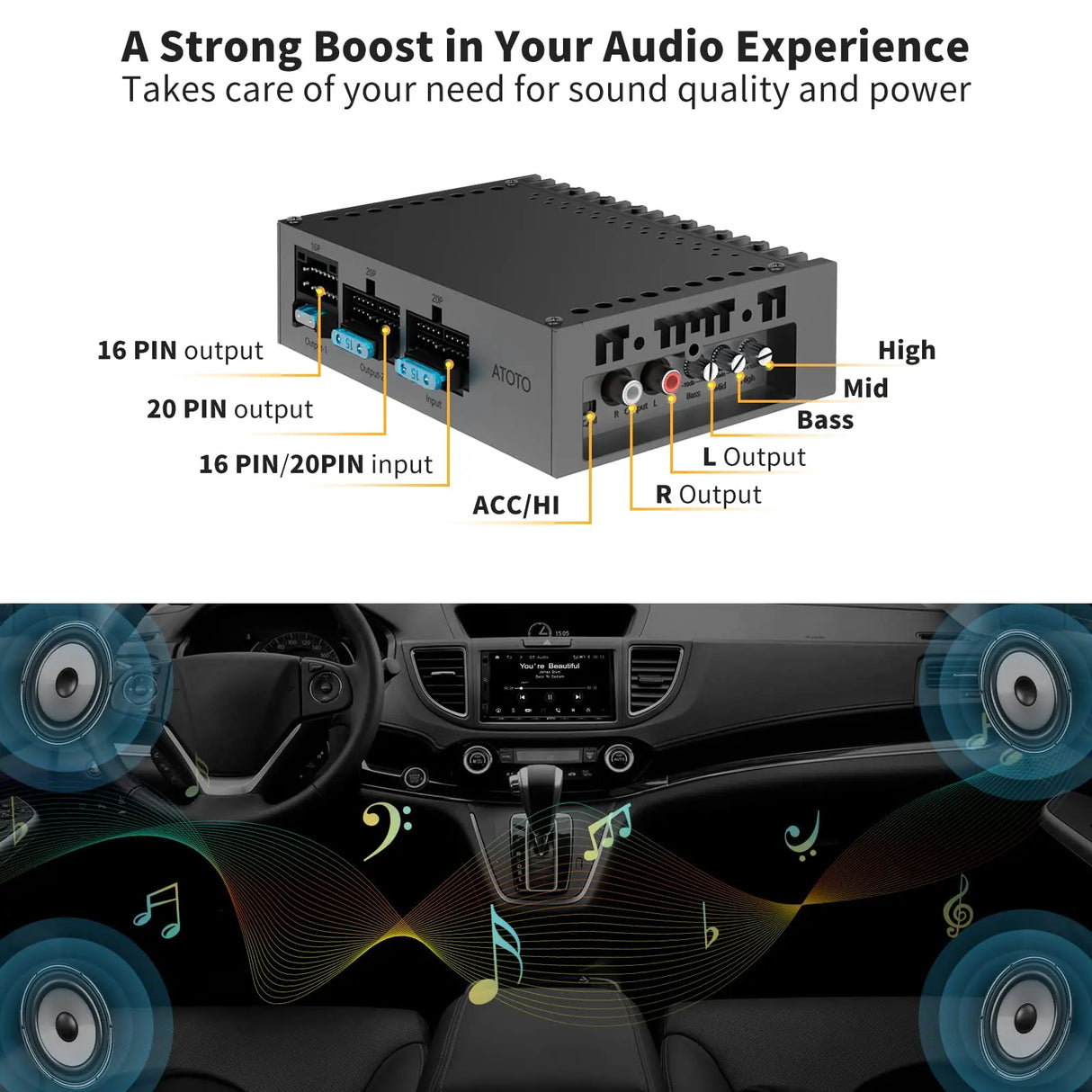

This 4-channel amplifier puts out Max 60Wpower and 47W RMS per channel when connected to four 4Ω-speakers(for most cars). It uses ATOTO’ s Dynamic Max Power Management (DMPM) technology to deliver a quick energy boost when need, virtually doubling the amplifier’s output power on musical peaks. It greatly boosts your audio experience by offering twice as much power as the original build-in amp.

No matter when you commute from home to work at normal speeds or drive at highway speeds, you can relax and enjoy the music without noticing the disturbing noise outside. The head unit and amp together make a feature-filled and powerful sound system that you will enjoy for many miles.

Set Your Amplifier Just Here.

Disadvantage of the third-party amplifier.

1. You have to look for a place to settle the third-party amp.

If you choose to put the amp at the trunk area, you have to fumble a way from the head unit to near rear speaker place using many long patch cords, which is time-consuming and exhausting. Under-dash area seems to be nearer but the left space is tight after installing the amp, and the amp will suffer dirt and spills in a long run.

2. The wiring problem leads to possible noise.

There may be wiring and earthing problems when you try to put many long wires together to reach the third-party amp, which will cause disturbing noise.

3. The amp power is hampered by long patch cords.

Long wires will increase the resistance, thus causing more amplifier power loss.

Advantage of ATOTO amplifier.

1. Easy to set the amp.

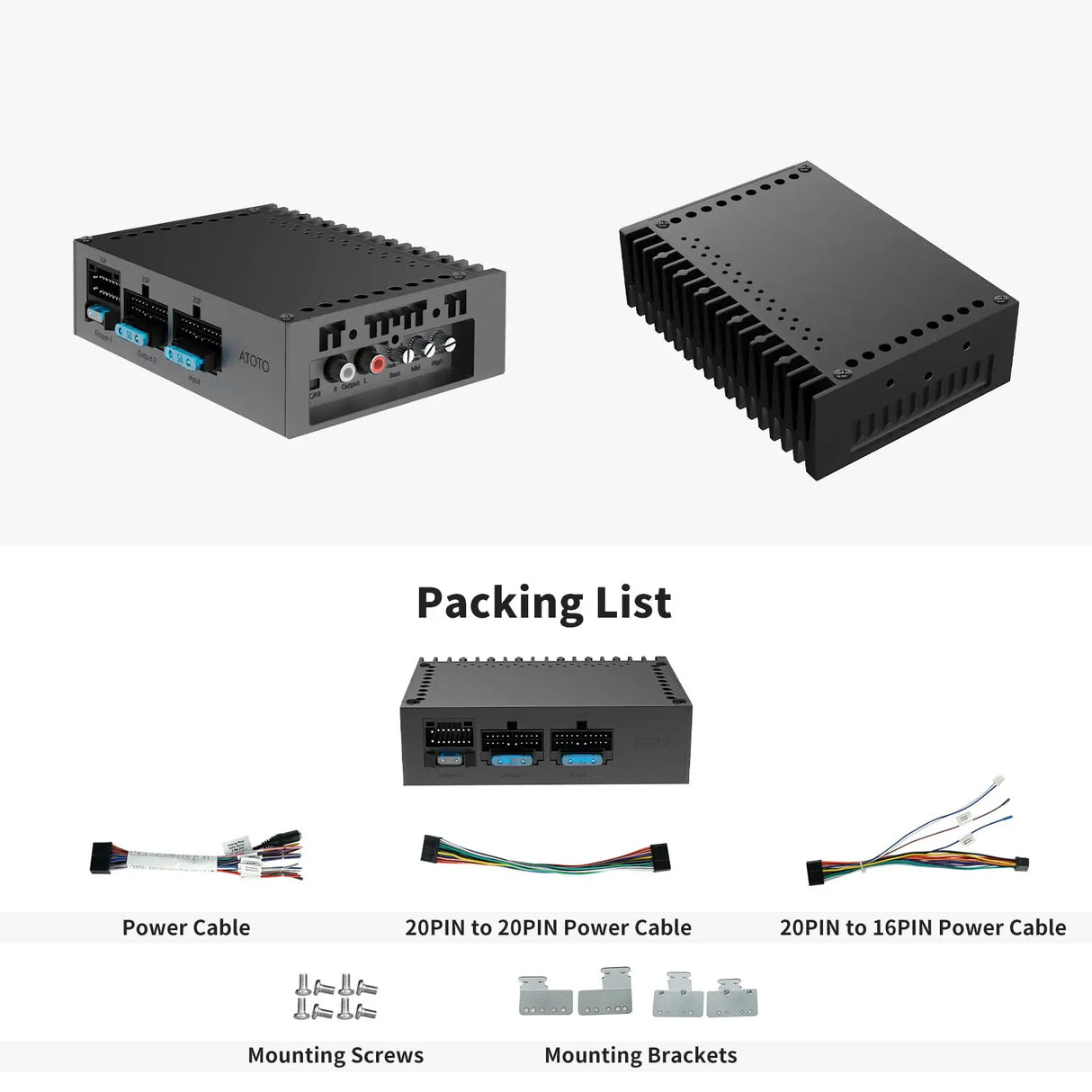

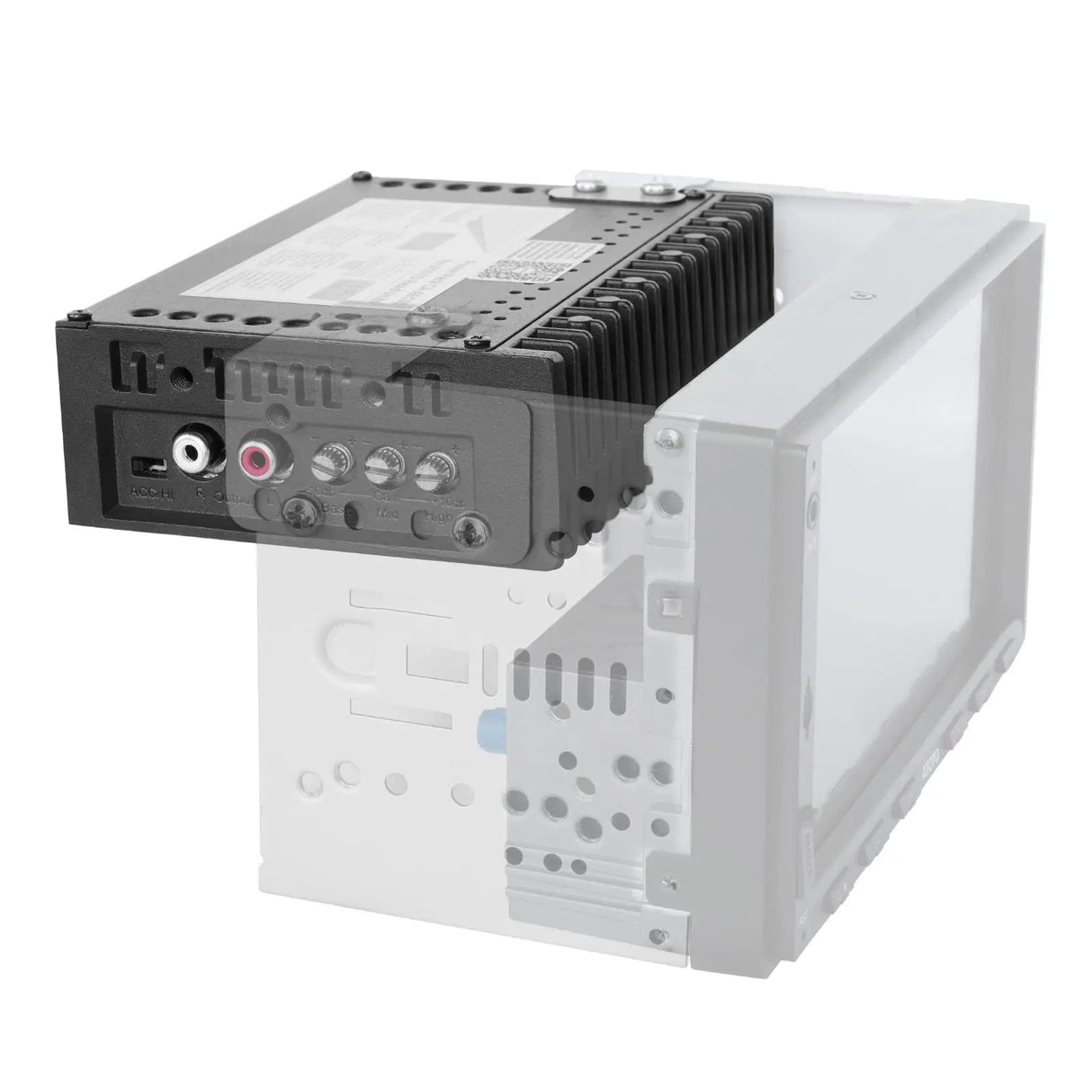

The CA-AEC01 measures just 142mm x 103mm x 41mm (L x W x H). The combined depth of the ATOTO head unit and amp is still less than 160mm, thus it will fit in a wide variety of vehicles with a Double DIN dashboard opening. So don’t worry where to put your external amplifier, ATOTO CA-AEC01 Amplifier will hide in the dashboard opening and leave your car clean and tidy.

2. Fast Installation：

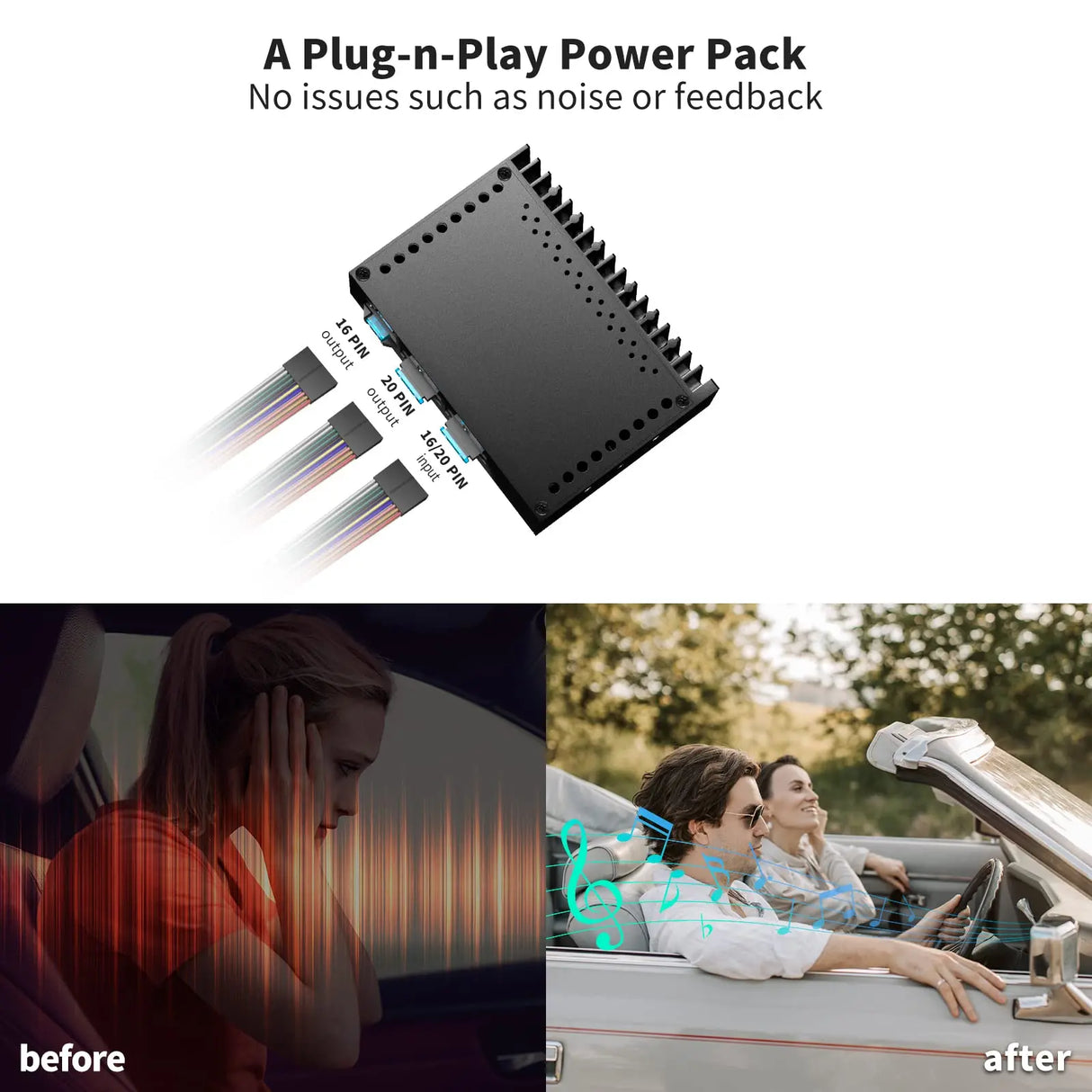

Thanks to the efficient power needs of the DMPM technology, the CA-AEC01 does not require a new power supply wire at the battery, so the installation is fast using supplied radio power wires. In addition, the CA-AEC01 uses a 20PIN power harness with a recessed design on one side, so the cable can be easily tucked in for a cleaner and less-bulky installation. For head units of A6 PF and S8 LT with 16 PIN power harness, we also prepare a 16PIN-20PIN wiring harness to help installation.

3. Clean sounds:

With the build-in line out converters in the external amp, you can connect the amp with the head unit directly from the speaker level output, saving you the trouble of buying another line out converters. The original wiring harness we offered is easy to plug in, and avoid problems of feedback and noise due to improper wiring or grounding when installing 3-rd party amps. Besides, it’s a full-range amplifier covering range from 20 Hz to about 20 kHz.No matter your speakers output low, mid or high frequency, the amp can work well together with them.

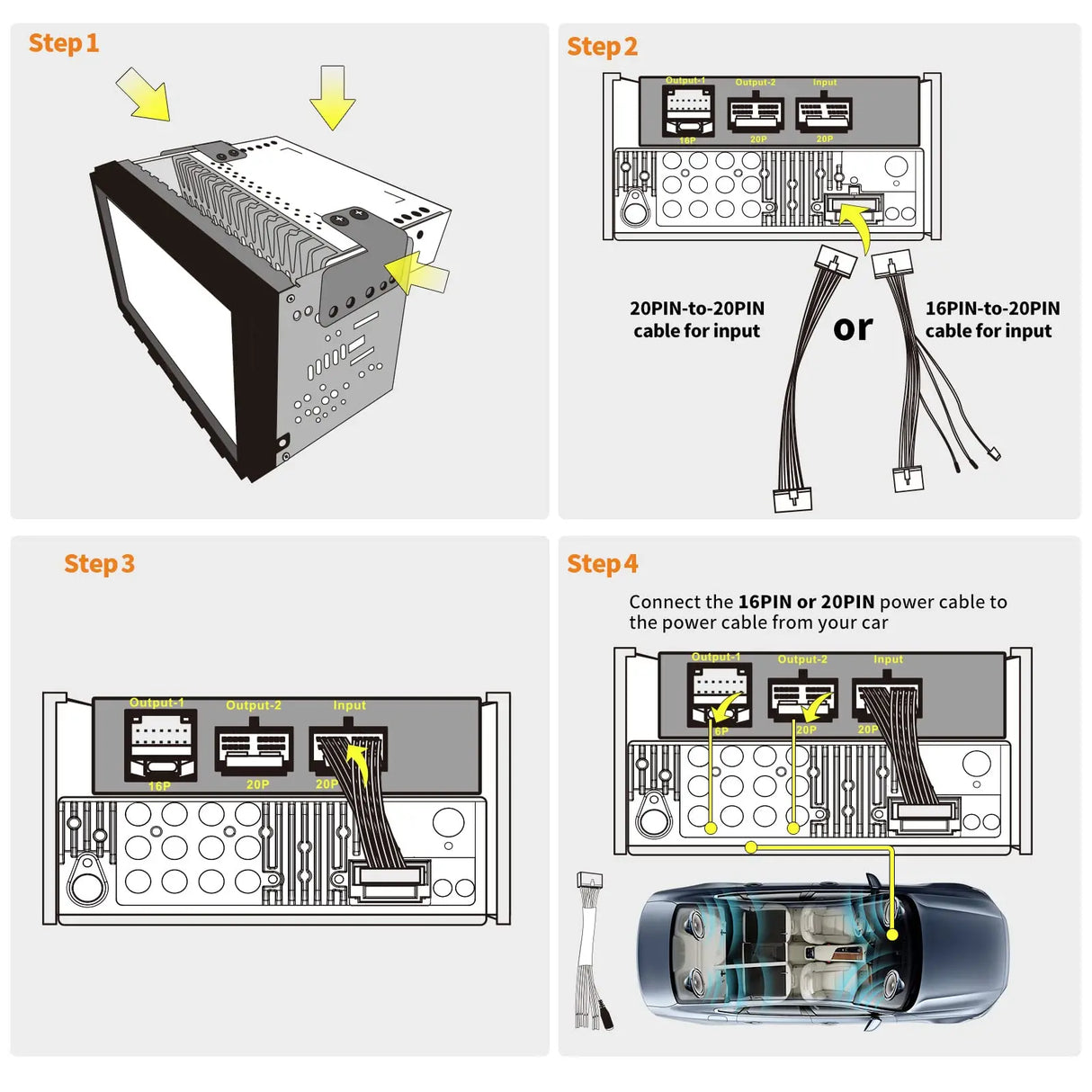

How to Connect the Car Amplifier to the Head Unit and the Car?

Step 1: Tune the car amplifier and then mount it on the head unit with screws.

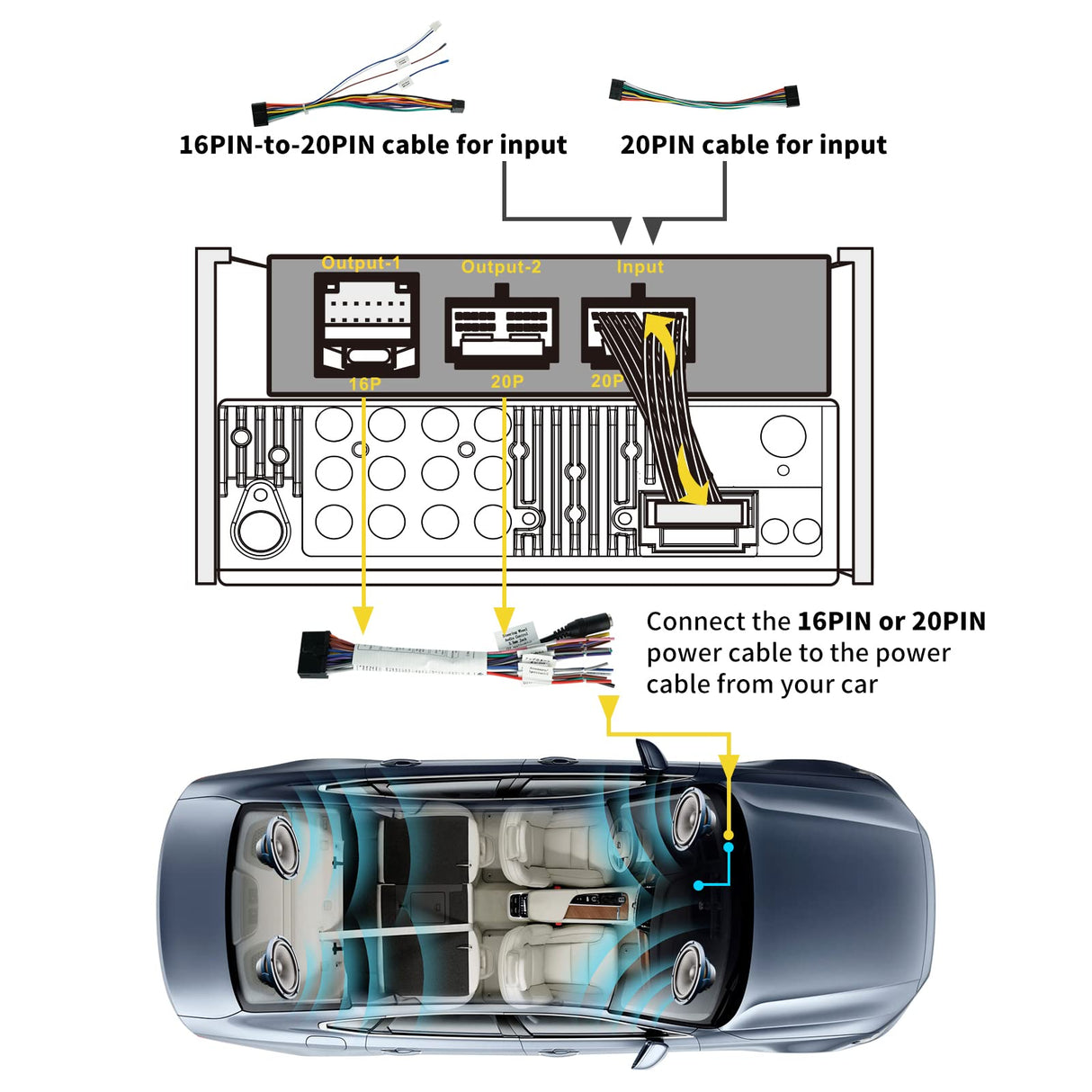

Step 2： If power socket on your head unit is 16PIN, choose the 16-20PIN cable, and plug the 16PIN side into the socket. If power socket on your head unit is 20PIN, choose the 20-20PIN cable, and plug one side into the socket.

Step 3: Plug the 20PIN side into the input socket on the amplifier.

Step 4: Connect the power cable from your car to the amplifier's output socket. Choose either the 20PIN output socket or the 16PIN one based on the power cable from your car.
