ATOTO CA-AEC02 Car Amplifier, 4-Channel, 392W Max, 4 Ohm, Class A/B, Built-in Line-Out Converters, High Sound Quality, Car Audio Amplifiers

$156.90 USD ~~$187.90~~

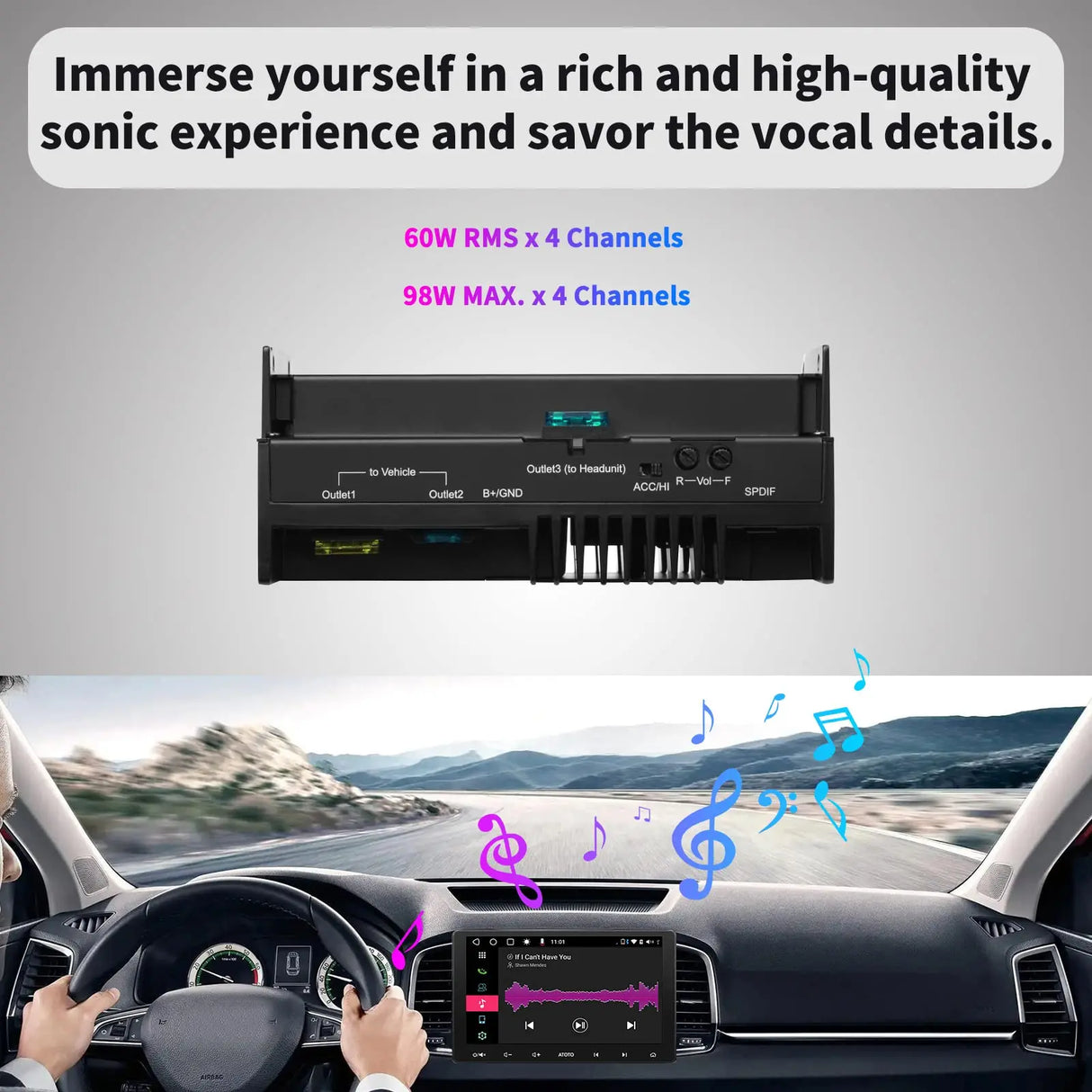

4-Channel, 60W RMS x 4 at 4Ω, 98W MAX x 4 at 4Ω
Superior Sound Clarity with 20Hz-20KHz Frequency Response
Built-in Line-Out Converters for Precise Sound Quality

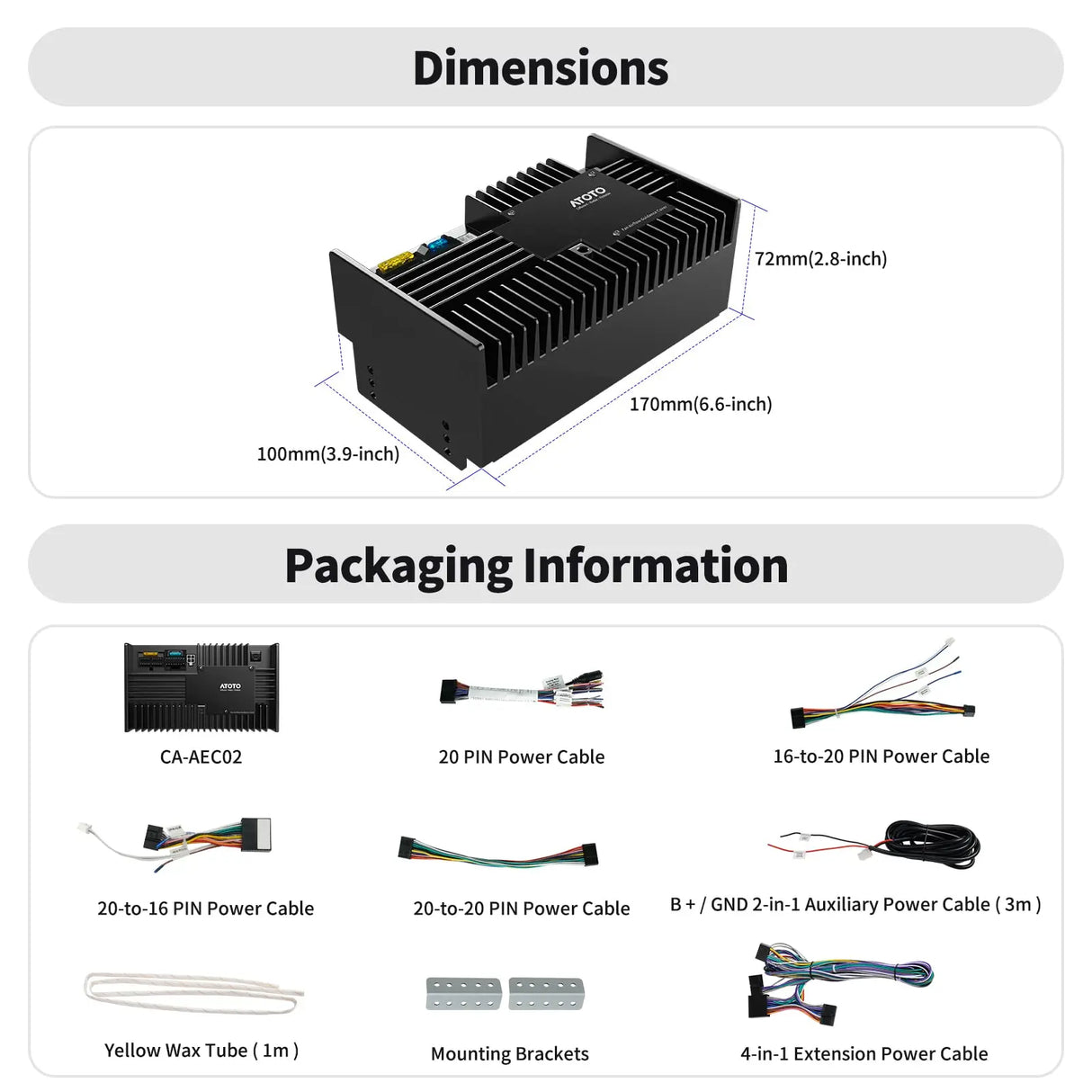

Compact Design (172mm x 100mm x 72mm) for Easy Installation
Broad Compatibility with ATOTO, Aftermarket & Factory Head Units
DC-to-DC Transformer for Stable Performance
Easy Installation with Simple Speaker-Level Harness

Goes well with

Buy accessories with a car stereo and enjoy 3% cashback on accessories.

30 Day Price Guarantee

30 Days Hassle-Free Returns
Shipping from US Warehouse (3-7 Days Delivery)
Found a lower price? Contact us, and we’ll match it!

1 Year + 180 Days Warranty

We offer a comprehensive warranty on all of our products to give you peace of mind during use.

Warranty Period: This product comes with a 12-month standard warranty.
Extended Warranty: Purchasing on our official website allows you to register directly for an extended warranty, adding an extra 180 days of coverage.

For more details, please visit our [Warranty Policy].

After purchasing, please make sure to [register your product] to activate your warranty coverage.

Free Shipping & Delivery Protection

Free Shipping:
All orders ship free of charge and typically arrive within 7 days.
30-Day Returns:
If you're not completely satisfied, you may return or exchange your product within 30 days.
Shipping Protection (Recommended):
For added peace of mind, we recommend adding Seel Shipping Protection at checkout. With coverage, you can file claims directly for shipping delays, loss, or damage — ensuring faster processing and enhanced protection.

While we are always happy to assist with logistics-related inquiries, shipping-related compensation without added protection is subject to carrier policies and eligibility requirements.

For full details, please visit our [Shipping Policy] and [Return Policy].

Features

ATOTO CA-AEC02 Car Audio Amplifier, 4 Ohm, 392 Watts Max Power, Class A/B, 4 Channel, Built-in Line-Out Converters, Great Sound Quality, Perfect for Car Use

Compatibility Notice: Compatible with ATOTO in-dash units using the double-DIN short chassis, including F7, S8, and A6 series. Not compatible with double-DIN long chassis models, portable navigation units, or third-party head units.

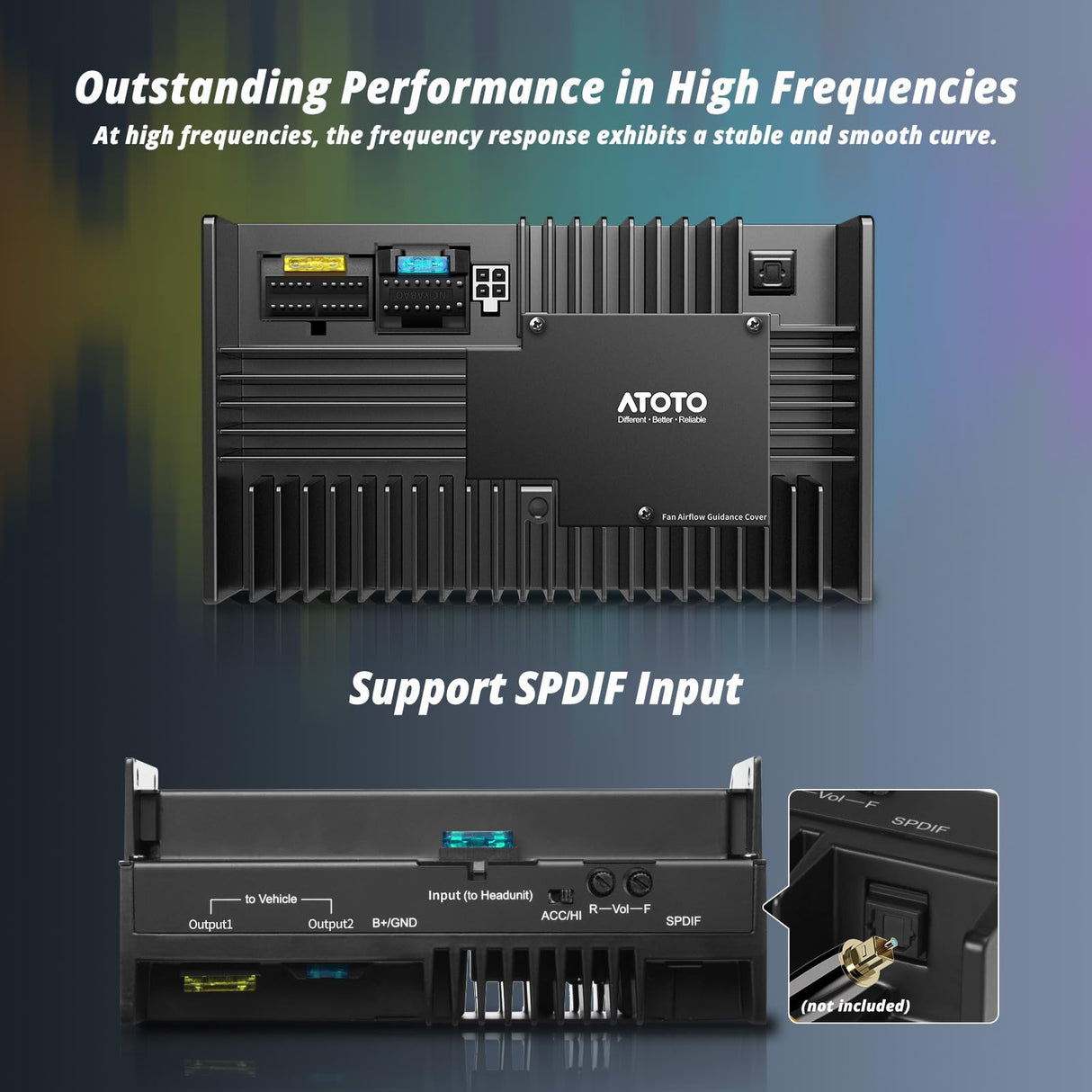

【Enhance Your Audio with ATOTO's High-Efficiency 4-Channel Amplifier】With precision hardware, the ATOTO 4-channel full-range amplifier CA-AEC02 has the power of 60W RMS x 4 at 4Ω and 98W MAX. x 4 at 4Ω. It's the perfect choice if you want to enhance your sound system but don't have the space to install a larger amplifier. It can increase the power to nearly 3 times of the original built-in power of the host computer. It supports SPDIF input to fulfill your need for more precise sound quality.

【Superior Sound Clarity】A full-range (20Hz~20KHz) power amplifier with a smooth and stable frequency response curve in the treble section (most other amplifiers only cover 30Hz-15KHz frequency response). With CA-AEC02, you'll be immersed in a sound experience that's rich and high-quality, with particular attention to detail in the treble and tenor. Variable Gain Control, allow the amplifer input to match the output signal from the head unit and Achieve optimum performance when adjusted properly.

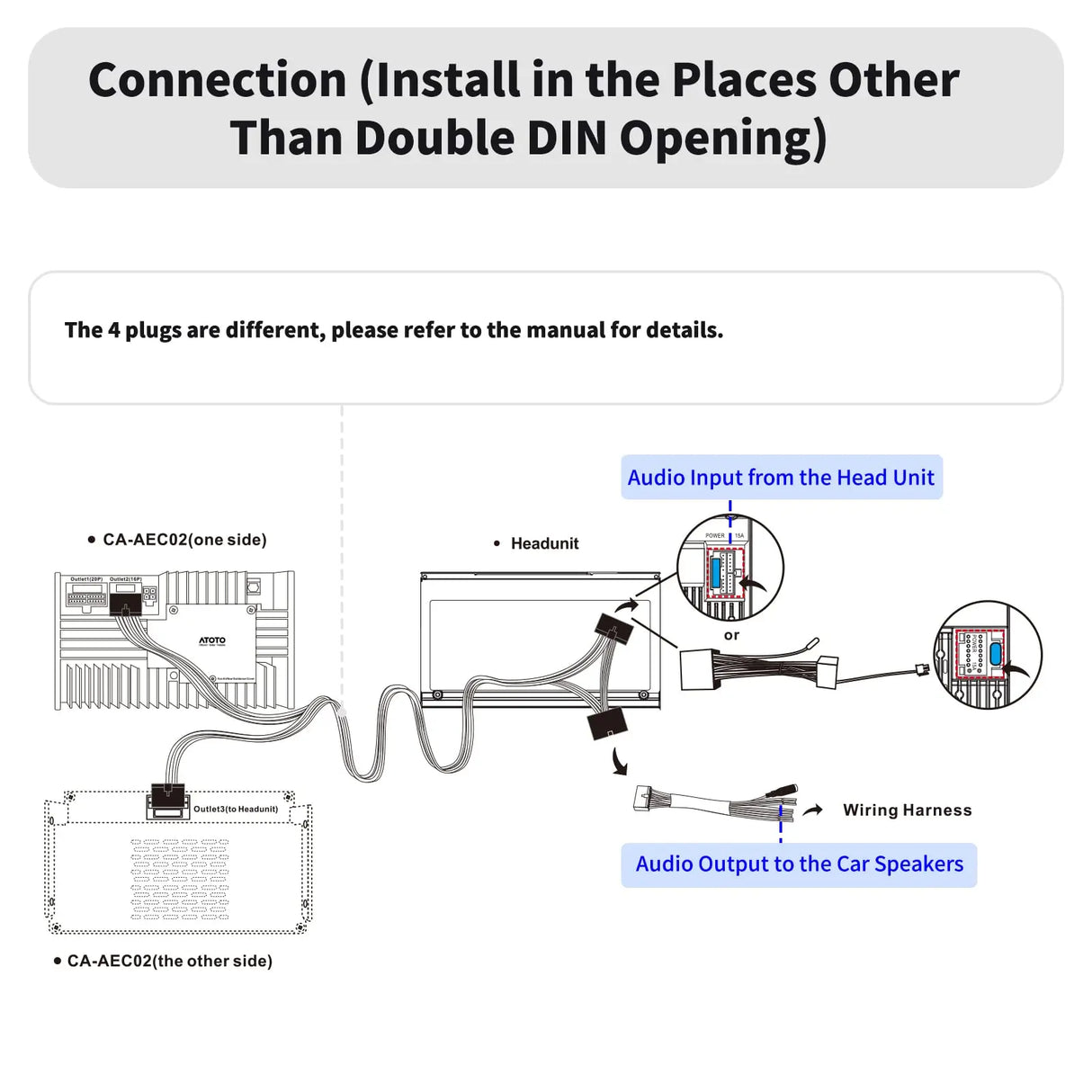

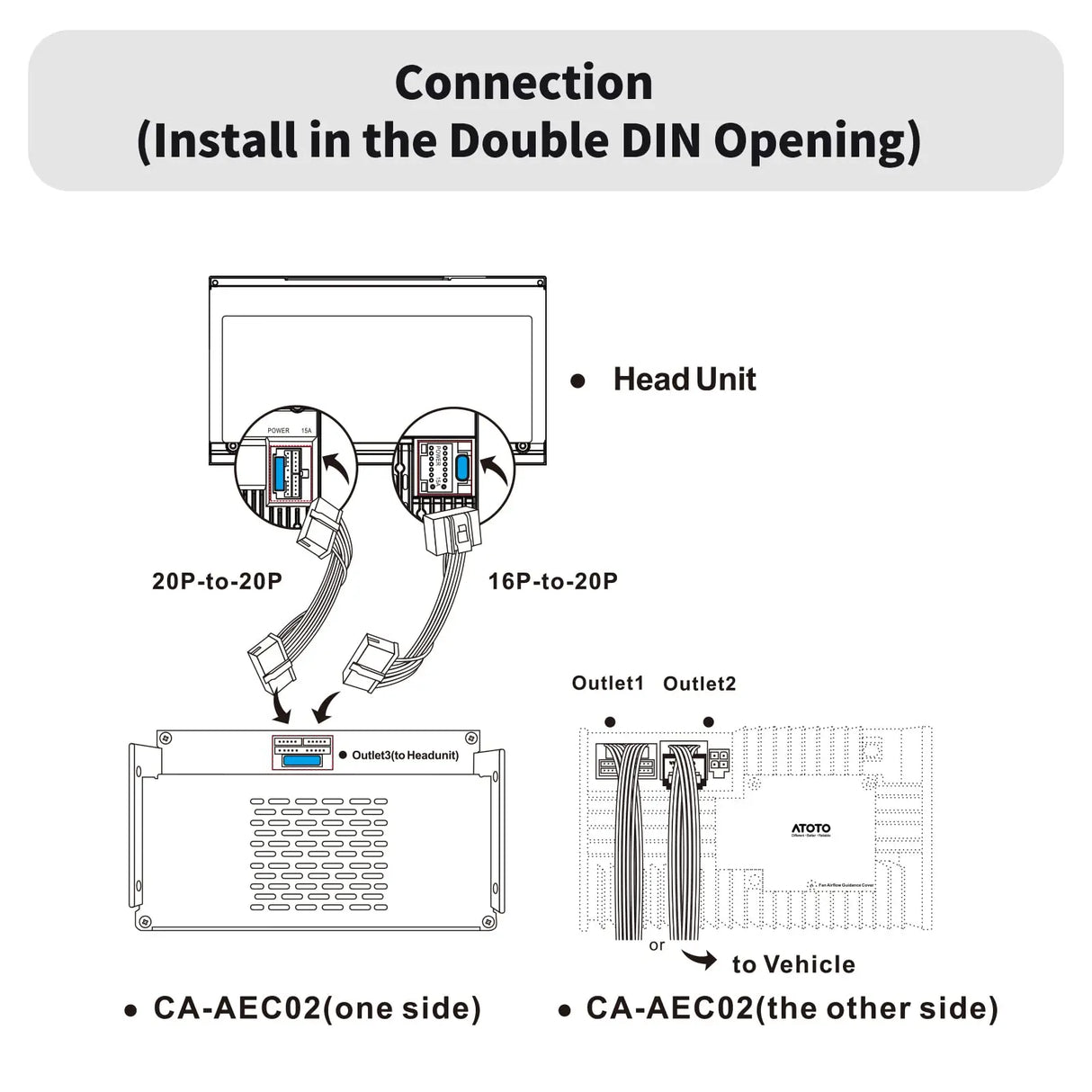

【Compact Design and Effortless Installation】Size (L x W x H): 6.7"(172mm)x3.9"(100mm)x2.8" (72mm). There are two mounting methods: ① Install the Head Unit together with the CA-AEC02 into the double DIN opening on the dashboard. ② Install the CA-AEC02 elsewhere, such as under the glove box. The simple speaker-level harness eliminates the need for soldering or additional wiring, helping to avoid acoustic feedback caused by complex wiring and grounding.

【Broad Range of Compatibility and Stable Performance】Depending on the installation method, it is compatible with ATOTO, aftermarket, and factory head units. For ATOTO head units with short chassis, installation ① or ② are both applicable. For ATOTO head units with long chassis, aftermarket, and factory head units, installation ② is applicable. The DC-to-DC transformer converts the dynamic 12V-14V of the car battery to a stable 16V, ensuring dependable sound performance.

Specifications

Reviews (369)

Loud.

I just installed this,and it is loud. I have my head unit at 1 and it is still to loud. I have to readjust my speaker gains to see if I can lower the volume.Nice thing about this amp. It works. Might sound a little strange, but the amp before this one would not shut off. It was the CA-AEC01. From the ignition hotwire to the head unit would always run at 2.7 to 3.5 volts. This would not allow for the CA-AEC01 to shut off the head unit. The amp would run hot that it would almost burn your fingers. It had killed one battery already.It took forever to find out what was causing it. Customer service did not want to own up to a defective amp, and made me jump through some serious hoops.In some respect I believe the CA-AEC01 is slightly a little bit nicer sounding that the CA-AEC02, due to the adjustable pots for the gain on the bass, mids, and trebles. CA-AEC02 only has a speaker gain that works for the front channel, and one for the rear. The rest you better hope that you have a good EQ.The CA-AEC02 is much easier to install, and can be mounted just about anywhere. It comes with about an eighty inch (80") extension cable that allows you to mount it where ever the eighty inches takes you in your vehicle. Plus it also comes with the ability to connect directly to your cars battery to bump the voltage of the amp to 16v.Runs much, much cooler. I have mine mounted on the head unit chassis. Behind the dash. I can still touch the amp after a few hours of playing hard.Turns off. When my key goes off so does my head unit, and amp. Now I am not sure what will happen after I hook up my battery to the amp, and flip the switch from Acc to HI. By default the amps ACC/HI switch is set to high. I'll keep you informed.As of right now I am ok with the amp, again doesn't sound as rich as the CA-AEC01, But so far I haven't had any clipping.

Returned after test installation

I wanted to love it. Got too hot for me to feel safe running it in my vehicleHad I incorporated a fan this might have been satisfactory for me, but I wanted a plug and play system. I cannot recommend, but you may find a way for it to be good for you.

Loud.

Returned after test installation

Sounds Great and Rocks

Great sounding little amp that installs out of the way and really elevates your sound quality. Worth every penny. Once you try it you realize how much more refined and conrolled your music can sound.

1 2 3

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

CA-AEC02 Power Pack, the Most Power in a Small Space.

Triple the power of your head unit!

If you have a headache that the factory speakers have poor performance at lows and highs, and after changing into quality speakers, the power is still not enough. CA-AEC02 is definitely a painkiller for you! It offers triple the power (60W RMS x 4 at 4Ω) of your head unit's preamplifier. ATOTO’s exclusive DMPM (Dynamic Max Power Management) technology produces an impressive almost 400 watts ensuring a solid power boost during music peak transients and high output.

Compact size & Easy Installation Power duo with your head unit

lf you prefer to install in the dash, ATOTO head units with short chassis below are recommended

Fan Airflow Guidance Cover

High-Level Inputs

Variable GAIN Control

Stable Circuit Working Voltage

Don't Forget to Connect the B+/GND Cable to Car Battery for Optimal Performance!

As CA-AEC02 is connected to the head unit, the power delivery is subject to the fuse of the head unit. If you want your audio experience to truly shine through at all volumes, especially at maximum volume, it's NECESSARY to connect the B+/GND cable to the car battery, which will bring out the amplifier's fullest potential without noise problems plaguing your music.
