ATOTO S8 Standard Android Car Stereo system - Your Versatile driving companion

Product Information

• Product Version: S8 Standard (Gen2); Model No: S8G2A74SD(3GB/32GB); Mounting style: UDH07D(Double-DIN Adaptive Head-unit of 7-inch Display); This model adopts the panel with physical keys on it. We now have an upgraded version, the S8G2A74MS, featuring 4GB of RAM and built-in 4G Cellular Modem for a smoother and improved user experience.
• System Information. SoC Chip: UNISOC 7862 ARM Cortex Octa-Core (up to 1.8GHz) CPU with ARM Mali-G52 MP2 GPU, advanced 12nm manufacturing process. System Version: ATOTO AICE UI 11.0, which is developed & customized based on Android Q(10.0); System Language: English, German, French, Italian, Spanish, Portuguese, Japanese, Russian, Arabic, Polish, Korean, Dutch, Thai, Turkish, Ukrainian, Hebrew, Greek, Hungarian, Indonesian, Vietnamese and Chinese.
• DSP / Pre-Amplifier: Built-in Digital Signal Processor allows you to set precise equalization, signal delay, bass boost, bass filter. Preset 9 EQ Modes, and 32 adjustable frequency bands (16 bands for front and 16 for rear). Built-in Max 4*45W BTL Amplifier with RMS 4*24W (Vcc=14.4v, THD=10%);
• Bluetooth & Radio Tuner: Dual Bluetooth (BT1 5.0 & BT2 4.1). Bluetooth1 is Bluetooth 5.0 with SBC & AAC codec, and it supports HFP/HSP/A2DP/AVRCP/PBAP protocols; Radio tuner: Built-in high sensitivity FM/AM radio tuner with RDS/RBDS feature (and the radio station name will be displayed if available);

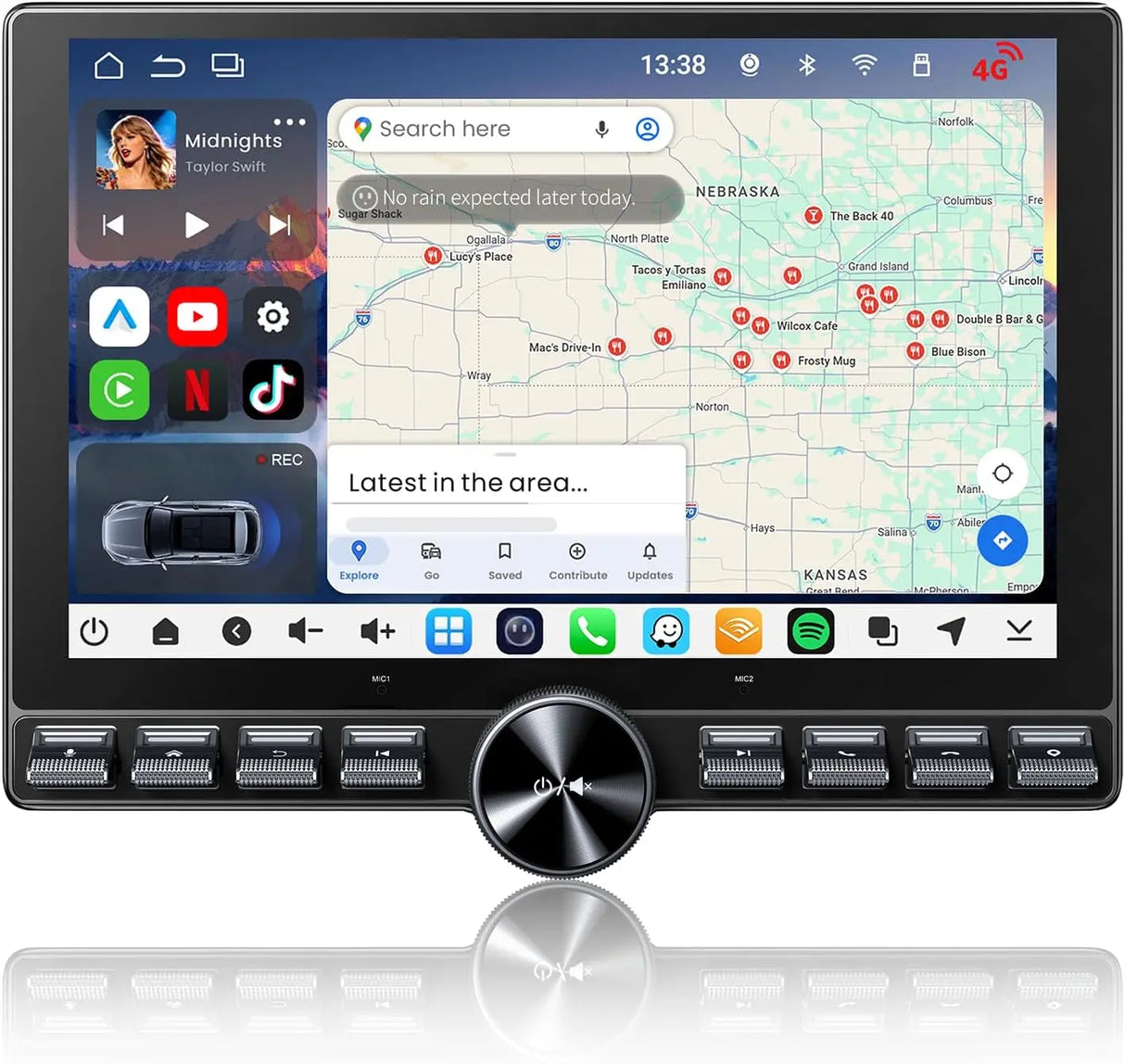

• Display: Full HD 7inch 1024*600 5-Touch Capacitive Touchscreen with 600cd/m2 IPS screen;
• GPS/Navigation: Built-in GPS Receiver module with an external GPS antenna and Google Maps app is installed as the default GPS map. Users may need to download offline map data for a specific area for offline navigation if preferred. Other maps/navigation apps (Waze, HereWeGo) from Google Play Store can also be installed;
• Phone Mirroring & CarPlay:Phone Mirroring - EasyConnect app pre-installed, and it supports working with the latest iOS & Android devices (system firmware update may be required). Two options (USB /WiFi) are all compatible with Android smartphone and iPh0ne; CarPlay (wired / wireless CarPlay；wired / wireless Android Auto) - It seamlessly integrates your smartphone with the S8's built-in display, allowing you to make phone calls, access your music, send and receive messages, get directions (Note: for the wired CarPlay and Android Auto Connection on ATOTO S8 series head-units, please use the factory/original USB cable that comes with the phone).
• Some Other features: Fast System Boot - Start the car & access system within 2 seconds; Split Screen Display - Run a navigation map and another app (such as Youtube) on the same screen simultaneously; Digital Photo Frame option - Users can put memorable photos in the specified Gallery Folder and let them autoplay on S8's HD big screen with only a tap (or a hand gesture); Speed Compensated Volume Control (SCVC)- When you increased in speed the headunit volume increased a certain percentage and when you slowed down, the volume dropped. This is to compensate for road noise; USB network tethering - sharing your phone data with S8 headunit via USB connection (EasyConnect app); Live RearView (LRV) - Now you can access rearview even if your vehicle in moving ahead. This could remove obstructions of passengers, headrests and the vehicle’s roof and rear pillars, increasing field of view and allowing the driver an unimpeded view of the lanes behind and traditional blind-spots

Inputs,Outputs & Slots

• AUX Audio(L/R) /Video input; FCAM front camera video input; Rearview camera input (S8 can process 720P HD video signal. So you can connect a specific HD rearview camera to S8 for 720P video display); 4-CH RCA Audio Out (2v) for connecting to factory/aftermarket amplifier; Separate Sub-woof Out (0.8v); For S8 Standard, there is no Optical SPDIF Out, or Quick Charge interface; To connect to a headrest monitor, you need to get an extra ATOTO USB-to-HDMI or USB-to-RCA video output adaptor(not included)
• One Micro SD slot - to store media files, and can read up to 512GB storage card; (3 USB) interfaces for data communication, including reading USB Drive (read unlimited external storage devices, including portable SSD) & optional USB devices, and connecting phone for Mirror casting/EasyConnect or CarPlay;

Vehicle Fit:

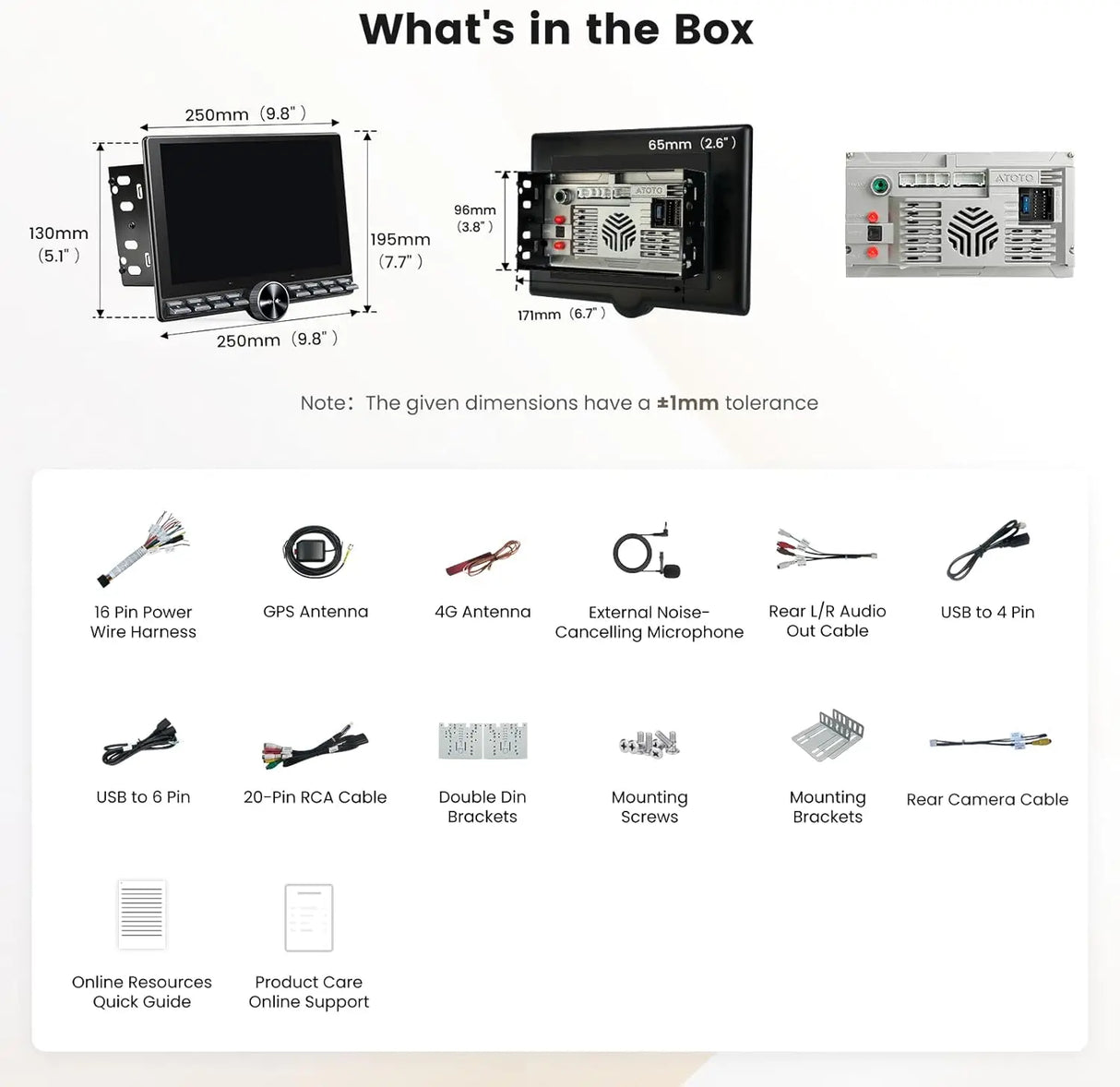

• Most dashboard mounting frame suppliers from North America may provide a double din mounting frame with 172mm*97mm opening (Metra dash kit, PAC dash kit,etc). ATOTO is the first one to bring an Android 7in car stereo with a minimum 172mm*97mm front panel dimension. An extra frame adapter is also included in the package to extend its size to 178mm*101.5mm;

Notice: Optional parts for working with ATOTO S8 (Gen2) Standard:

• 1. ATOTO CA-AEC01 Compact 4 Channel Car Amplifier (47 watts RMS x 4); 2. ATOTO CA-AEC02 Plug-n-Play 4 Channel Car Amplifier (60 watts RMS x 4); 3. ATOTO AC-44P2 1080P On-dash DVR Camera; 4. ATOTO AC-44F5 Steering wheel IR Remote; 5. ATOTO AC-4450 Bluetooth OBD II scanner /Code Reader; 6. ATOTO AC-HD02LR or AC-HD03LR (with Virtual Surround View) HD Rear-view Camera; 7. ATOTO AC-UTP1 USB TPMS (Tire Pressure Monitoring Sensor); 8. ATOTO Video Output Adaptor (AC-AHV68: USB to HDMI adaptor; AC-AHV48: USB To RCA adaptor); Some of them must be connected before installation; 9. ATOTO AC-HAV50 HDMI to AHD Video Converter, Support HDMI 1.4. Compatible with Play Station game consoles, TV Boxes, and other devices with HDMI output; 10. ATOTO CS-101SW 10" Slim Amplified Subwoofer, 400 Watts MAX peak power, 150 Watts MAX RMS power, with low & high-level inputs and remote bass control, compatible with most vehicle models; 11. ATOTO CS-651DST 6.5" 2-Way Component Speaker System pumps out up to 250 watts peak power and 70 watts RMS for OEM car audio upgrades.
