Standard ATOTO S8 Android car stereo system: your versatile driving companion

Product information

Note: DriveChat is continuously developing, with updates released periodically. To get the latest version of DriveChat, update the app or system.

*The instructions in the package have not yet updated the wireless Android Auto information but the main unit you receive already supports this function

• Product version: S8 Standard (Gen2); Model No: S8G2A74SD (3 GB / 32 GB); Mounting style: UDH07D (adaptive double DIN head unit with 7-inch display); This model adopts the panel with physical buttons on it.
• System information. SoC Chip: UNISOC 7862 ARM Cortex Octa-Core CPU (up to 1.8 GHz) with ARM Mali-G52 MP2 GPU, advanced 12nm manufacturing process. System version: ATOTO AICE UI 11.0, developed and customized based on Android Q (10.0); System language: English, German, French, Italian, Spanish, Portuguese, Japanese, Russian, Arabic, Polish, Korean, Dutch, Thai, Turkish, Ukrainian, Hebrew, Greek, Hungarian, Indonesian, Vietnamese, and Chinese.

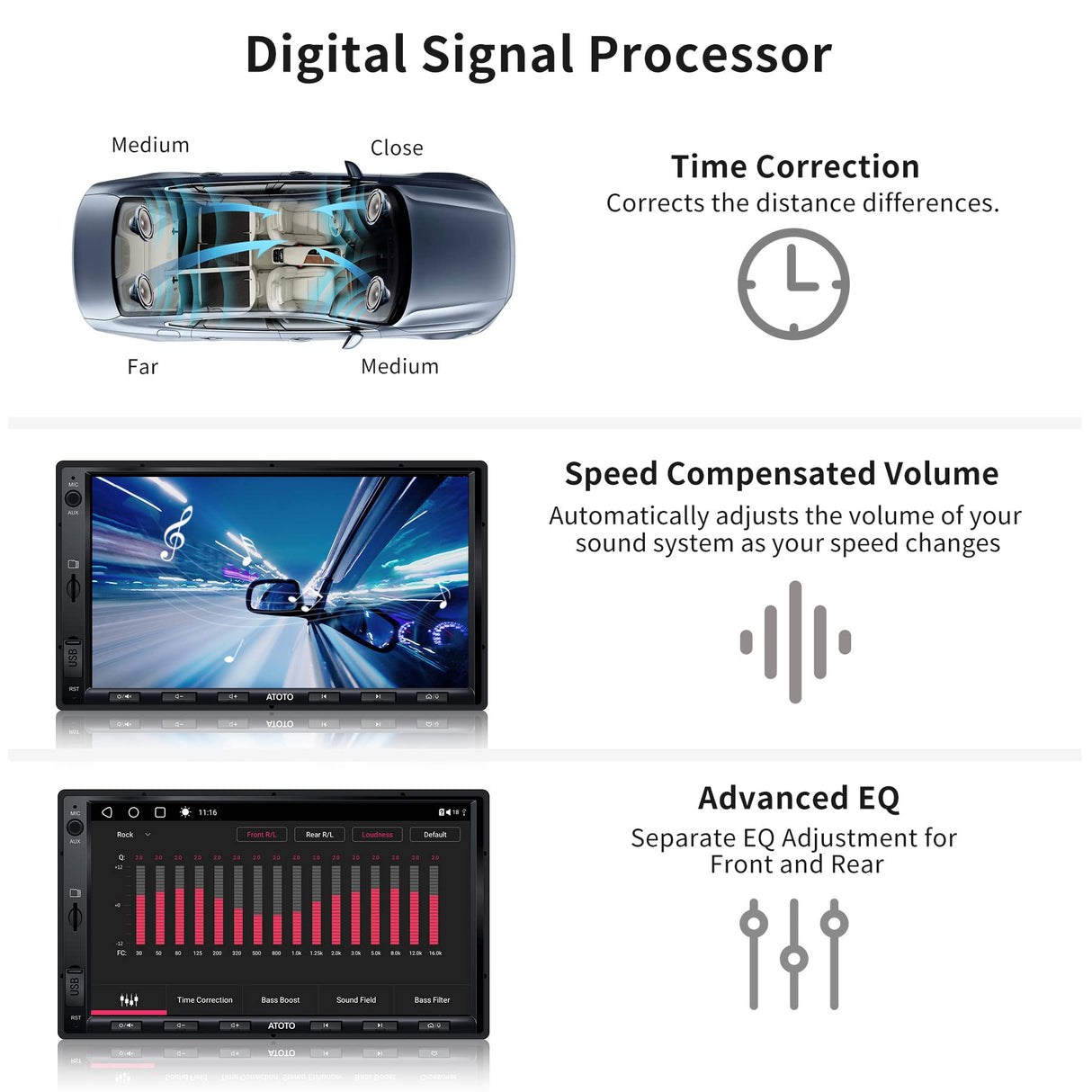

• DSP - preamplifier: the integrated digital signal processor allows for precise equalization setting, signal delay, bass boost, bass filter. Preset 9 EQ modes and 32 adjustable frequency bands (16 bands for the front and 16 for the rear). Maximum BTL amplifier 4 * 45 W built-in with RMS 4 * 24 W (Vcc = 14.4 V, THD = 10%);
• Bluetooth and radio tuner: dual Bluetooth (BT1 5.0 and BT2 4.1). Bluetooth1 is Bluetooth 5.0 with SBC and AAC codec and supports HFP, HSP, A2DP, AVRCP, PBAP protocols; Radio tuner: integrated high-sensitivity FM, AM radio tuner with RDS / RBDS function;

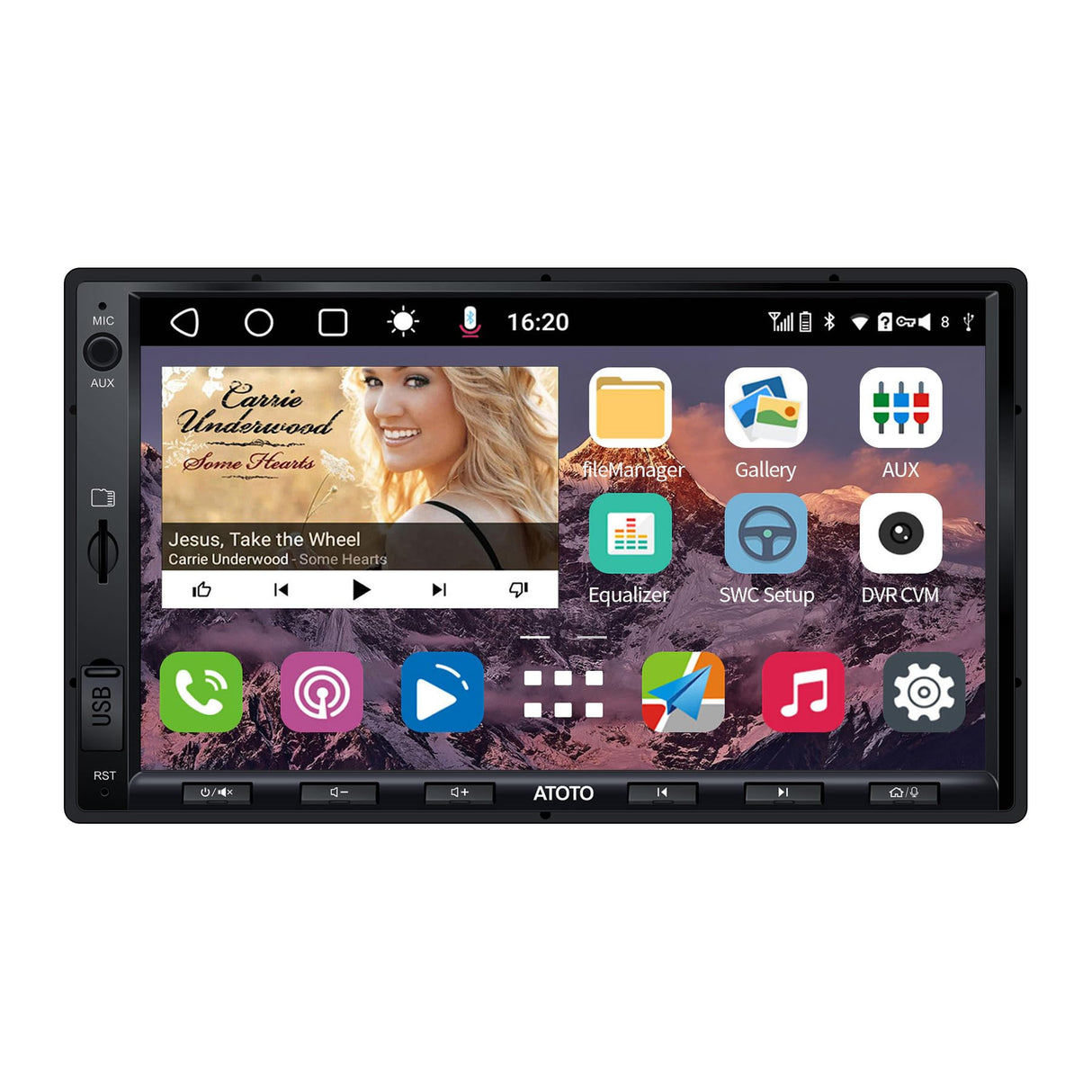

• Screen: 7-inch Full HD capacitive touchscreen 1024 * 600 with IPS screen 600cd/m2;
• GPS - Navigation: the integrated GPS receiver module is installed with an external GPS antenna and the Google Maps app. Users might need to download offline map data for a specific area for offline navigation. Other navigation map apps (Waze, Tomtom, HereWeGo) from the Google Play Store can also be installed;
• Phone mirroring and phone integration link: Phone mirroring - EasyConnect app pre-installed and supports operation with the latest iOS and Android devices (system firmware update may be required). Two options (USB - WiFi) are available for connecting to Android smartphones and iPhones; Phone integration link (Wired/Wireless CarPlay; Wired/Wireless Android Auto) - Seamlessly integrates your smartphone (iPhone and Android) with the built-in display of the S8 and allows you to make phone calls, access your music, and send and receive messages (Note: for wired CarPlay and Android Auto connection on ATOTO S8 series head units, use the original/factory USB cable supplied with the phone).

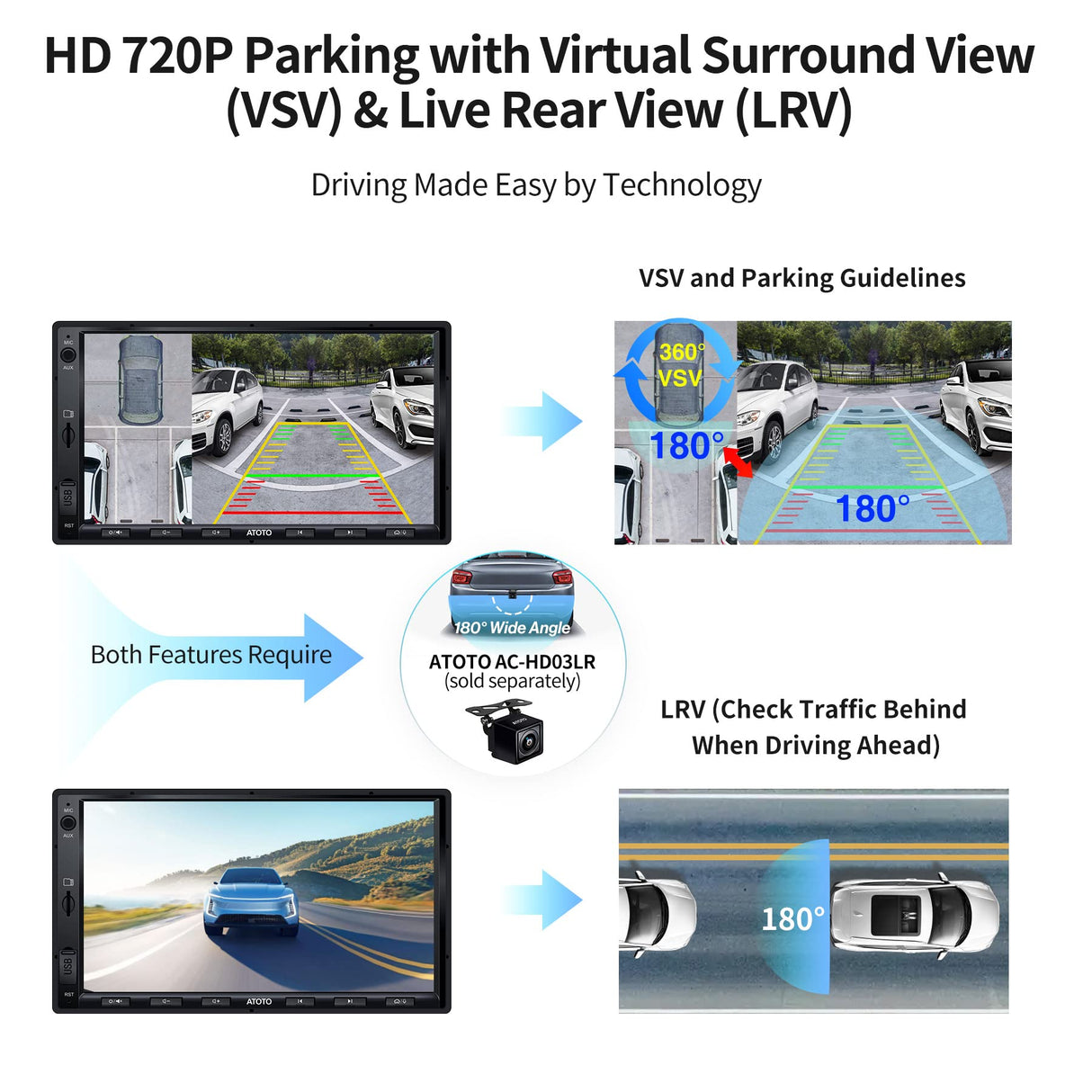

• Some other features:Fast system boot - Starts the car and system access within 2 seconds; Split screen display: allows running a navigation map and another app simultaneously on the same screen; Digital photo frame option - Speed Compensated Volume Control (SCVC) - As speed increases, the volume of the head unit increases by a certain percentage and reduces as you slow down. This compensates for road noise; USB network tethering: sharing phone data with the S8 head unit via USB connection (EasyConnect app); Live RearView (LRV) - Now you can access the rear view even if your vehicle is moving forward. This may remove obstacles such as passengers, headrests, the vehicle roof, and rear pillars, expanding the field of view and providing the driver an unobstructed view of the lanes behind and traditional blind spots

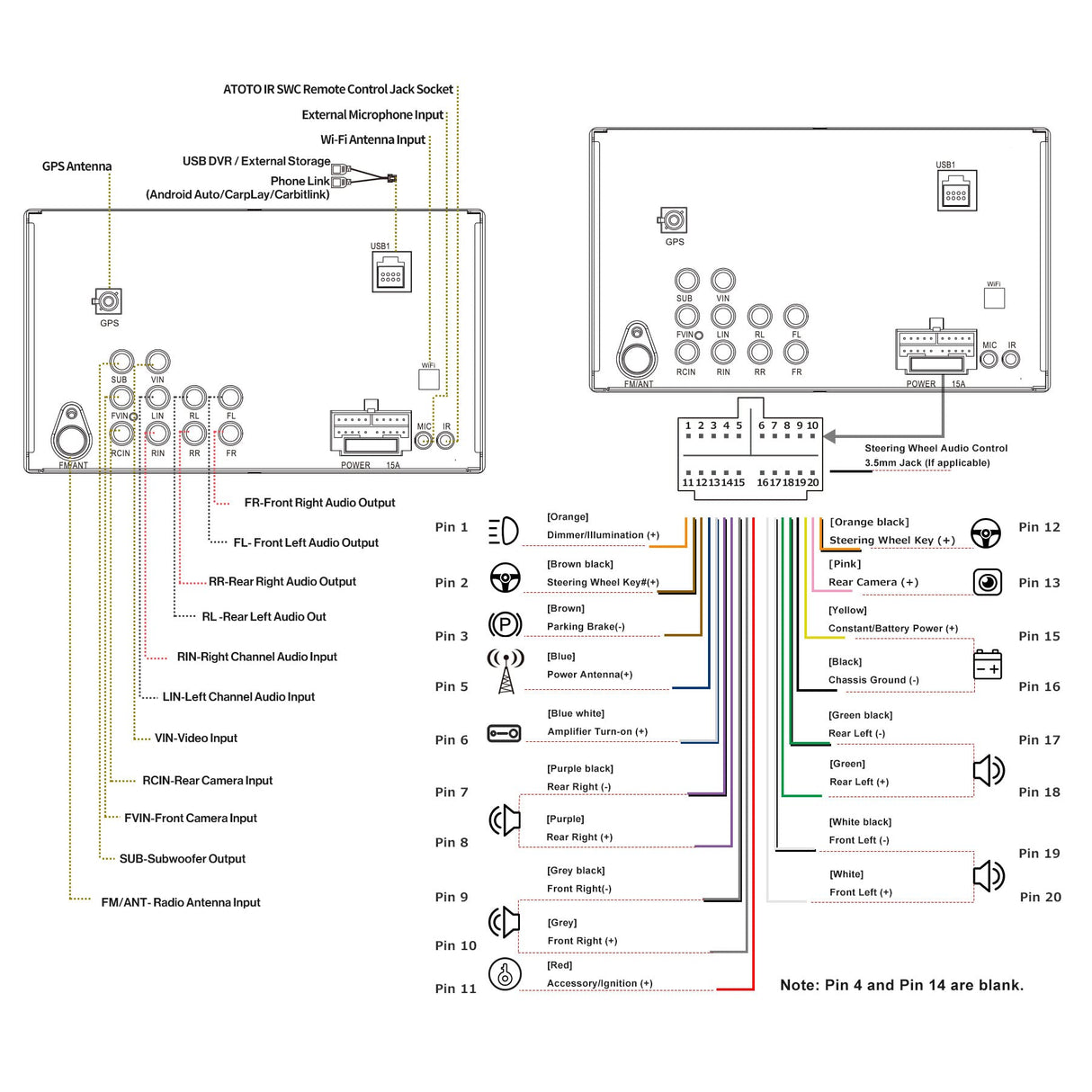

Inputs, outputs, and slots

• AUX audio input (L - R), video; Front camera video input FCAM; Reversing camera input (S8 can process HD 720P video signal. Therefore, a specific HD reversing camera can be connected to S8 for 720P video display); 4-channel RCA audio output (2v) for connecting to factory - aftermarket amplifier; Separate subwoofer output (0.8 V); For S8 standard, no optical SPDIF output or fast charging interface is available; To connect to a headrest monitor, an additional ATOTO USB to HDMI or USB to RCA video output adapter is required (not included)
• One Micro SD slot - for storing media files and can read up to 512 GB memory card; (3 USB) interfaces for data communication, including reading USB drives (reading unlimited external storage devices, including portable SSD) and optional USB devices or phone integration linking (CP -AA);

Vehicle adaptation:

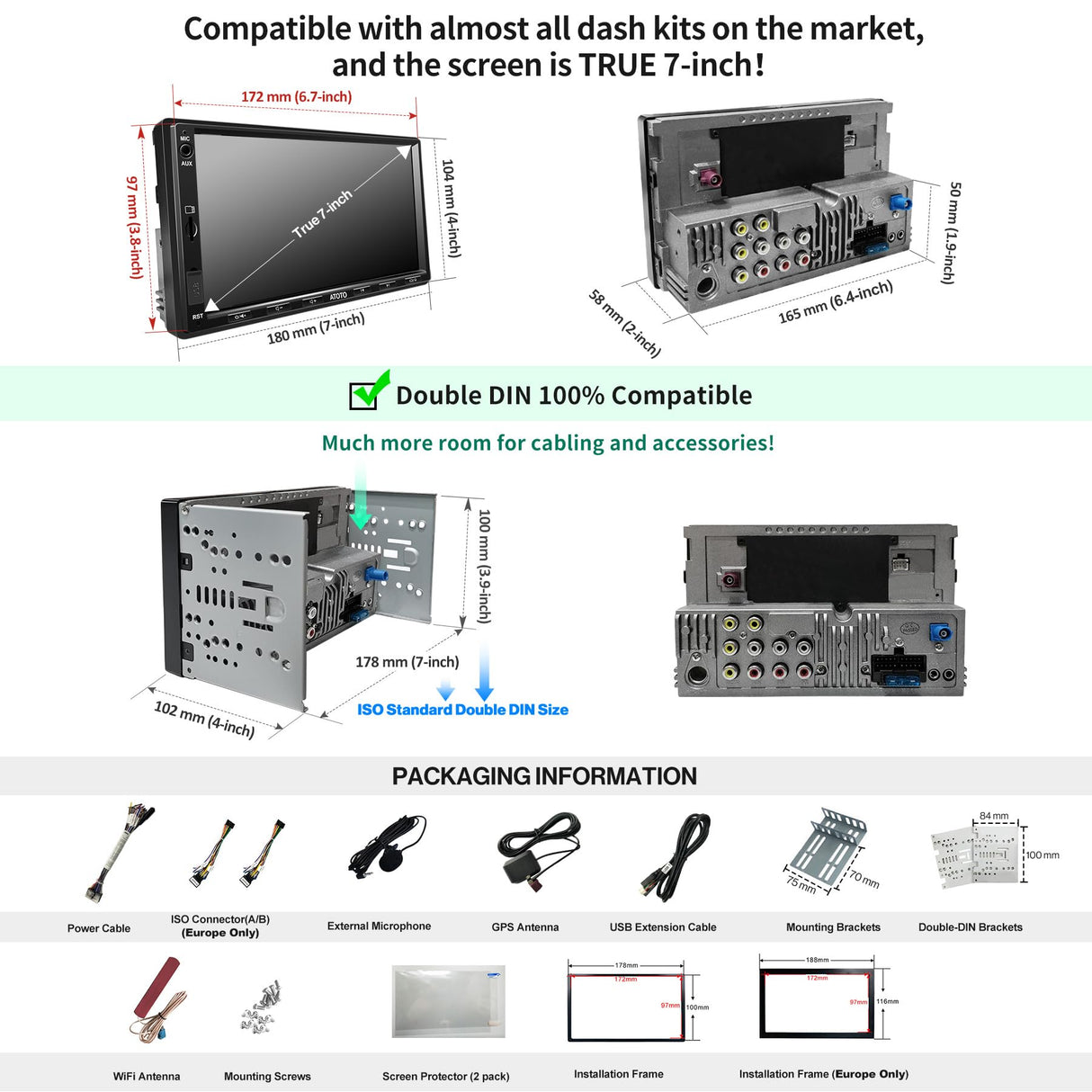

• Most dashboard mounting frame suppliers from North America can provide a double din mounting frame with an opening of 172 mm * 97 mm (Metra dash kit, PAC dash kit, etc.). ATOTO is the first to bring a 7-inch Android car radio with a minimum front panel size of 172 mm * 97 mm. An additional frame adapter to extend its size to 178 mm * 101.5 mm is also included in the package;

Advanced car stereo with Android apps, online music playback, maps, real-time traffic, and connection to external devices for more functions

Internet access and installation of Android apps from Google Play Store

• Compared to S8 Gen1 (produced before January 2021), S8 Gen2 can provide up to 4 options for Internet access. (1). Connect to the phone hotspot via WiFi 2.4Ghz and 5Ghz; (2). Connect to the phone Bluetooth and enable Bluetooth tethering option, (3). Use phone data via USB network tethering function (a special feature of ATOTO. The EasyConnect app is required); (4). The built-in 4G cellular modem allows users to insert a SIM card with a data plan for Internet access and this option is only available on selected S8 models (excluding S8 Standard, Premium);
• Running online maps or streaming online music on the Android car stereo does not require high bandwidth (less than 200 kbps), the Bluetooth tethering connection is able to meet such a demand.
• Compared to WiFi connection, Bluetooth tethering has lower power consumption, so the phone's battery will last much longer while Bluetooth tethering is enabled;
• WiFi connection is simpler as it only requires one step: enable the phone's WLAN hotspot; Bluetooth connection requires 2-3 steps;
• USB network tethering is a new option introduced by ATOTO and allows users to share phone data with S8 via USB connection. This could help save the phone's battery or even slightly increase it; It is sufficient to run the specific EasyConnect application in the background;
• More than 1000 Google Play Store apps have been tested to be installable on the ATOTO S8 series, particularly media-entertainment apps and navigation apps in the "Cars and Vehicles" category. Very few app developers can specify devices-system environments to which they allow their apps to be installed or run, which results in the inability to install or run on an Android car stereo. Note: Some apps are not compatible with S8 (Gen2), for example, Netflix.

Android Car Stereo is not equivalent to putting an Android tablet in the vehicle. The ATOTO S8 has many custom inputs and outputs to work better in the vehicle.

• Connect to a specific ATOTO USB camera on the dash 1080P DVR for previewing and playing recorded video files;
• Connect to a specific ATOTO USB TPMS tire pressure monitoring system. When one or more tires are deflated, a warning will appear on the S8 screen and even emit a beep as a reminder;
• Connect to a backup camera with CVBS and HD video signal output for safe parking;
• Connect your Android/iOS smartphone via USB/WiFi and use EasyConnection to cast what's displayed on the phone to the S8 screen;
• Connect your iOS phone via USB or Bluetooth for wired or wireless CarPlay, Android Auto only works with a wired USB connection, which seamlessly integrates your smartphone (iPhone and Android) with the integrated S8 display and allows you to make calls, access your music, send and receive messages, get directions;
• Connect to an OBD II diagnostic scanner - engine code reader via Bluetooth; Compared to single Bluetooth, dual Bluetooth makes communication tasks between multiple Bluetooth connections more balanced and stable.
• Connect to headrest monitors using the ATOTO video output adapter (AC-AHV68: USB to HDMI adapter; AC-AHV48: USB to RCA adapter; both sold separately) and what is displayed on S8 can be synchronized with headrest monitors.

Dual Bluetooth chip inside, connectable to multiple Bluetooth-based devices, custom Bluetooth 5.0 and voice assistant interface

• Bluetooth 1 functions as a Bluetooth hands-free (call - answer) with A2DP audio streaming function. Contacts - recent records will sync once the smartphone is connected. Supports "Quick Search" and "Add to Favorites" for speed dialing!
• The built-in noise cancellation technology helps to suppress background noise and echo feedback in a hands-free call. You don't have to yell at the car stereo to talk to the other person.
• Bluetooth 2 not only works as Bluetooth Internet tethering, but also allows connection to Bluetooth gamepad (for children in the back seats), Bluetooth OBD2, Bluetooth TPMS, etc.;
• Thanks to the dual Bluetooth inside, the system allows users to connect up to 3 devices simultaneously (one for audio, two for data communication).
• The customized Bluetooth in S8 allows the reactivation of the phone's voice assistant (Siri, Google Assistant) via Bluetooth connection. Thus, users can use a specific button on the screen, on the steering wheel, or on the wireless ATOTO AC-44F5 remote control to send messages, make calls, and control music with your voice. Much safer, very convenient;
