Android ATOTO S8 Lite car stereo system - Your versatile driving companion

Product information

* The instructions contained in the package have not yet updated the wireless Android Auto information, but the main unit you receive already supports this function.

• Product version: S8 Standard (Gen2); Model number: S8G2113LT (2GB/32GB); Mounting style: IAH10D (integrated main unit and adaptive 10.1-inch display unit);
• System information. SoC chip: Processor: UIS9863 Octa-Core 1.6 GHz (ARM Cortex A55); GPU: PowerVR GE8322. System version: ATOTO AICE UI 11.0, which is developed and customized based on Android Q (10.0); System language: English, German, French, Italian, Spanish, Portuguese, Japanese, Russian, Arabic, Polish, Korean, Dutch, Thai, Turkish, Ukrainian, Hebrew, Greek, Hungarian, Indonesian, Vietnamese, and Chinese.
• DSP / preamplifier: the integrated digital signal processor allows you to accurately adjust the equalization, signal delay, bass boost, and bass filter. Preset 9 EQ modes and 32 adjustable frequency bands (16 bands for the front and 16 for the rear). Built-in BTL Max 4 * 45 W amplifier with RMS 4* 24 W (Vcc = 14.4 V, THD = 10%);
• Bluetooth and Radio Tuner: Dual Bluetooth (BT1 5.0 and BT2 4.1). Bluetooth1 is Bluetooth 5.0 with SBC codec, and it supports HFP / HSP / A2DP / AVRCP / PBAP protocols; Radio tuner: Built-in high-sensitivity FM / AM radio tuner with RDS / RBDS function;
• Display: 10.1-inch 1280 * 720 Full HD capacitive touchscreen with 5-touch and 600cd/m2 IPS display;
• GPS / Navigation: a built-in GPS receiver module with an external GPS antenna and the Google Maps app is installed. Users may need to download offline map data for a specific area for offline navigation. Other map/navigation apps (Waze, Tomtom, HereWeGo) from the Google Play Store can also be installed;
• Phone mirroring and phone integration link:Phone mirroring - Pre-installed EasyConnect application supporting operation with the latest iOS and Android devices (a system firmware update may be required). Two options (USB / WiFi) are both available for connection to Android smartphones and iPhone; Phone integration link(CarPlay wired/wireless; Android Auto wired/wireless) - It integrates your smartphone (iPhone and Android) with the S8's integrated display and controls via USB, allowing you to make phone calls, access your music, send and receive messages, get directions.
• Some other features: Quick system start - Start the car system and access within 2 seconds; Split screen display - Simultaneously run a navigation map and another application on the same screen; Digital photo frame option - Speed-compensated volume control (SCVC) - As you increase speed, the unit's volume increases by a certain percentage, and as you slow down, the volume decreases to compensate for road noise; USB network tethering - shares your phone's data with the S8 head unit via a USB connection (EasyConnect application); Live rear view (LRV) - You can now access the rear view even if your vehicle is moving forward. This could eliminate obstructions from passengers, headrests, and the vehicle's roof and rear pillars, thereby increasing the field of view and allowing the driver a clear view of the rear lanes and traditional blind spots.

Inputs, outputs, and locations

• AUX audio input (L / R) / video; front camera FCAM video input; rear camera input (S8 can process the HD 720P video signal. Therefore, you can connect a specific HD rear camera to the S8 for 720P video display); RCA 4-channel Audio output (2v) for connection to a factory/aftermarket amplifier; Separate subwoof output (1v); For S8 Lite, there is no SPDIF optical output and fast charging interface; additionally, an SD card slot and a wireless steering wheel control interface are also not available. To connect to a headrest monitor, you need to get an additional ATOTO USB to HDMI or USB to RCA video output adapter (not included).
• (2 USB interfaces)for data communication, including USB drive play (unlimited external storage devices playback, including a portable SSD) and optional USB devices, orPhone integration link(CP / AA);

Vehicle fit:

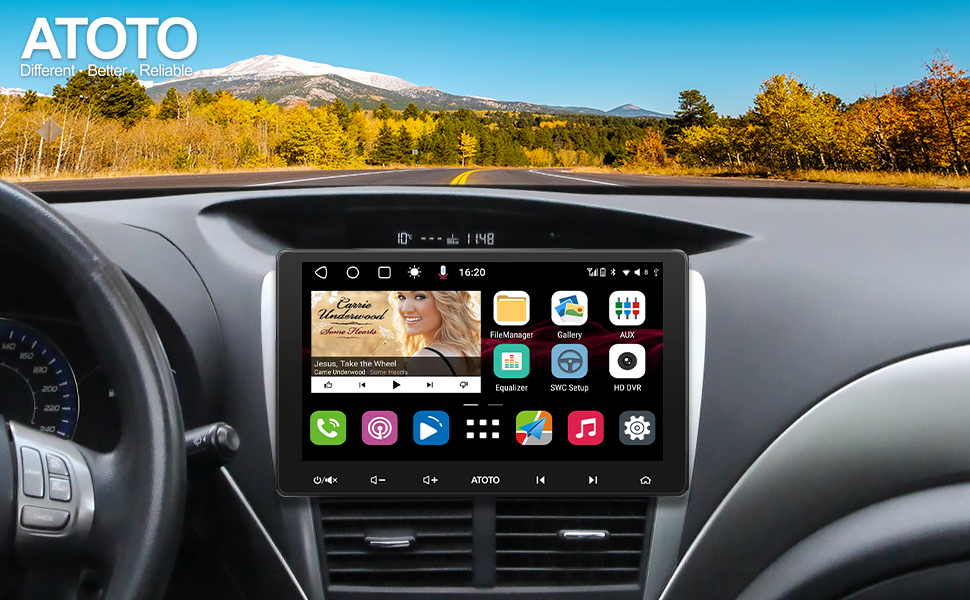

• This model features a 10.1-inch display and an adaptive single DIN and double DIN head unit housing. The dimension of its head unit housing is172 mm x 95 mm, and the dimension of its 10.1-inch screen is258 mm x 160 mm. It can be installed in most vehicles with a standard double DIN dashboard opening. For some vehicles, the edge of the 10.1-inch screen part may block the vent, emergency switch, or other buttons around the double DIN opening, causing inconvenience. Make sure yours will not have such issues, or you can accept them. Additionally, it applies the IAH10D style (integrated and adaptive head unit of a 10.1-inch screen), working with the vehicle-specific YO-FUNG installation dashboard kit (wire harness, data interface, mounting kit) for a more integrated factory and OEM stylish look. Over 200 vehicle models have the capability to complete the OEM factory installation type.

More than just a car radio - Install Android apps and connect to various external devices to extend functions

Access the internet and install Android apps from Google Play Store

• Compared to the S8 Gen1 (manufactured before January 2021), the S8 Gen2 can provide up to 4 Internet access options.(1). Connect to the phone hotspot via 2.4 GHz and 5 GHz WiFi; (2). Connect to the phone via Bluetooth and enable the Bluetooth tethering option, (3). Use phone data via the USB tethering function (an exclusive ATOTO feature. EasyConnect application is required); (4). The built-in 4G cellular modem allows users to insert a SIM card with a data plan for Internet access, and this option is only available on certain S8 models (except for S8 Standard, Premium, Lite);
• Running online maps or streaming online music on the Android car stereo does not require high bandwidth (less than 200 kb/s), Bluetooth connection can handle such a demand.
• Compared to the WiFi connection, Bluetooth tethering has lower power consumption, so the phone battery will last much longer as long as Bluetooth tethering is enabled;
• WiFi connection is easier as it only requires one step: turn on your phone's WLAN hotspot; Bluetooth connection requires 2 to 3 steps;
• USB network tethering is a new option introduced by ATOTO, allowing users to share phone data with S8 via a USB connection. This could help save phone battery, or even boost it slightly; You only need to run the specific EasyConnect app in the background;
• More than 1000 apps from Google Play Store have been tested to be installable on ATOTO S8 Series, especially multimedia/entertainment apps and navigation apps in the Auto & Vehicles category. Very few app developers may specify device/system environments allowed to install or run their apps, which leads to the inability to install or operate on an Android car stereo.
• Important: Some video streaming services (Netflix, AMZ Prime, Disney+, etc.) do not support MirrorLink.

Android Car Stereo is not equivalent to placing an Android tablet in the vehicle. The ATOTO S8 features many customized inputs and outputs to function better in the vehicle.

• Connect to a specific ATOTO USB 1080P DVR camera for on-dash preview and playback of recorded video files;
• Connect to a specific ATOTO USB TPMS tire pressure monitoring system. When one or more tires are under-inflated, it will display a quick warning on the S8 screen and even emit a quick tone as a reminder;
• Connect to a rearview camera with CVBS and HD video signal output for safe parking;
• Connect to your Android/iOS smartphone via USB/WiFi and use EasyConnection to stream what's displayed on the phone on the S8 screen;
• Connect to your iOS phone via USB or Bluetooth to run wired or wireless CarPlay; Android Auto only works with a wired USB connection, seamlessly integrating your smartphone (iPhone and Android) with the S8's built-in screen, allowing you to make phone calls, access your music, send and receive messages, and get directions;
• Connect to an OBD II diagnostic scanner/engine code reader via Bluetooth; Compared to single Bluetooth, dual Bluetooth makes communication tasks between multiple Bluetooth connections more balanced and stable.
• Connect to headrest monitors using the ATOTO video output adapter (AC-AHV68: USB to HDMI adapter; AC-AHV48: USB to RCA adapter; both sold separately), and what's displayed on the S8 can be synchronized with the headrest monitors.

Notice:

• Optional parts for working with ATOTO S8 (Gen2) Lite (sold separately): 1. ATOTO AC-44P2 1080P DVR camera on the dashboard; 2. ATOTO AC-4450 Bluetooth OBD II scanner/reader; 3. ATOTO AC-HD02LR HD live rear-view camera or AC-HD03LR wide-angle HD rear-view camera (for Virtual Surround View); 4. ATOTO AC-UTP1 USB TPMS (tire pressure monitoring sensor); 5. ATOTO video output adapter (AC-AHV68: USB to HDMI adapter; AC-AHV48: USB to RCA adapter); 6. ATOTO CA-AEC01 car amplifier for your ATOTO car radio. Much more powerful than the built-in amp, it significantly boosts your audio experience; Some of them need to be connected before installation; For more accessories, please visit the ATOTO brand store on Amazon.

Two Bluetooth chips inside, connectable to more Bluetooth devices

• Bluetooth 1 works as Bluetooth hands-free (call/response) with A2DP audio streaming function. Contacts/recent records will be synced once the smartphone is connected. Supports "Quick Search" and "Add to Favorites" for fast dialing!
• The built-in noise suppression technology eliminates background noise and echo during a hands-free call. You don't have to shout at the car radio to talk with the other person.
• Bluetooth 2 functions not only as a Bluetooth Internet connection but also allows connection to a Bluetooth game controller (for kids sitting in the back), Bluetooth OBD2, Bluetooth TPMS, etc.
• Due to the dual Bluetooth inside, the system allows users to connect up to 3 devices simultaneously (one for audio, two for data communication).
• The custom Bluetooth of the S8 Lite allows waking the phone's voice assistant (Siri, Google Assistant) via Bluetooth connection. Thus, users can use a specific button on the screen, a steering wheel control to send messages, make calls, and control music with your voice. Much safer, much more convenient;
