ATOTO Car Stereo, Car Audio, GPS Navigation, Wireless Carplay Adapter

Free shipping & Tax included

Arrive within 7days learn more

ATOTO AC-HD02LR 720P Rearview Camera with Live Rearview, HD Picture Quality, Night Vision/Waterproof, Compatible with ATOTO F7 / A5 / A6 / S8 / X10 Series. Not Compatible with P5/P8/P9

$54.90 CAD $69.90
Free shipping.
Coupon

30 Day Price Guarantee

  • 30 Days Hassle-Free Returns
  • Shipping from Canadian Warehouse (3-7 Days Delivery)
  • Found a lower price? Contact us, and we’ll match it!

1 Year + 180 Days Warranty

We offer a comprehensive warranty on all of our products to give you peace of mind during use.

  • Warranty Period: This product comes with a 12-month standard warranty.
  • Extended Warranty: Purchasing on our official website allows you to register directly for an extended warranty, adding an extra 180 days of coverage.

For more details, please visit our [Warranty Policy].

After purchasing, please make sure to [register your product] to activate your warranty coverage.

Free Shipping

We offer free shipping on all orders, with delivery typically within 7 days.

  • Free Shipping: All orders are shipped free of charge and will arrive within 7 days.
  • Return Policy: If you're not completely satisfied with your purchase, you have 30 days to return or exchange the product.

For full details, please visit our [Shipping Policy] and [Return Policy].

Features

  • ATOTO AC-HD02LR 720P Rearview Camera with Live Rearview, HD Picture Quality, Night Vision/Waterproof, Compatible with ATOTO F7 / A5 / A6 / S8 / X10 Series. Not Compatible with P5/P8/P9

  • HD 720P Rear-view Backup Parking Assist Camera, which can output 720P HD video signal. Special wiring design plus system firmware support allows user to have a live rearview when vehicle is moving ahead

  • It only works on selected ATOTO car stereos F7 / A5 / A6 / S8 / X10 Series and the video image quality is much better than traditional cameras that output CVBS signal type. It is not compatible with other car stereo brands!

  • If you own ATOTO S8 (Gen2), and it comes with virtual surround view feature, we highly recommend ATOTO AC-HD03LR camera instead.

  • It does not work on the ATOTO P5 series, P8 series, P9 series.

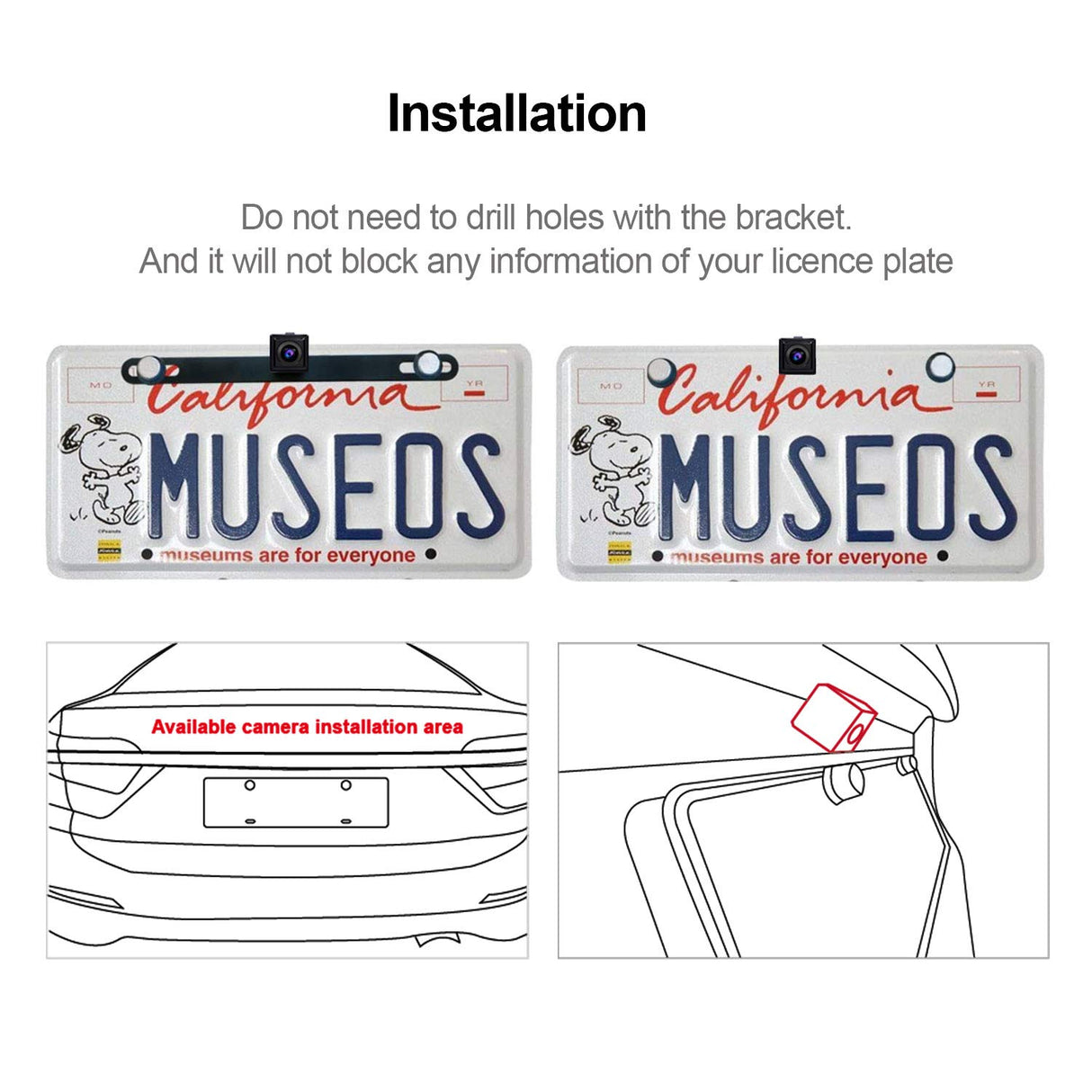

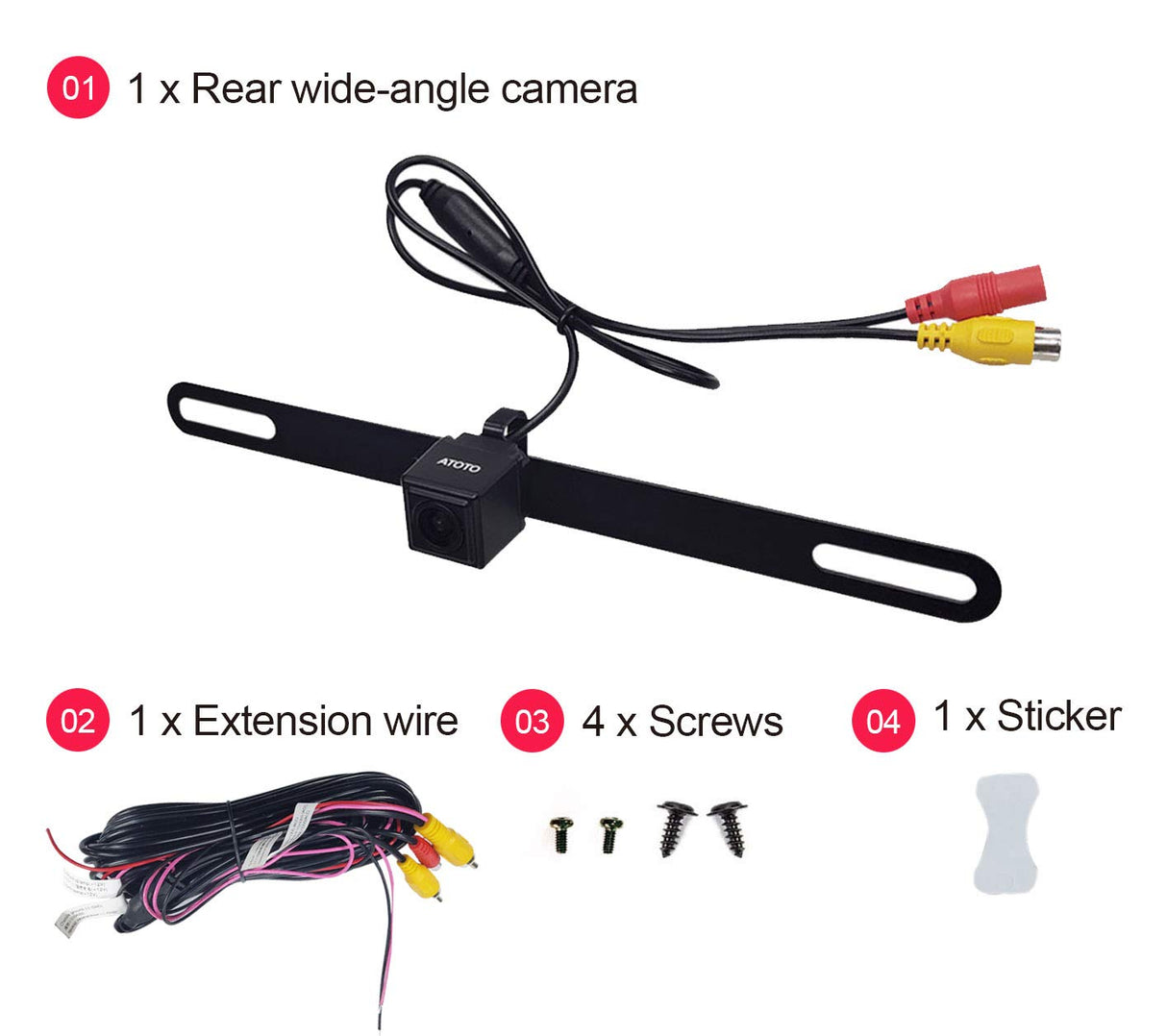

  • HD Rear View Backup Parking Assist Camera with Installation Cables. Easy to install: 2 Installation options, you could choose bracket mounting or flush mounting as per your case.

Specifications

Specification Value

Host Technology Platform Name

F7-Pro
Host Technology Platform Code F7
Version Configuration in English Pro
Operating System Type Linux
Operating system version 4.9
External SD storage support Max 512GB
External USB storage support Max 2TB
Main control chip model LY8368
Installation Size Classification Double-Din
Storage NO
Memory NO
Built-in communication module NO
WIFI hotspot connection NO
Screen material IPS LCD
Default Bluetooth BT 4.2, supports HFP,HSP,A2DP,AVRCP,PBAP; SBC Codec
Secondary Bluetooth NO
Screen Size 7.0
Wired CarPlay YES
Wireless CarPlay NO
Wired Android Auto YES
Wireless Android Auto NO

Reviews (124)

Customer Reviews

Based on 124 reviews
58%
(72)
42%
(52)
0%
(0)
0%
(0)
0%
(0)
A
Ahmed E.
Excellent backup camera

Installed this camera on a 2011 Honda Odyssey with the S8 Gen2 premium head unit. The installation was fairly easy but time consuming because I'm not an expert by any means. The camera came with plenty of wire to go from back of vehicle to front hiding it behind the plastic trim.Things to consider for installation:1. You have to remove some of the interior trim if you want to do a clean install.2. You have to do some wire splicing.3. If you're inexperienced like me, watch YouTube videos BEFORE you start the install.My vehicle already had a stock backup camera but the Atoto camera is much better quality. At first I did not like the simulated panoramic view but after updating the firmware of my head unit I got an option to disable this feature in the general settings.If you don't have that option, try going to settings > tap System 4 times > enter the code 3368 > there should be an option to disable this feature from there.Both options shown in pictures before and after.If this doesn't work for you, contact Atoto support and they will give you instructions relevant to your unit, that's how I got mine!

2
240gordie
Installed on my Ford F350.

Install so I would be able to see my hitch when hooking up trailers. Simple install to go along with my Atto A6 head unit.

R
Rick P.
nice easy set up for dual use back up & rear viewing while driving forward

it's a great camera very clear picture, only at times it flickers lines & have not pinpointed the cause . I know it's not bad connections just every once in awhile I get these annoying lines flickering through my radio screen!! anyone else have this issue? It's hardwired through an atofo f7 double din radio.

B
Bill
Easy Installation

I put this camera on the back of my RV. It works great, but my only comment is that the images appear smaller and further away than live or in a rear view mirror.

A
Amazon Customer
Make sure you connect the backup sensing wire on your ATOTO.

This is a great little camera that doesn't break the bank. Video quality is very good and manufacturing quality is outstanding. I would recommend you put the exposed wire in a split wire loom to prevent damage in the future.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • Klarna
  • Afterpay

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Applicable Headunit models:

  • This AC-HD02LR only works with the A6 KarLink / Performance Versions, F7 Series, and S8 Series head-units. It is NOT compatible with A6 Y, SA102, or any other car stereos. Besides, S8 models manufactured before Jan. 2021 (also known as S8 Gen 1) can support AC-HD02LR, but the system firmware update is required before the LRV feature can work properly. See the rearview camera comparison table below for more details.

Specifications:

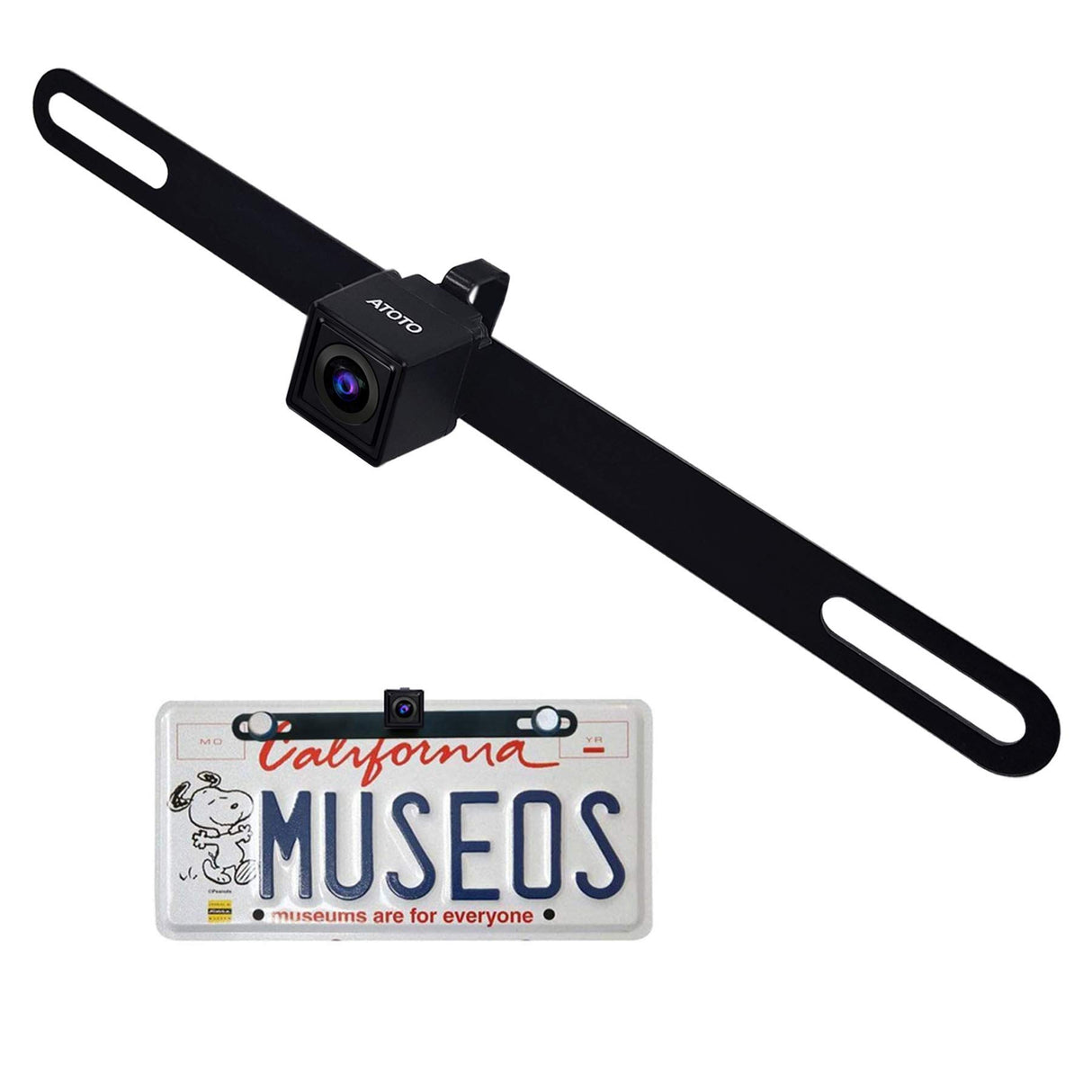

  • Product Model: AC-HD02LR (North American version, with a license plate mounting bracket)
  • Image sensor format: 1/2.9” CMOS
  • Pixels:1280(H)x720(V)
  • White balance: automatic
  • Backlight compensation: Yes
  • Noise reduction: 3D DNR
  • Video Frame rate: 720P@30FPS
  • Video Signal Out:Analogue HD signal, 1.0 Vp-p / 75Ω
  • Working Voltage: DC 12V
  • Working Current: 130mA~150mA
  • Working Temperature:-30℃~+80℃ (-22°F ~ 176°F)
  • Rear-view guideline: Not built-in, provided by Car stereo system
  • Waterproof Rate: IP67
  • Night-vision: YES

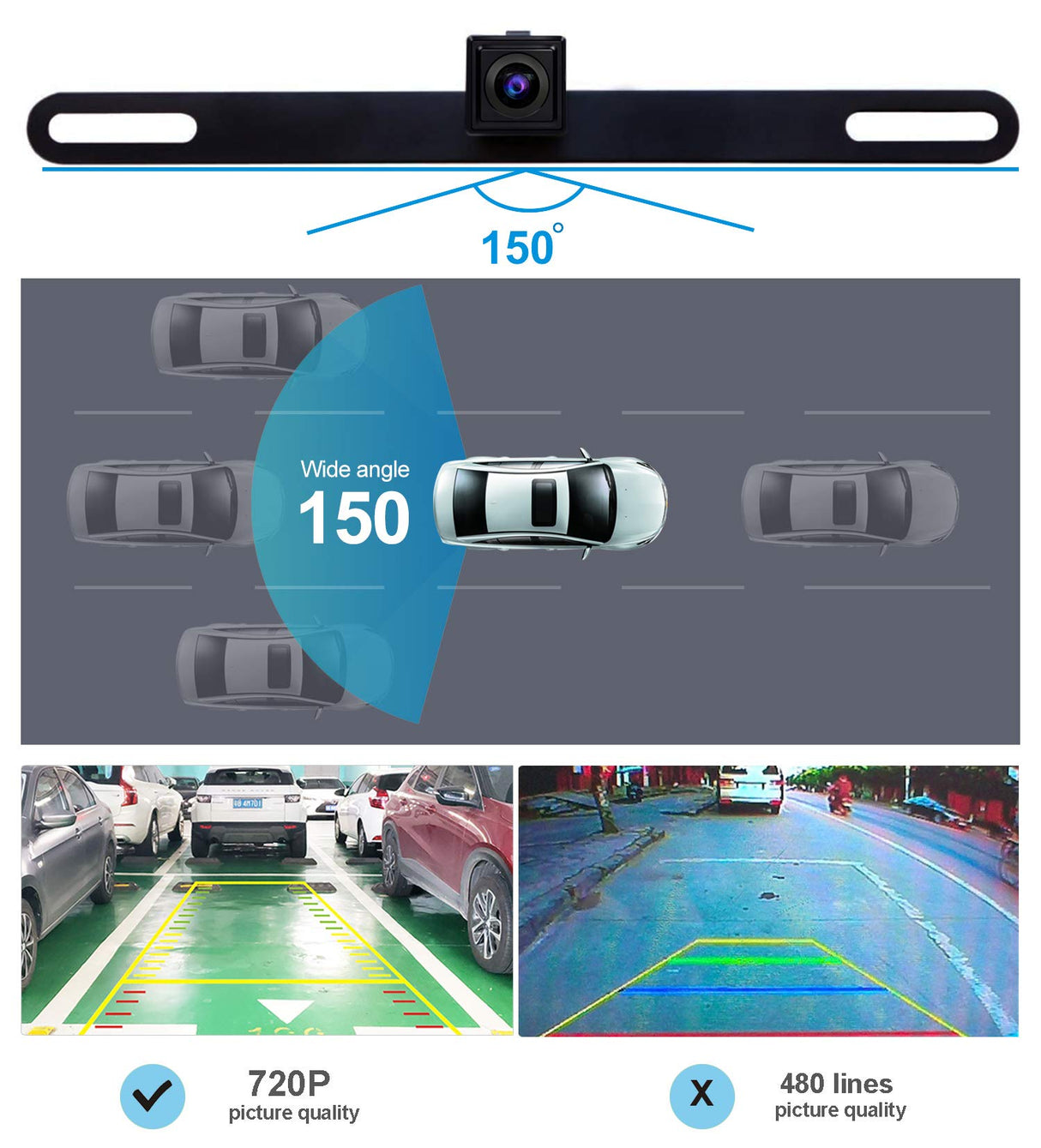

  • Lens Viewing Angle: 150 Degrees
  • Powering method: powered by ATOTO Headunit or vehicle's Accessory (ACC).
  • Rearview Image Access: (1).When vehicle is in reverse gear, the rearview will display on the headunit display; (2). Manually run Rearview app when vehicle is moving ahead, or use steering wheel keys (if applicable). For selected S8 (Gen2) modes that come with Hand Gesture operation, gesture control is available;

2

HD 720P Rear-View Video Signal Output

Traditional car stereos can only take and display 400-600 lines CVBS rearview video signal. Working with specific ATOTO head-unit models, The AC-HD02LR can output an HD 720P rearview video signal, and you can have an HD color display on the ATOTO headunit. Say goodbye to the snowy static picture screen when reversing a vehicle.

3

How does the LRV feature Work?

Live RearView (LRV) Feature - Access Rearview even if the vehicle is moving ahead. This could remove obstructions of passengers, headrests, and the vehicle’s roof and rear pillars, increasing field of view and allowing the driver an unimpeded view of the lanes behind and traditional blind-spots. To use this feature, special wiring is required, see below for reference.

Easy Installation, compatible with selected ATOTO S8 (Gen2) models

4

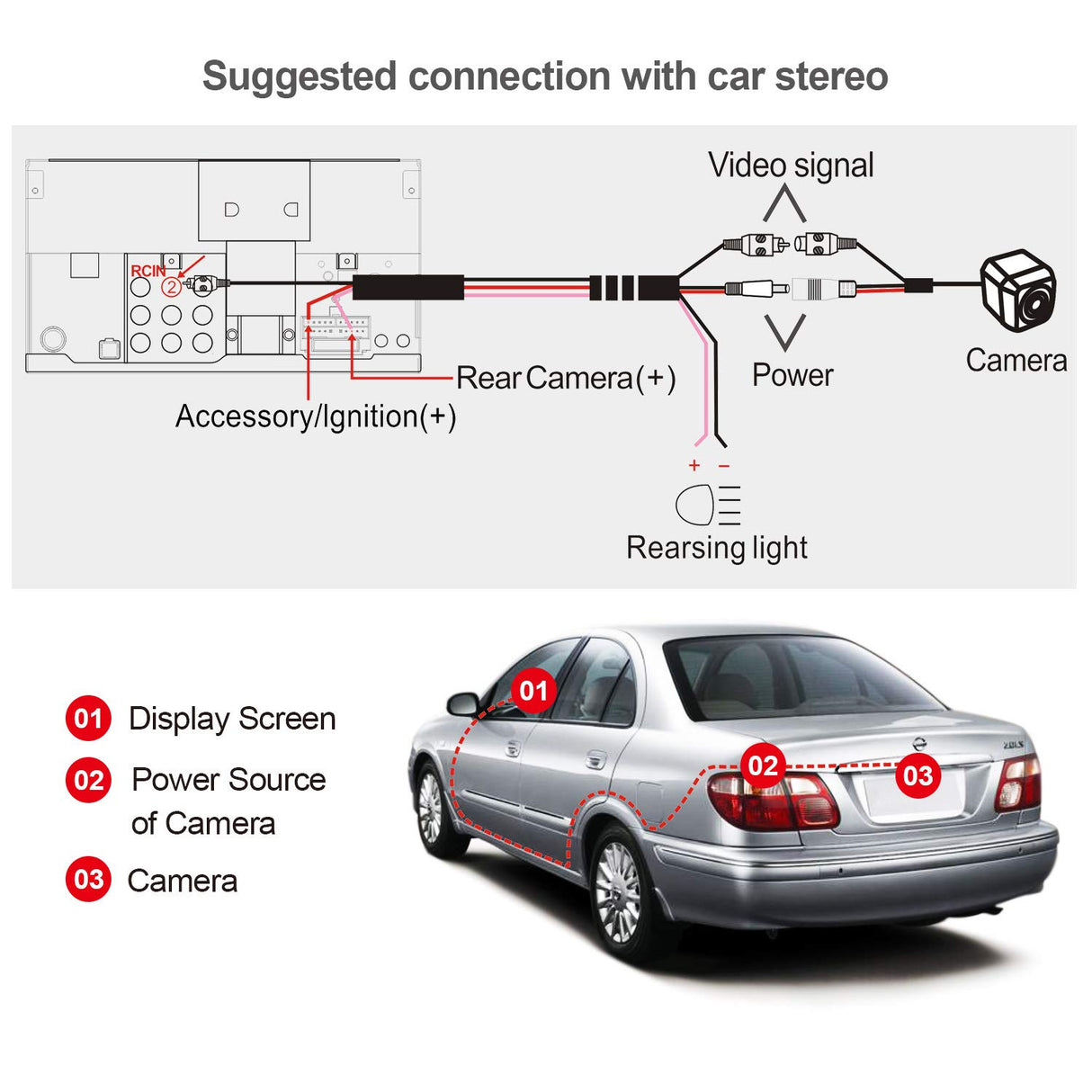

Unlike traditional backup cameras that are powered up by reversing lamp of the vehicle, AC-HD02LR is rewired to be powered by a head-unit or vehicle's ACC power (Accessory) wire. And built-in hardware in selected ATOTO head-unit is required to make sure camera's video signal can be read and displayed without putting your vehicle into reverse gear.

1
hd02lr
hd03lr
AC-4486 Rearview Camera
AC-HD02LR Rearview Camera
AC-HD03LR Rearview Camera
Product Model AC-4486 AC-HD02LR AC-HD03LR
Lens Viewing Angle 150 Degrees 150 Degrees 180 Degrees, supporting VSV
Pixels 600 Lines 1280(H)x720(V) (HD 720P) 1280(H)x720(V) (HD 720P)
Live Rearview (LRV) Wiring Support NO YES YES
Compatibility with A6 PF YES YES NO
Compatibility with A102/YS102SL YES NO NO
Compatibility with F7 YES YES NO
Compatibility with S8 YES YES YES
Waterproof YES YES YES
Night-vision YES YES YES
